Dedicated Micros TransVu Operation Manual page 45

Telemetry Control
The TransVu unit requires an adapter (Amplicon 485HF9) for telemetry control, which is available from
www.amplicon.co.uk. This converts the RS232 signal to RS485, enabling the TransVu unit to communicate
directly with a single dome camera.
EN
GND
B
Amplicon
A
485HF9
www.amplicon.co.uk
A'
Part No. 90986433
Dome
B'
Ground
GND
5-12 VDC
VDC
Power out of TransVu 12V DC

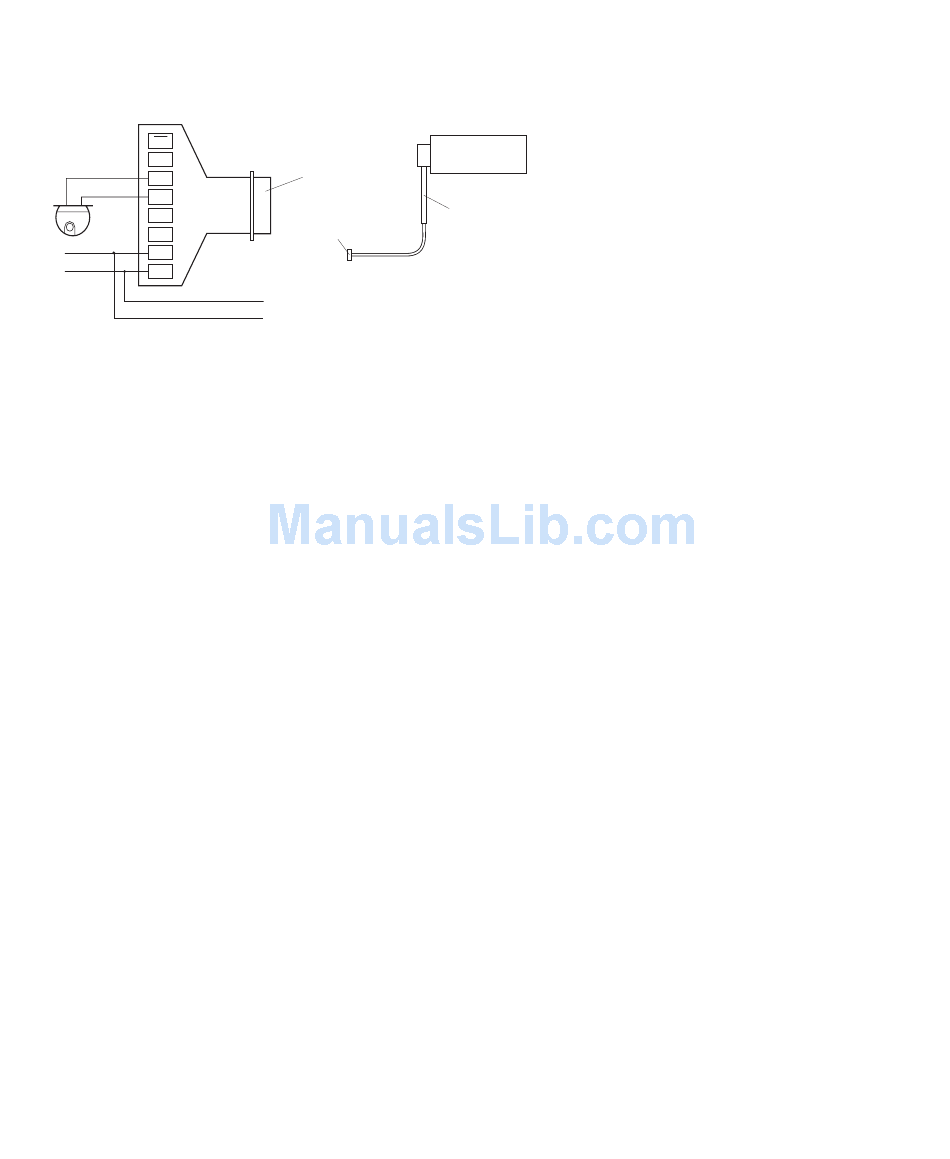

To connect a camera via the adapter:
1 Enable Pelco-P in serial port telemetry
2 Set Com 1 or 2 to 9600 Baud, 8 bit polarity, 1 stop bit, flow - none.
3 Save settings
4 Enter the Camera setup menu. Enable 485 Telemetry control for the designated camera.
5 Save settings.
6 Reset the TransVu unit. Once the unit reinitialises, PTZ control will be available.
Audio Recording
TransVu supports two audio inputs which can allow for external audio equipment to be connected. This allows
the Operator to communicate via the Viewing software across the network to the camera location.
The audio is independent of the video inputs which means any camera can have associated audio
equipment, e.g. Intercom system. The audio can also be recorded alongside the video to allow a
simultaneous review of both.
To enable the audio to be recorded:
1. Select Configuration Pages > System > Audio Recording
2. Enter the Title for Audio channel 1
3. Tick the Enabled box to enable recording of audio channel 1
5. Enter the Title for Audio channel 2
6. Tick the Enabled box to enable recording of audio channel 2
8. Press the disc icon to save the settings
44
9 Way
female
'D' type
9 Way male
'D' type
on TransVu
Ground of TransVu
TransVu
DM TransVu Harness
(DM/HARN/TRV)
Com
1 or 2
Dedicated Micros © 2006
