EP812 Pentium
HDD Activity LED
This connector extends to the hard drive activity LED on the
control panel. This LED will flash when the HDD is being
accessed. Pins 13 & 14 of CN11 connect the hard disk drive
and the front panel HDD LED. Pins 13 is -, and pin 14 is
assigned as +.

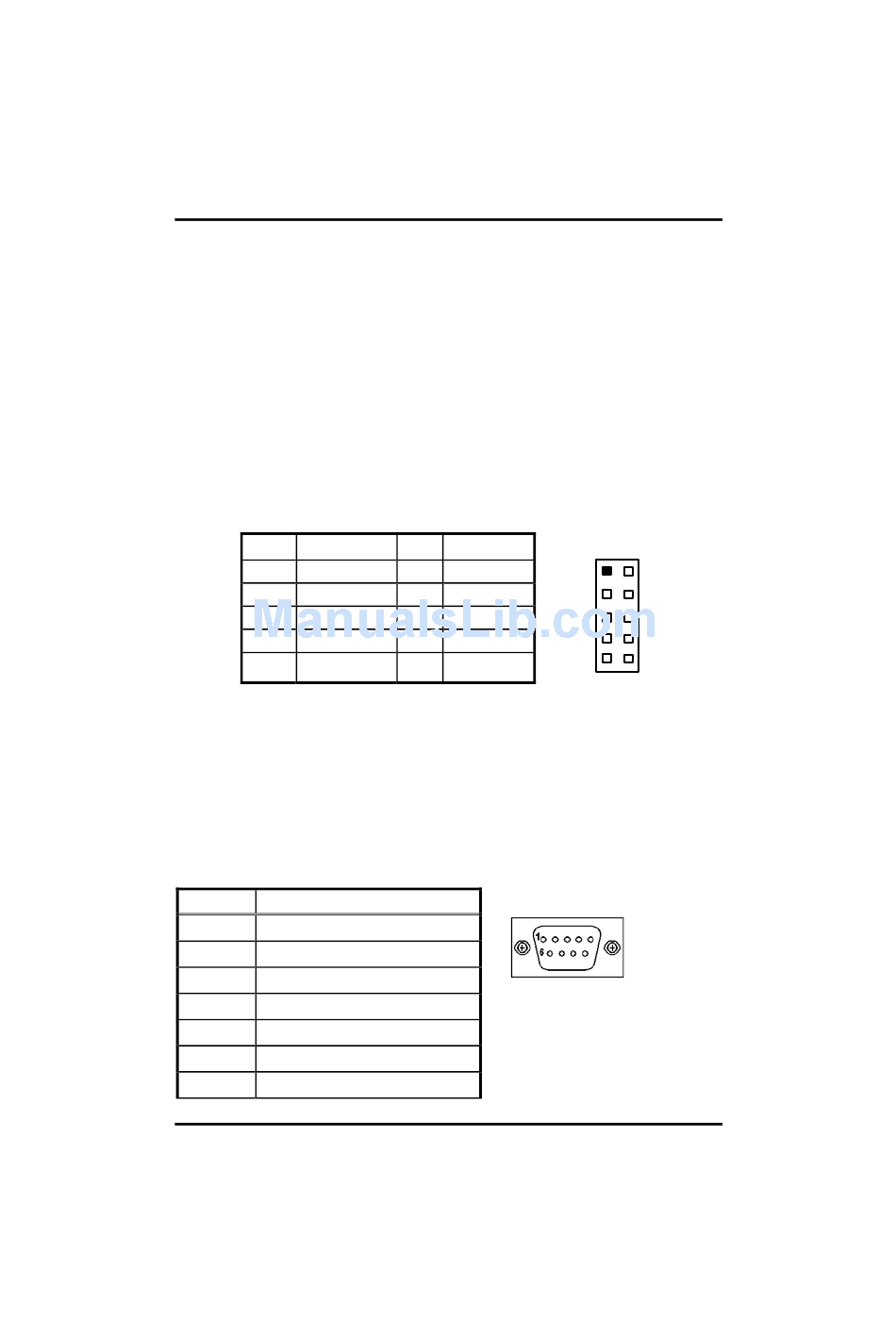

2.4.7 Audio Connector: CN12

The EP812 Series supports audio interface. CN12 is a 10pin-
header connector commonly used for the audio.
Pin Signal
MIC-IN
1
Line In L
3
Line In R
5
Audio Out L
7
Audio Out R
9
2.4.8 Serial Port Interface: CN13, CN18
COM1 Port Connector: CN18
The connector, COM1, is a DB-9 connector, and the following
table shows the pin assignments of this connector.
Pin Signal Name
1 DCD, Data carrier detect
2 RXD, Receive data
3 TXD, Transmit data
4 DTR, Data terminal ready
5 GND, ground
6
DSR, Data set ready
7 RTS, Request to send
Hardware Description
®
M All-in-One Capa Board User's Manual
Pin Signal
GND
2
GND
4
GND
6
GND
8
GND
10
COM1
2
1
3 4
6
5
8
7
9
10
19
