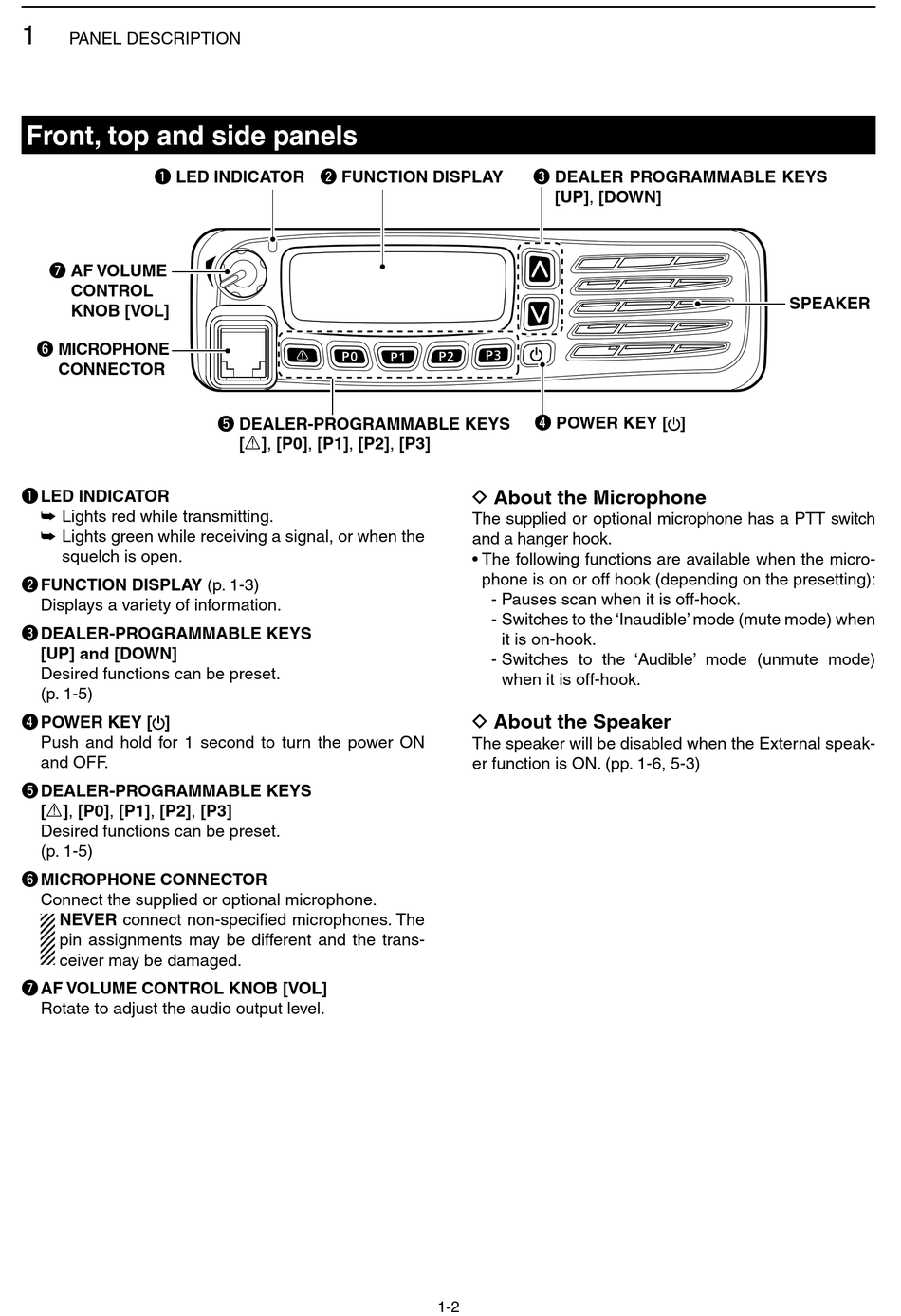

PANEL DESCRIPTION
Front, top and side panels
q LED INDICATOR
u AF VOLUME
CONTROL
KNOB [VOL]
y MICROPHONE
CONNECTOR
q LED INDICATOR
Lights red while transmitting.
➥
Lights green while receiving a signal, or when the
➥
squelch is open.
w FUNCTION DISPLAY (p. 1-3)
Displays a variety of information.
e DEALER-PROGRAMMABLE KEYS
[UP] and [DOWN]
Desired functions can be preset.
(p. 1-5)
r POWER KEY [ ]
Push and hold for 1 second to turn the power ON
and OFF.
t DEALER-PROGRAMMABLE KEYS
[R], [P0], [P1], [P2], [P3]
Desired functions can be preset.
(p. 1-5)
y MICROPHONE CONNECTOR
Connect the supplied or optional microphone.
NEVER connect non-specified microphones. The
pin assignments may be different and the trans-
ceiver may be damaged.
u AF VOLUME CONTROL KNOB [VOL]
Rotate to adjust the audio output level.
w FUNCTION DISPLAY
t DEALER-PROGRAMMABLE KEYS
[R], [P0], [P1], [P2], [P3]
e DEALER PROGRAMMABLE KEYS
[UP], [DOWN]
r POWER KEY [ ]
D
About the Microphone
The supplied or optional microphone has a PTT switch
and a hanger hook.
• The following functions are available when the micro-
phone is on or off hook (depending on the presetting):
- Pauses scan when it is off-hook.
- Switches to the 'Inaudible' mode (mute mode) when
it is on-hook.
- Switches to the 'Audible' mode (unmute mode)
when it is off-hook.
D
About the Speaker
The speaker will be disabled when the External speak-
er function is ON. (pp. 1-6, 5-3)
1-2
SPEAKER
