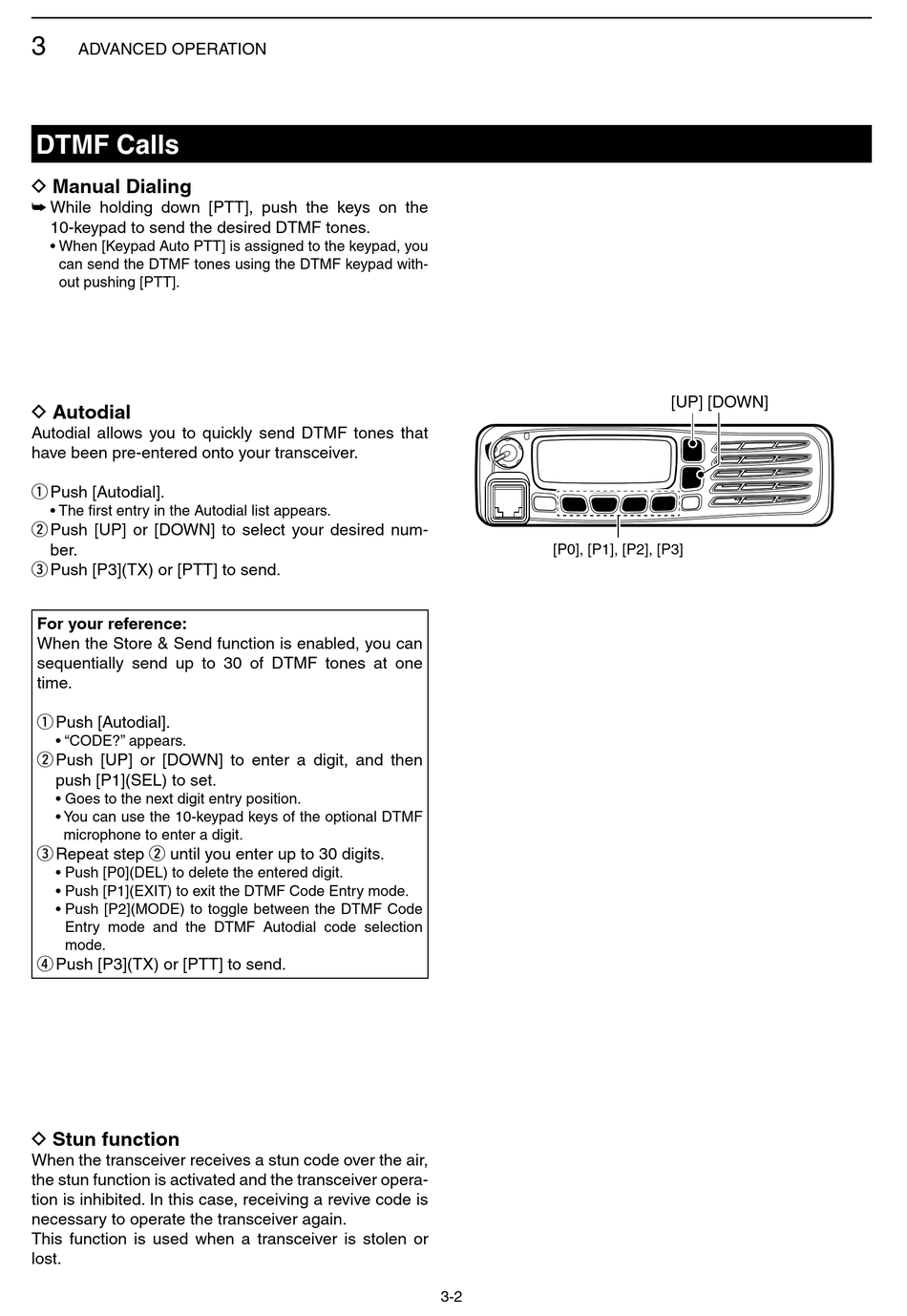

Dtmf Calls - Icom IC-F5360D Operating Instructions Manual

3
ADVANCED OPERATION

DTMF Calls

D Manual Dialing
While holding down [PTT], push the keys on the
➥
10-keypad to send the desired DTMF tones.
• When [Keypad Auto PTT] is assigned to the keypad, you
can send the DTMF tones using the DTMF keypad with-
out pushing [PTT].
D Autodial
Autodial allows you to quickly send DTMF tones that
have been pre-entered onto your transceiver.
Push [Autodial].
q
• The first entry in the Autodial list appears.
Push [UP] or [DOWN] to select your desired num-
w
ber.
Push [P3](TX) or [PTT] to send.
e
For your reference:
When the Store & Send function is enabled, you can
sequentially send up to 30 of DTMF tones at one
time.
Push [Autodial].
q
• "CODE?" appears.
Push [UP] or [DOWN] to enter a digit, and then
w
push [P1](SEL) to set.
• Goes to the next digit entry position.
• You can use the 10-keypad keys of the optional DTMF
microphone to enter a digit.
Repeat step w until you enter up to 30 digits.
e
• Push [P0](DEL) to delete the entered digit.
• Push [P1](EXIT) to exit the DTMF Code Entry mode.
• Push [P2](MODE) to toggle between the DTMF Code
Entry mode and the DTMF Autodial code selection
mode.
Push [P3](TX) or [PTT] to send.
r
D Stun function
When the transceiver receives a stun code over the air,
the stun function is activated and the transceiver opera-
tion is inhibited. In this case, receiving a revive code is
necessary to operate the transceiver again.
This function is used when a transceiver is stolen or
lost.
[P0], [P1], [P2], [P3]
3-2
[UP] [DOWN]
