1

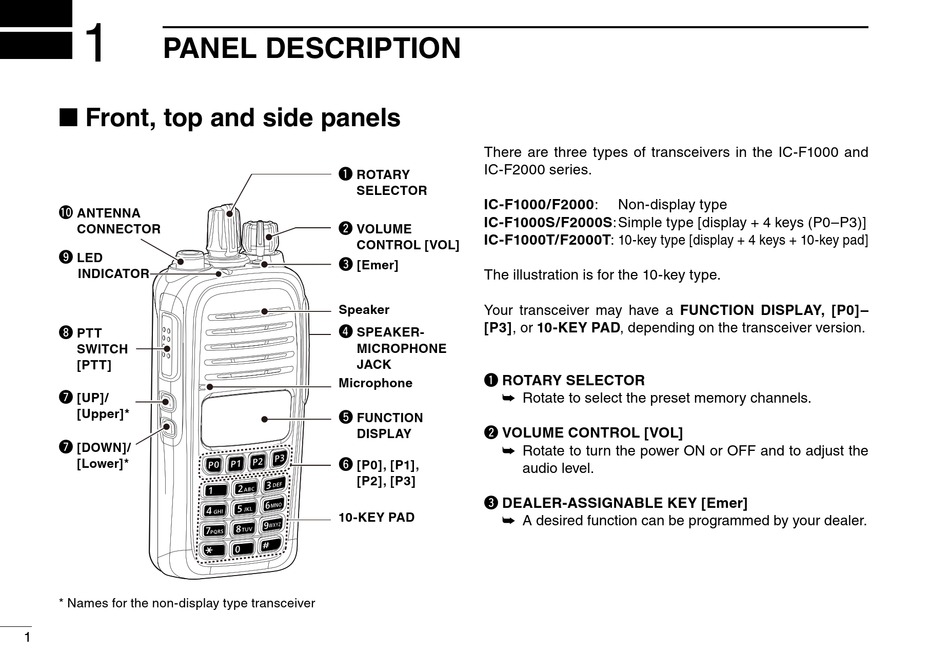

PANEL DESCRIPTION

■ Front, top and side panels

!0 ANTENNA
CONNECTOR
o LED
INDICATOR
i PTT
SWITCH
[PTT]
u [UP]/
[Upper]*
u [DOWN]/
[Lower]*
* Names for the non-display type transceiver
1
There are three types of transceivers in the IC-F1000 and
IC-F2000 series.
ROTARY
q
SELECTOR
IC-F1000/F2000:
IC-F1000S/F2000S: Simple type [display + 4 keys (P0–P3)]
w VOLUME
IC-F1000T/F2000T: 10-key type [display + 4 keys + 10-key pad]
CONTROL [VOL]
e [Emer]
The illustration is for the 10-key type.
Your transceiver may have a FUNCTION DISPLAY, [P0]–
Speaker
[P3], or 10-KEY PAD, depending on the transceiver version.
r SPEAKER-
MICROPHONE
JACK
q ROTARY SELECTOR
Microphone
➥
t FUNCTION
w VOLUME CONTROL [VOL]
DISPLAY
➥
y [P0], [P1],
[P2], [P3]
e DEALER-ASSIGNABLE KEY [Emer]
10-KEY PAD
➥
Non-display type
Rotate to select the preset memory channels.
Rotate to turn the power ON or OFF and to adjust the
audio level.
A desired function can be programmed by your dealer.
