INSTRUCTIONS
VHF DIGITAL TRANSCEIVER
Iç-F5360D
UHF DIGITAL TRANSCEIVER
Iç-F6360D
FOREWORD
This instruction sheet includes some functions which are
usable only when they are preset by your dealer. Ask your
dealer for details.
See the operating instructions for details of other func-
tions, and IDAS™ NXDN™ system operations. Ask your
dealer for details.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor-
porated (Japan) in Japan, the United States, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
IDAS and the IDAS logo are trademarks of Icom Incorporated.
NXDN is a trademark of Icom Incorporated and JVC Kenwood Corporation.
All other products or brands are registered trademarks or trademarks of their
respective holders.

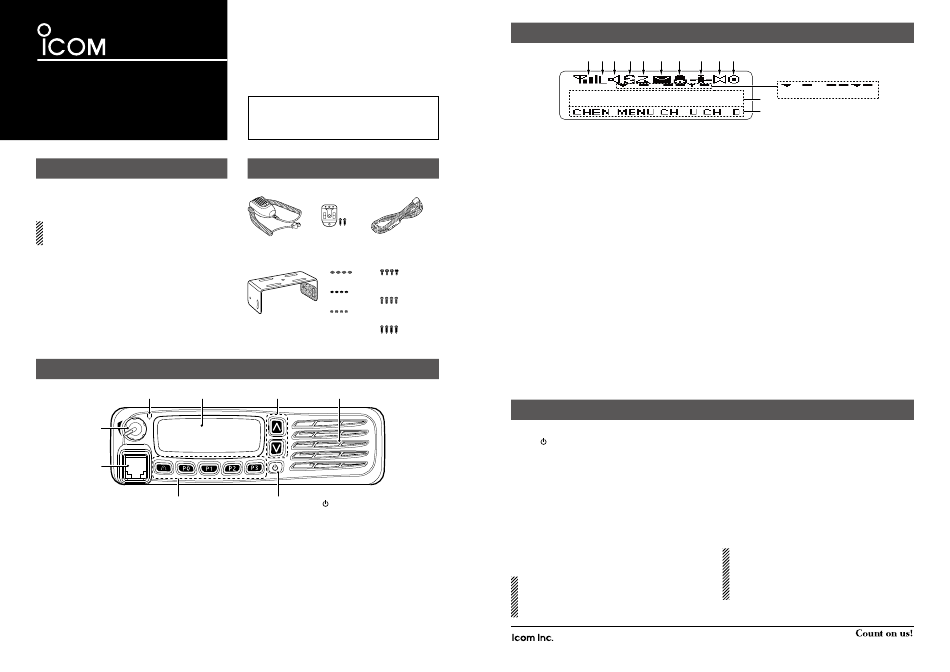

PANEL DESCRIPTION
LED indicator
Function display
[VOL]
Microphone
connector
Dealer-assignable keys*
([R], [P0], [P1], [P2], [P3])
*Ask your dealer for details.
CONTACT
Thank you for choosing the IC-F5360D
vhf digital
or IC-F6360D
transceiver
uhf digital transceiver
READ ALL INSTRUCTIONS carefully and complete-
ly before using your transceiver.
SUPPLIED ACCESSORIES
Microphone
Microphone hanger
DC power cable
and screw set
Mounting bracket
Flat washers
Bracket bolts
Spring washers
Mounting screws
(M5×12)
Nuts
Self-tapping screws
(M5×16)
Up/Down keys
Speaker
Power switch [ ]
D
About the LED indicator
• Lights red while transmitting.
• Lights green while receiving a signal, or when the squelch
is open.
q w e r t
IC-F5360D
.
q SIGNAL STRENGTH INDICATOR
Displays the relative receive signal strength.
w LOW POWER ICON
Appears when low output power is selected.
• When the battery charge decreases to a specified level, low
①縦横比を52×19にする。
power is automatically selected.
②拡大200%
e AUDIBLE ICON
③拡大150%
Appears when the channel is in the 'audible' (unmute)
mode.
Appears when a matched signal is received.
r SCRAMBLER ICON
Appears when the Voice Scrambler function is ON.
t SCAN ICON
Appears while scanning.
y MESSAGE ICON
Appears when a received message (Short Data Mes-
sage or Status Message) is stored in the stack mem-
ory.
Blinks when an unread message is in the stack mem-
ory.
u BELL ICON
Appears when a matched signal is received, depending
on the presetting.
i GPS ICON
Appears when position data is received.
D
Turning power ON
Push [
] to turn ON the power.
D
Receiving and Transmitting
Receiving:
Select a channel.
q
Push [CH U] or [CH D].
Push one of the direct channel select keys, [DR 1] to
[DR 5].
Push the ([1] to [9] or [0]) digit keys of the optional
DTMF microphone to enter the channel number when
the Channel Entry function is assigned to the keypad,
or after pushing [CHEN].
When receiving a call, rotate [VOL] to adjust the audio
w
output level to a comfortable listening level.
For your reference:
[CHEN]: Channel Entry
[CH U]: CH/GID Up
[CH D]: CH/GID Down
[DR 1]: Direct CH/GID 1 [DR 5]: Direct CH/GID 5
See the operating instructions for details.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
FUNCTION DISPLAY
y
u
i
o !0
!3
!4
!1
!2
o HORN ALERT ICON
Appears when the Horn Alert function is ON.
!0 PUBLIC ADDRESS ICON
Appears when the Public Address function is ON.
!1 ALPHANUMERIC READOUT
Displays the operating channel number, channel name,
Menu contents, DTMF code, and so on.
• The display mode automatically switches between one line and
two lines.
!2 KEY ICONS
Displays the assigned function of the [P0], [P1], [P2] and
[P3] front panel keys.
!3 SCAN TARGET ZONE ICON
Appears when the scan target zone is selected.
!4 EXTERNAL SPEAKER ICON
Appears when the external speaker is connected.
!5 AUX A ICON
Appears when the AUX A function is ON.
!6 AUX B ICON
Appears when the AUX B function is ON.
!7 SCAN TARGET CHANNEL ICON
Appears when the scan target channel is selected.
!8 OPERATOR SELECTABLE TONE ICON
Appears when the Operator Selectable Tone function is
ON.
BASIC OPERATION
Transmitting:
Wait until the channel is clear to avoid interference.
q
Take the microphone off hook.
• While scanning, the scan stops.
w
Wait for the channel to become clear.
• The channel is busy when the LED indicator lights green.
While holding down [PTT], speak at a normal voice level.
e
Release [PTT] to receive.
r
IMPORTANT:
To maximize the readability of your signal:
1. After pushing [PTT], pause briefly before you start
speaking.
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from
your mouth, then speak at a normal voice level.
A-7148H-2EX
!5 !6 !7 !8
Printed in Japan
© 2014 Icom Inc.
