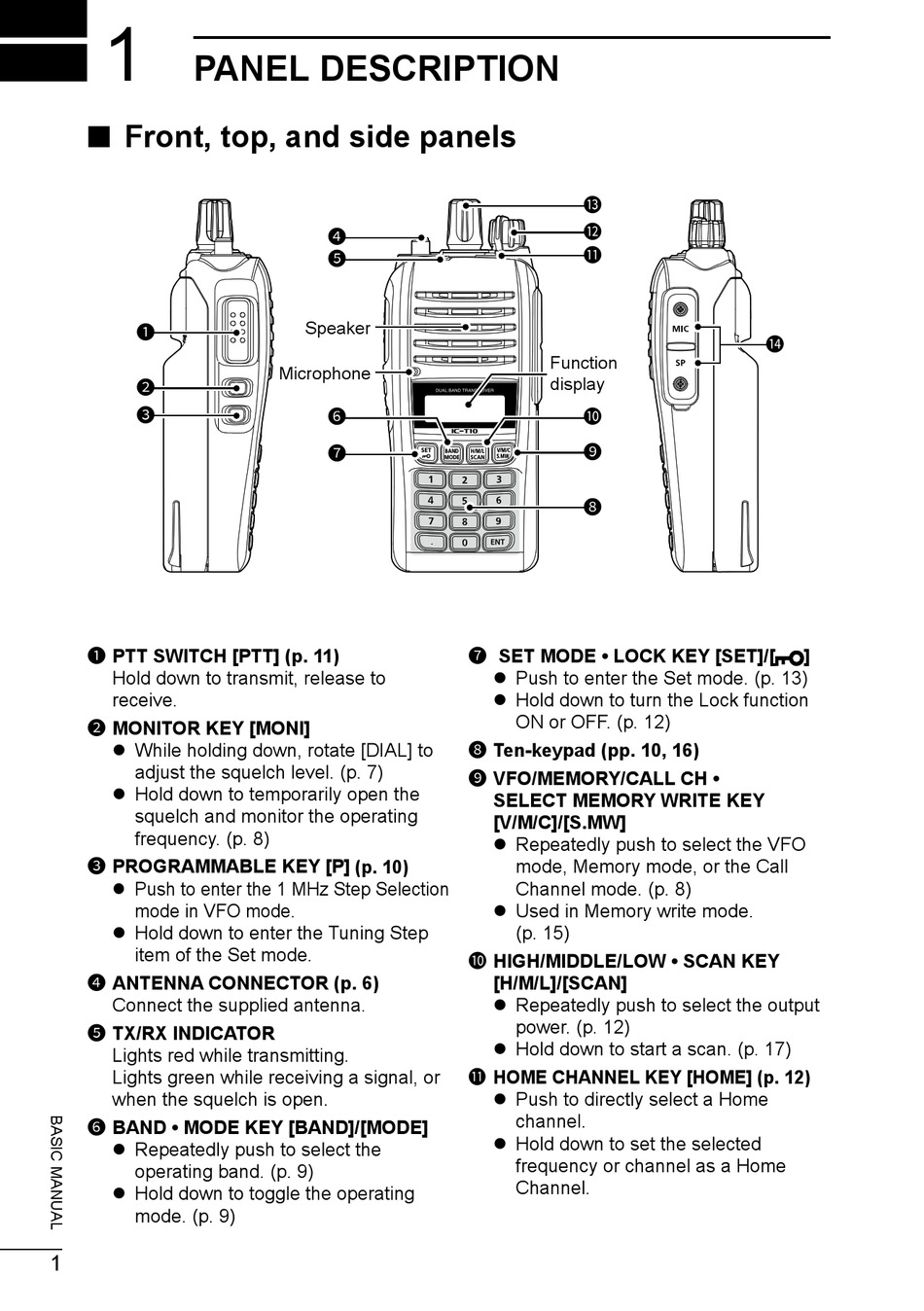

PANEL DESCRIPTION

■ Front, top, and side panels

1
2
3
1 PTT SWITCH [PTT] (p� 11)
Hold down to transmit, release to
receive.
2 MONITOR KEY [MONI]
z While holding down, rotate [DIAL] to
adjust the squelch level. (p. 7)
z Hold down to temporarily open the
squelch and monitor the operating
frequency. (p. 8)
3 PROGRAMMABLE KEY [P] (p� 10)
z Push to enter the 1 MHz Step Selection
mode in VFO mode.
z Hold down to enter the Tuning Step
item of the Set mode.
4 ANTENNA CONNECTOR (p� 6)
Connect the supplied antenna.
5 TX/RX INDICATOR
Lights red while transmitting.
Lights green while receiving a signal, or
when the squelch is open.
6 BAND • MODE KEY [BAND]/[MODE]
z Repeatedly push to select the
operating band. (p. 9)
z Hold down to toggle the operating
mode. (p. 9)
1
4
5
Speaker
Microphone
6
7
13
12
11
Function
display
10
9
8
7 SET MODE • LOCK KEY [SET]/[
z Push to enter the Set mode. (p. 13)
z Hold down to turn the Lock function
ON or OFF. (p. 12)
8 Ten-keypad (pp� 10, 16)
9 VFO/MEMORY/CALL CH •
SELECT MEMORY WRITE KEY
[V/M/C]/[S�MW]
z Repeatedly push to select the VFO
mode, Memory mode, or the Call
Channel mode. (p. 8)
z Used in Memory write mode.
(p. 15)
10 HIGH/MIDDLE/LOW • SCAN KEY
[H/M/L]/[SCAN]
z Repeatedly push to select the output
power. (p. 12)
z Hold down to start a scan. (p. 17)
11 HOME CHANNEL KEY [HOME] (p� 12)
z Push to directly select a Home
channel.
z Hold down to set the selected
frequency or channel as a Home
Channel.
