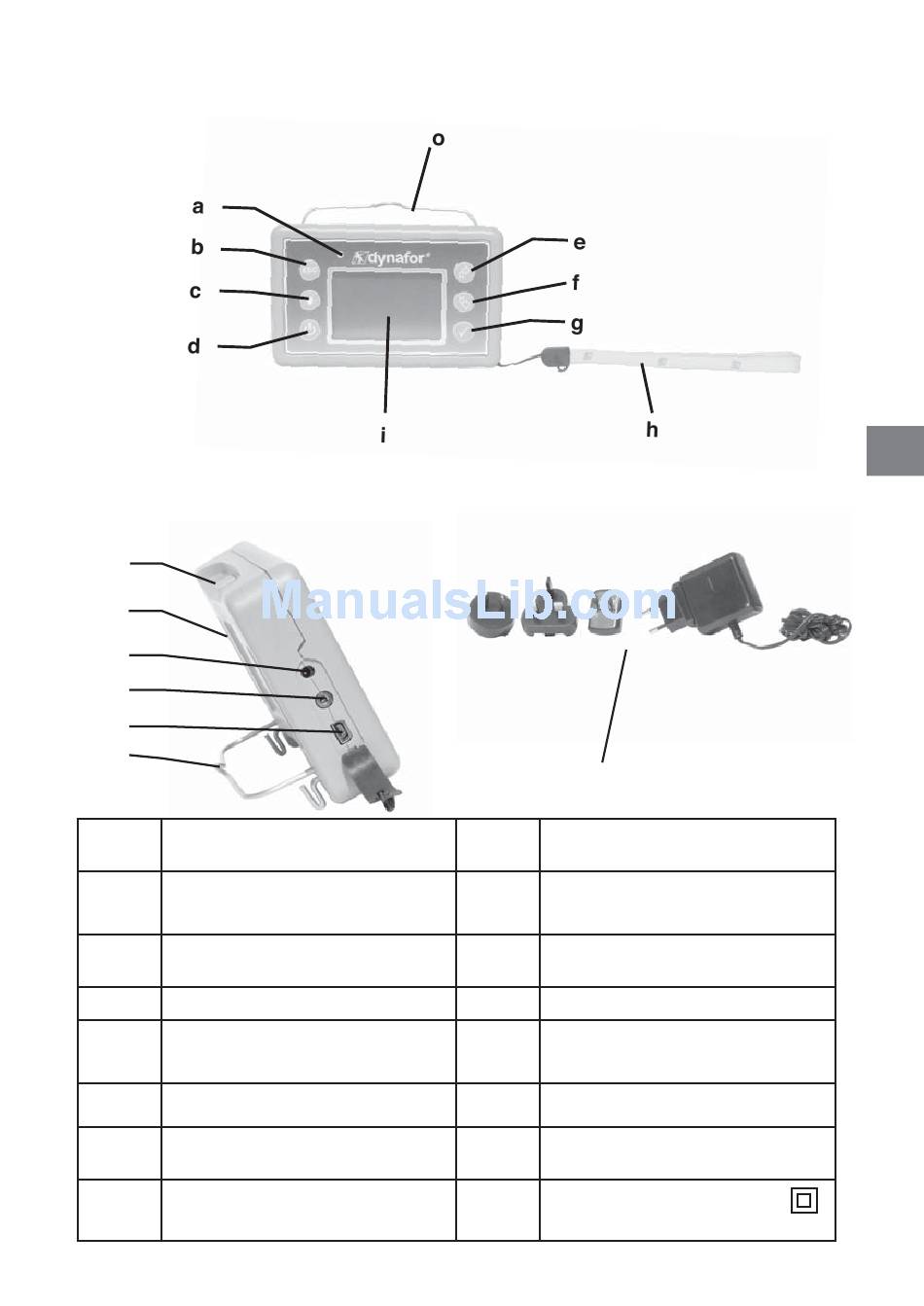

1.2.2 Display unit

j
k
l
m
n
o
a Indicator LED (manufacturer use)
b Key: "esc"
c Key: Back lighting. Auto off after 10"
d Key: On / Off
Key: Enables available options and
e
clockwise browsing
Key: Enables available options and
f
anti-clockwise browsing
g Key: Confirm / Enter
h Safety wrist strap
p
LCD graphic screen
i
128 x 64 pixels
Attaching points for the display unit on
j
the bumper of the sensor housing
k CE Marking and Serial No.
l Charger socket
m Serial port (manufacturer use)
n USB port
o Metal wire
Charger 100-240 Vac 50/60 Hz. 180 mA
p
Secondary: 12 Vdc. 500 mA.
7
67 x 40 mm
