6.2.2 Detailed description

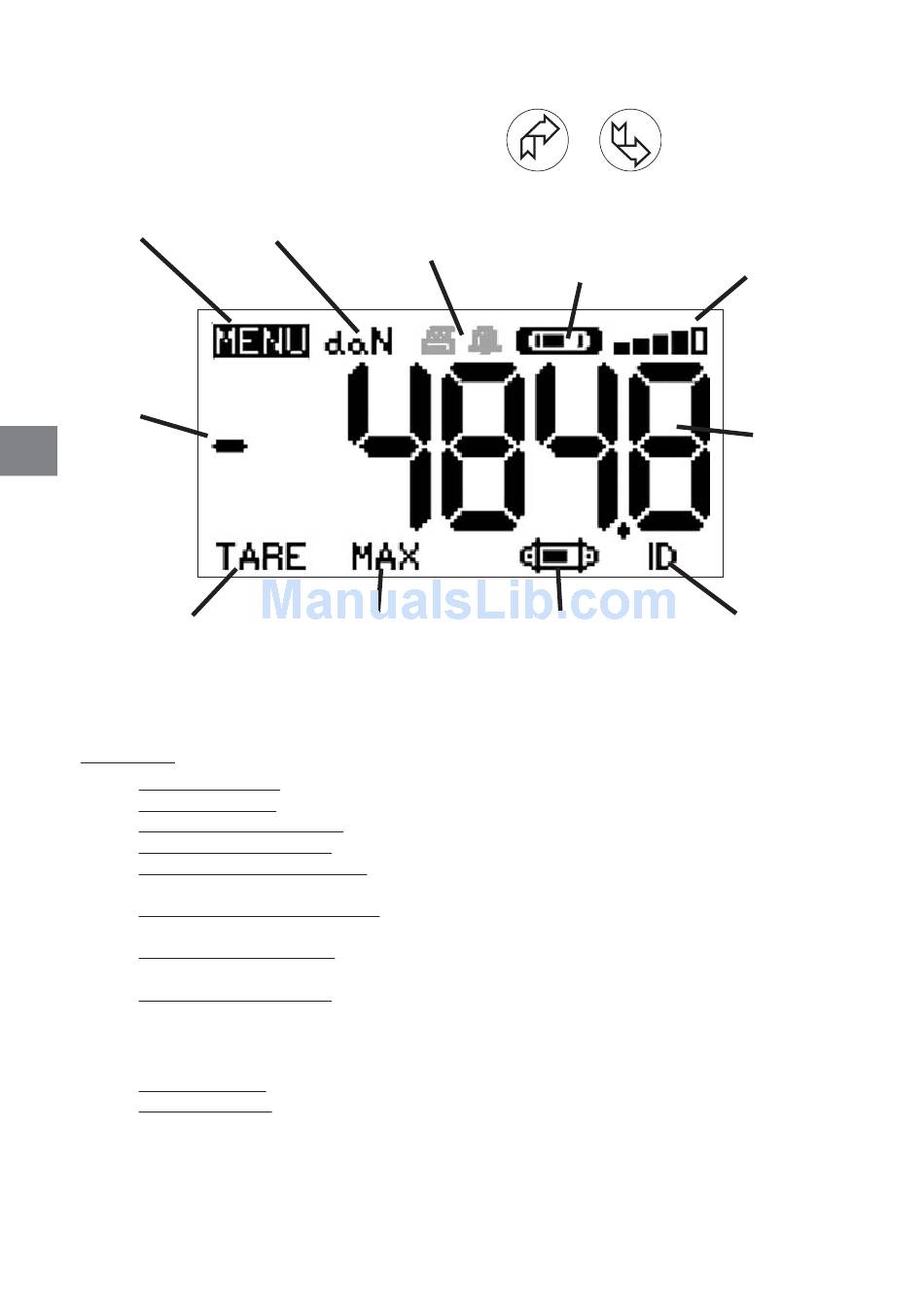

Display all of the icons by pressing on one of the buttons
Menu access
icon
Positive or
negative value
stress indicator
GB
Tare Function
access icon
6.2.3 Icons
a) Active icons:
Menu access icon: offers access to advanced functions (See chapter 6.3)
Units access icon: enables measurement unit selection (See section 6.2.4.3)
Tare Function access icon: enables Tare function (Gross / Net Load) (See section 6.2.4.4)
Peak Stress access icon: enables the maximum stress save function (See section 6.2.4.5)
Display unit data access icon: shows display unit power pack charge and data relating to the
Transmission data access icon: enables viewing and modification of the radio network status
Identification access icon: enables viewing of network equipment identification (see section
Sensor data access icon: Shows sensor battery charge and data relating to the sensor (See
b) Indicator Icons:
Alarm Indicators: Appear if one or more safety thresholds have been set, flashing if exceeded.
Printer Indicators: appear when data transmission to PC is requested
Unit access Printer and
icon Alarm
indicators
Peak stress
access icon
display unit (See section 6.3.2.2)
(see section 6.3.2.4)
6.3.2.3)
section 6.3.2.1)
(requires PC Connection option)
or
Battery level and
display unit data
access icon
Battery level
and ISensor
data access
icon
14
Network
transmission data
access icon
Stress
value
Identification
access icon
