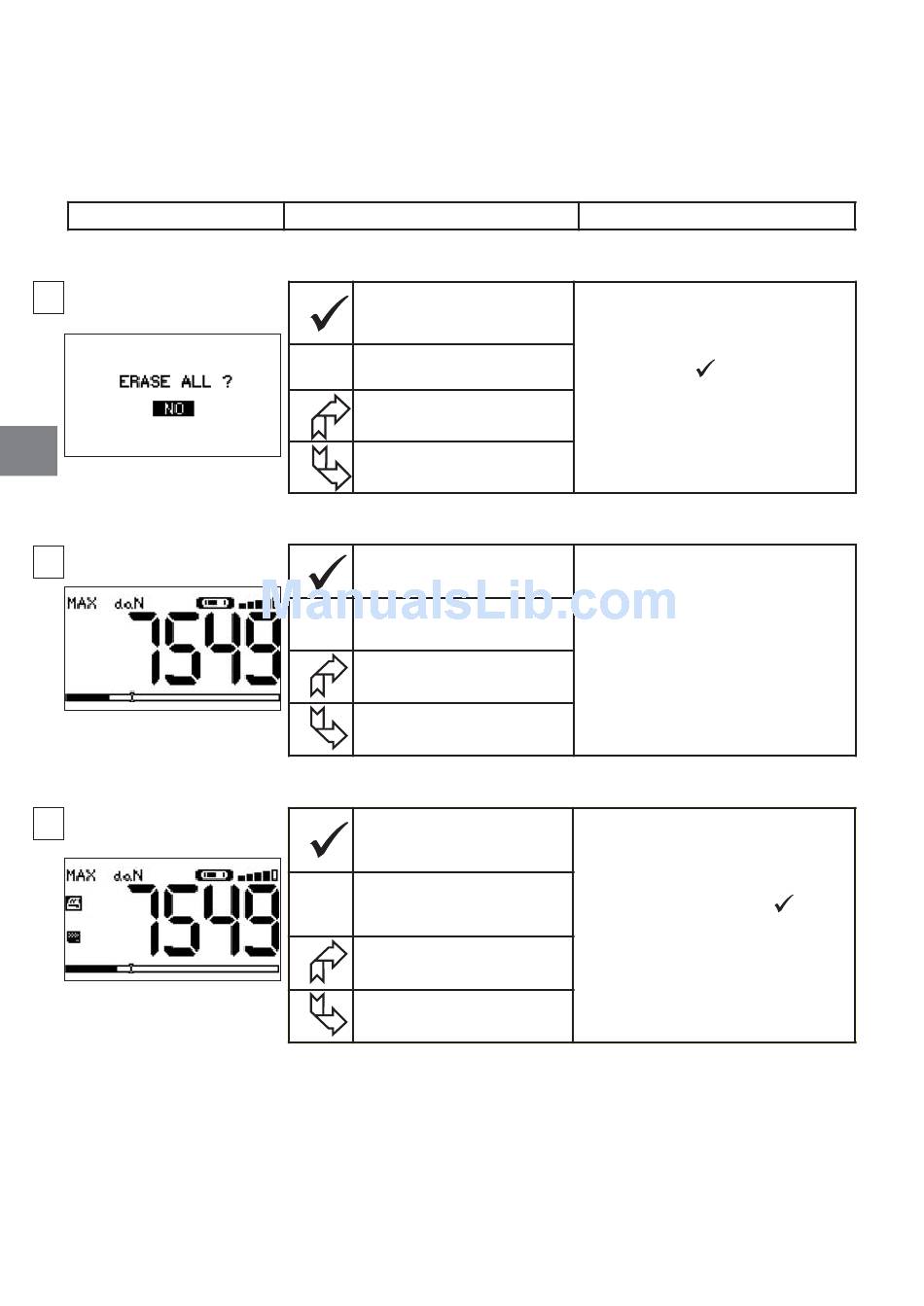

6.2.4.5 MAX Function (Peak stress save)

Display
5
GB
6
7
Action
Reset MAX value to current
stress level
ESC
Return to standard display
No action
No action
Reset MAX value to current
stress level
ESC
Return to standard display
Enable MAX window selection
mode
Enable MAX window selection
mode
Confirm selection
ESC
Return to MAX display
Move clockwise from icon to
icon
Move anti-clockwise from icon
to icon
16
Comments
Peak load function:
From the Standard screen, go to the
MAX icon.
Confirm with
The "in progress" screen appears
while the display unit dialogues with
the sensor to change to "Peak
Load" mode - 32 measures per
second
Peak load function:
The peak load value is displayed
The barograph represents 100% of
sensor capacity
The cursor indicates the peak value
of stress
The moving black line shows the
immediate stress value
Advanced Peak load functions:
In this mode you can saves the peak
stress set saves.
Using the arrows and from the MAX
window, select the icon:
Diskette and confirm with to save.
