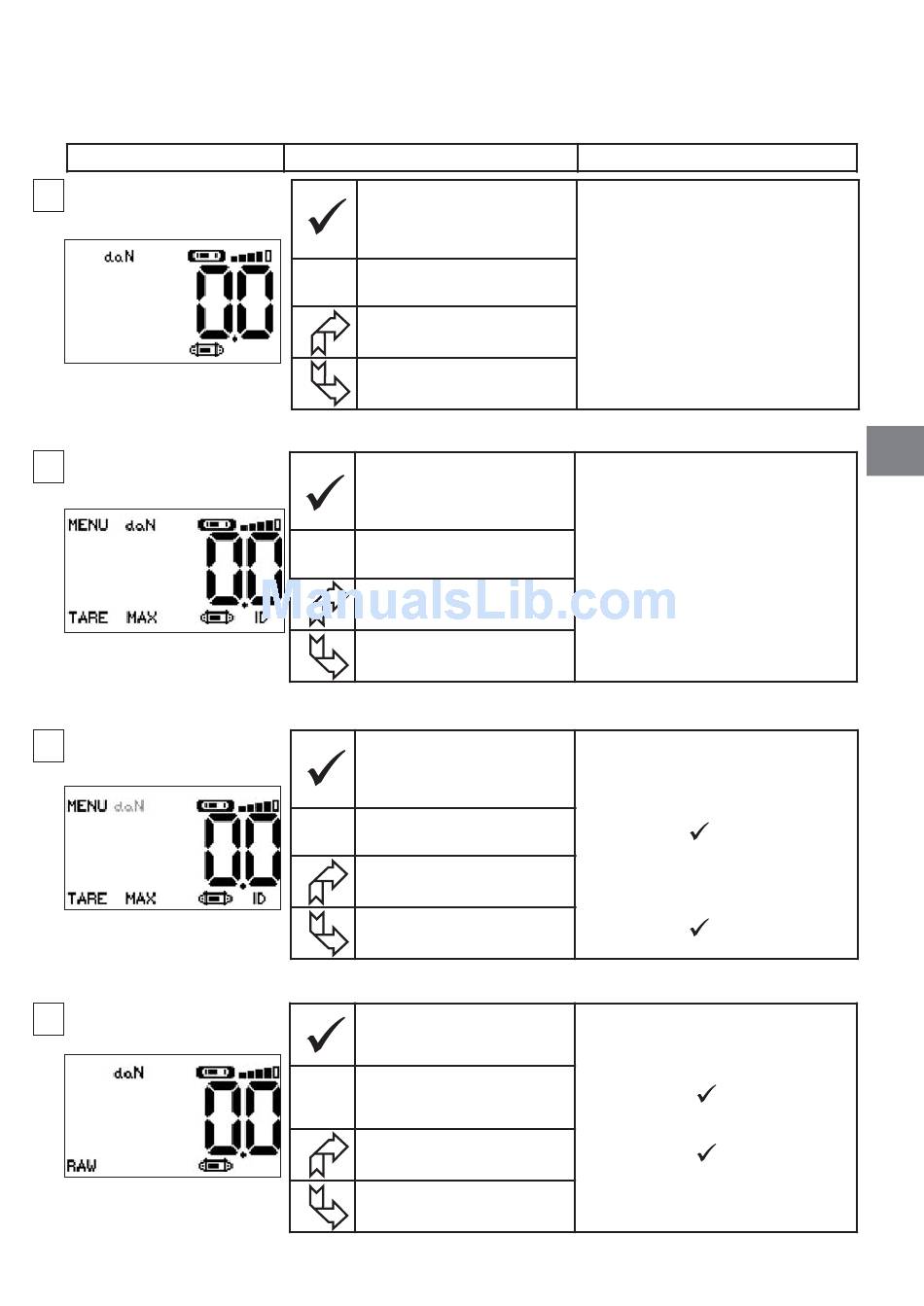

6.2.4 Elementary functions and corresponding displays

6.2.4.1 Standard display
Display
1
6.2.4.2 Navigating between icons
2
6.2.4.3 Measurement unit selection
3
6.2.4.4 Tare Function
4
Action
No action
ESC
No action
Select an icon
Select an icon
Confirm current selection
ESC
Return to standard display
Move clockwise from icon to
icon
Move anti-clockwise from icon
to icon
Confirm selection
Return to standard display
ESC
without modification
Select an icon and enable the
available options
Select an icon and enable the
available options
Confirm TARE option when it is
highlighted.
Return to standard display
ESC
without modification
Select an icon and enable the
available options
Select an icon and enable the
available options
15
Comments
Standard Display:
Sensor stress
Measurement units
Display unit power pack level
Sensor battery level
Radio reception level
Navigation:
By pressing on either of the two
arrows, all available functions are
displayed.
Move from icon to icon using the
arrows.
Select Unit: daN, kN, kg, t, Lbs,
Ton.
Select the unit icon, which starts
flashing.
Confirm with
Enable the various unit symbols:
daN, kN, kg, Metric ton, pounds,
short Ton.
Confirm with
TARE Function:
Select the TARE icon, which
starts flashing.
Confirm with
Enable the various options.
Confirm with
TARE = Initialise a new Tare
RAW = Sum of NET + TARE
NET = Difference between RAW - TARE
