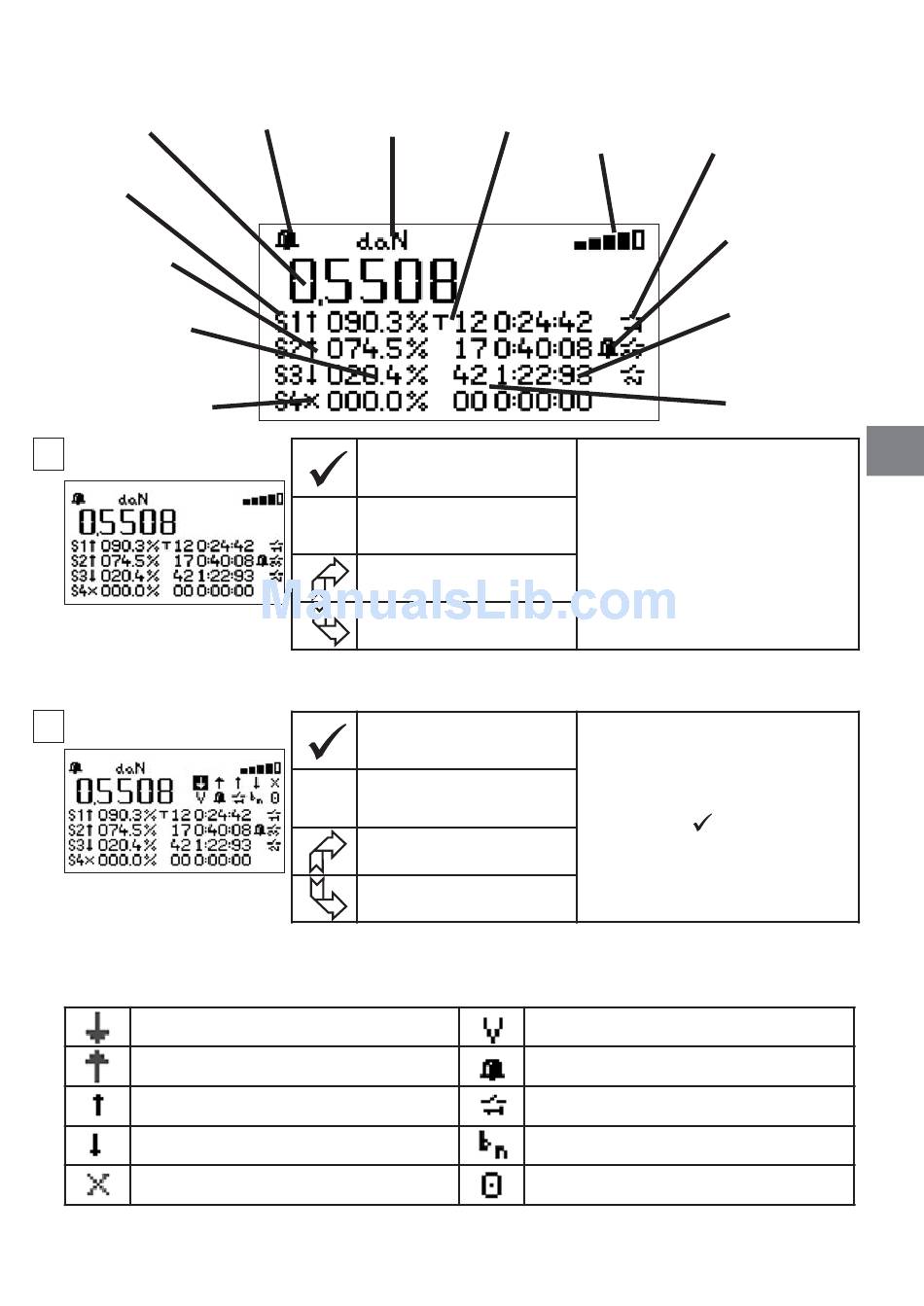

6.3.1.1.3 Threshold Management

Measure in
progress
Threshold1
Trigger direction
Threshold in %
of LLX2 capacity
Threshold disabled
21
22
Threshold management sub-menu keys
Scroll threshold by threshold downwards
Scroll line by line upwards
Trigger of programmed threshold when upward
overrun
Trigger of programmed threshold when downward
overrun
No threshold trigger programmed
Alarm logo
Measurement
units
No action
ESC
Return to standard display
Select an icon and enable the
available options
Select an icon and enable the
available options
Confirm selection
ESC
Return to previous display
Select an icon and enable the
available options
Select an icon and enable the
available options
Tare
Radio reception
level
Threshold Management:
This
programming
thresholds,
programmable relays.
Threshold management sub-menu:
Select the sub-menu.
See details and keys in the
following table.
Confirm with
The thresholds increment in steps
of 0.5% of the sensor capacity.
Adjustment range: From 0 to
120% of sensor capacity.
To modify the threshold value
Sound alarm programmed
Relay 1 programmed. (Disabled in current version.)
Trigger selection in relation to Gros or Net
Reset number and duration of programmed
threshold overruns
21
Indicator:
Relay 1
programmed
Indicator :
Alarm
programmed
Time H MM SS
of threshold
overrun
No. (XX) of
threshold
overrun
window displays
status of the
sound alarms
