6 OPERATION IN SINGLE CONFIGURATION

Single configuration consists of using an assembly made up of one sensor and one display unit for
measuring and displaying the stress on the sensor. Depending on the user's requirements, the display
unit can either be attached to the sensor or be separated from it.
Unless otherwise ordered, the radio link-up between the sensor and the display unit is set definitively in
the factory before dispatch. After this, the radio link can be configured by the user to meet their
requirements. (see: Chapter 7: Operation in multiple configuration)
6.1 Commissioning
6.1.1 Enabling the sensor batteries
The 3 x 1.5 V "AA" batteries are installed in the factory.
Remove the insulating tab protruding from the battery compartment to enable them.
For future battery changes, refer to Chapter 9.2
GB
6.1.2 Charging the display unit
The display unit is delivered with the power pack charged.
Afterwards, use the charger provided to charge the power pack.
Charging time: 3 h.
The display unit can be used during charging.

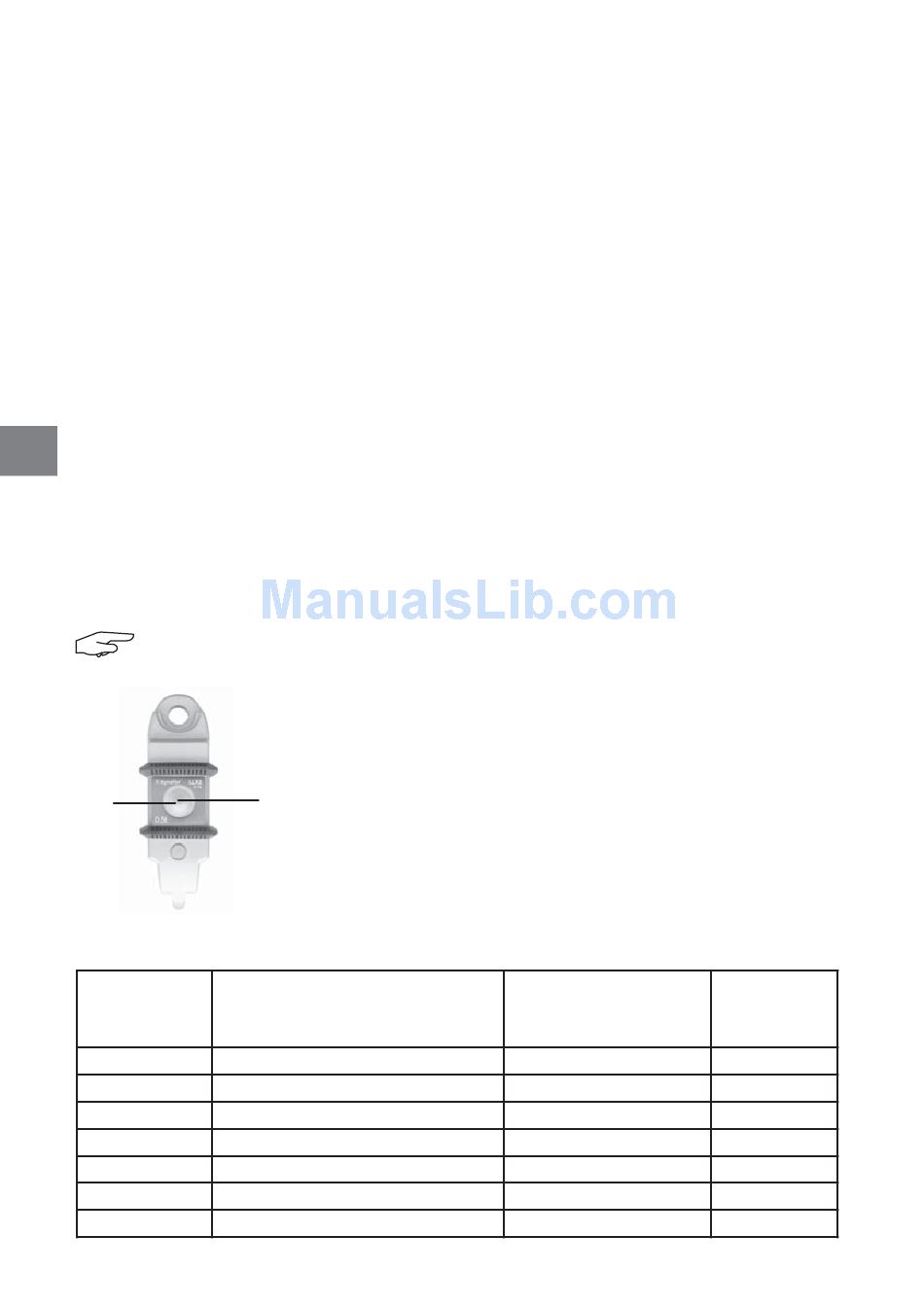

6.1.3 Turning on the sensor
NOTE: Always turn on the sensor before turning on the display unit; otherwise the
display unit will not be able to establish the radio link.
LED
6.1.4 Information provided by the sensor LED
Sensor operating
MODE
Stop
Standard
Standard slow
Power saving
Standby
Peak load
Batteries low
Press the centre of the flexible cap covering the switch.
ON
OFF
On switching on the two red LED will flash.
Sensor LED flashing
Off
1 flash per second
1 flash every 2 seconds
1 flash every 4 seconds
1 flash every 8 seconds
2 flashes per second
Same but one LED at a time
Measures per second
-
4 per second
1 per second
1 every 4 seconds
-
32 per second
12
Autonomy
-
300 h
500 h
1000 h
3000 h
100 h
-
