Date And Time; Reboot - DPS Telecom NetGuardian-16S User Manual

49

14.6.2 Date and Time

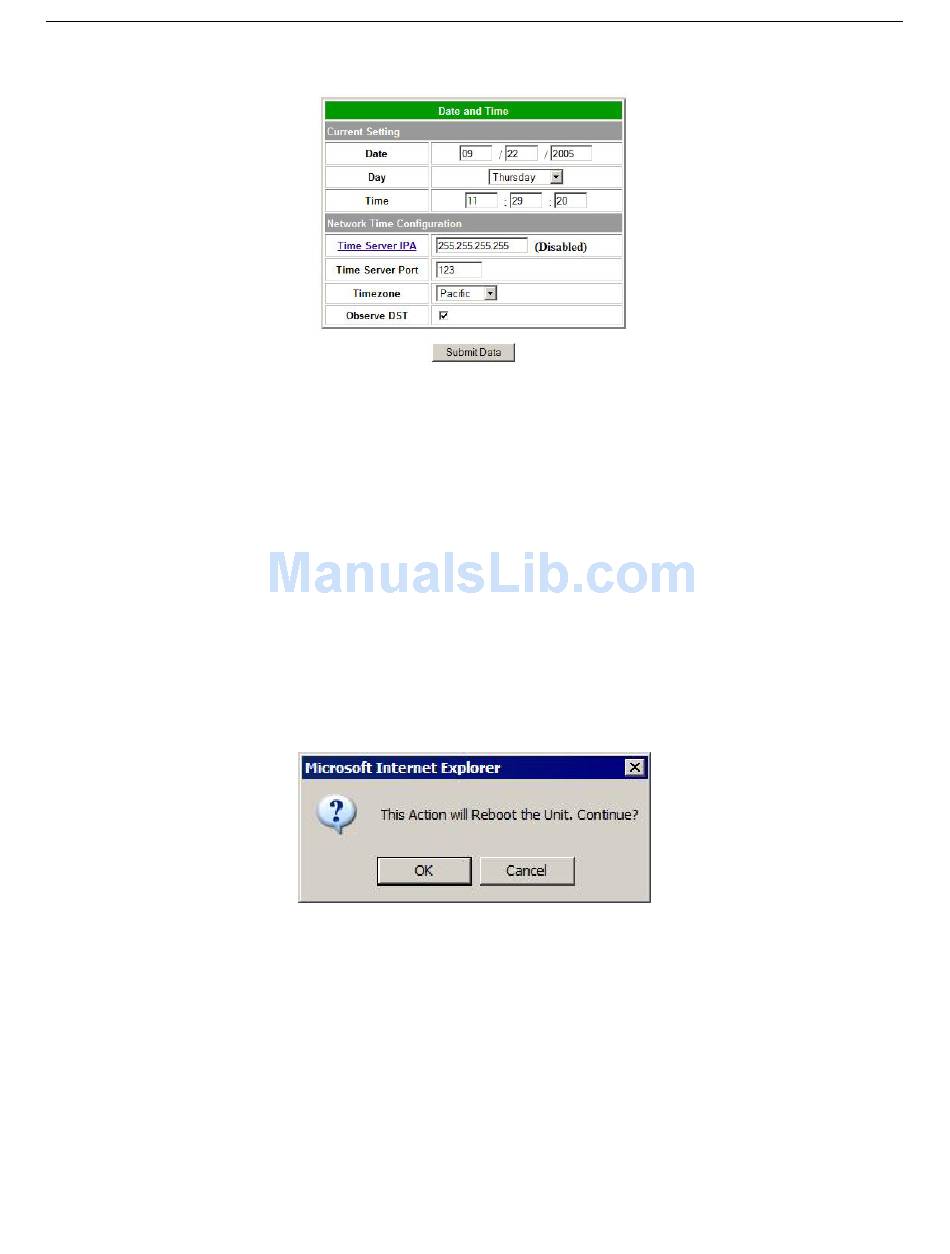

Fig. 14.6.2.1. Date and Time edit page
Clicking the Date and Time link in the Edit menu opens the Date and Time edit page (see Figure 12.6.2.1,
above). On this page you can reset the NetGuardian-16S's internal clock or configure the NetGuardian-16S to
automatically set its clock to a Network Time Protocol Server.
To set the NetGuardian-16S internal clock, enter the current date, day of the week, and time in the Current
Setting area. Note that the Date field uses U.S. MM/DD/YYYY format, and the Time field uses 24-hour time.
After entering the correct time, click the Submit Data button to save your changes.
To set the time automatically using Network Time Protocol, enter the IP address and port of a network time
server in the Network Time Configuration area. (For a list of network time servers, click the Time Server IPA
link.) Select your time zone in the Time Zone drop-down menu, and check the Observe DST check box if you're
currently observing daylight saving time. After making your selections, click the Submit Data button to save
your changes.

14.6.3 Reboot

Fig. 14.6.3.1. Reboot command confirmation prompt
Clicking the Reboot link in the Edit menu will reboot the NetGuardian-16S. A dialog box (see Figure 12.6.3.1)
will ask you to confirm the Reboot command. Click OK to execute the reboot or click Cancel.
