Back Panel LEDs

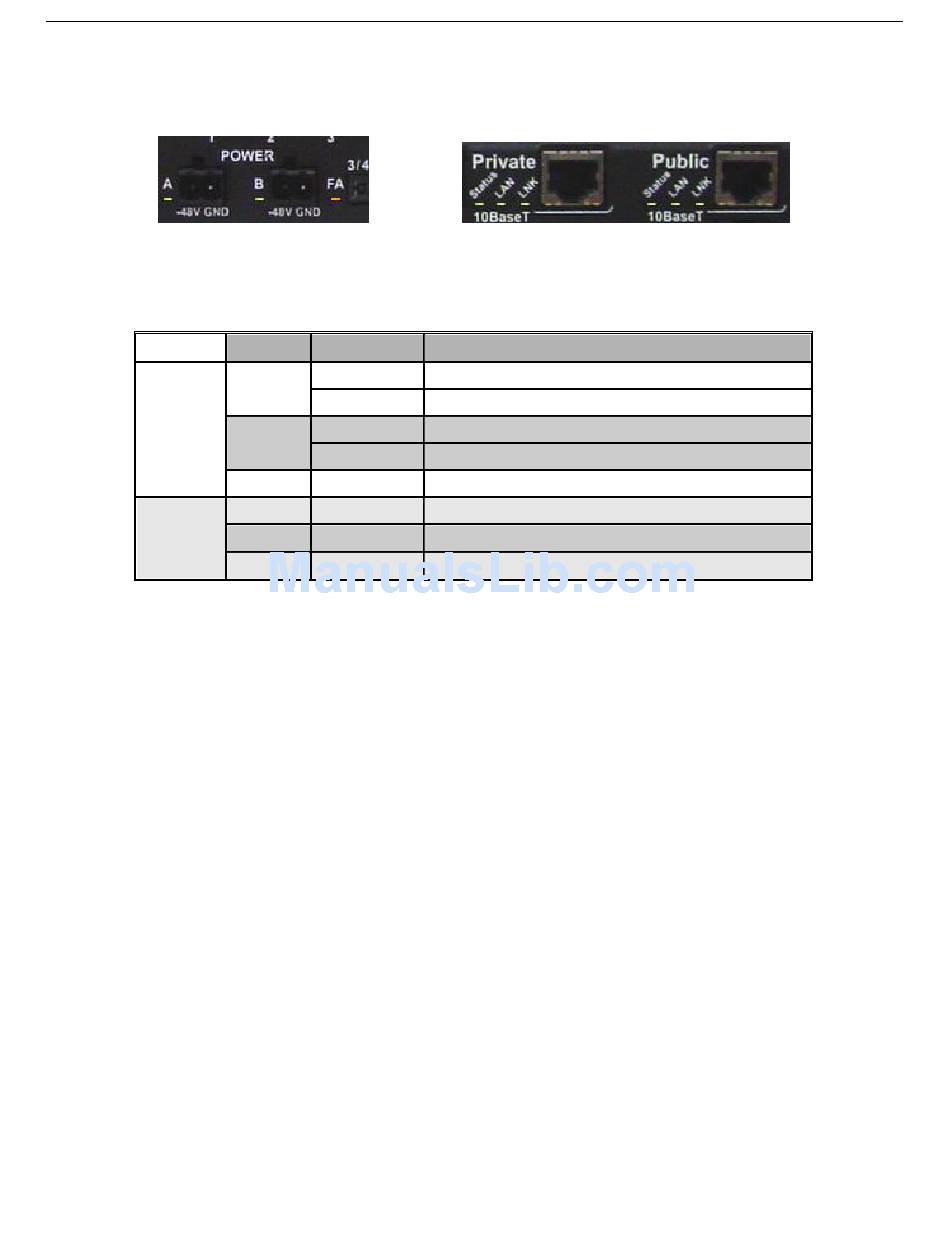

Fig. 11.1. Back panel LEDs for Power (left) and Ethernet connections
The back panel LEDs indicate the status of power and Ethernet connections. LED status messages are described
below in Table 11.A.
Power
Ethernet
LED Status
Solid Green Correct polarity on power feed A
Power A
Solid Red Reversed polarity on power feed A
Solid Green Correct polarity on power feed B
Power B
Solid Red Reversed polarity on power feed B
FA Solid Red Fuse failure
Status Blink Green Bus activity between LAN chip and processor
LAN Blink Green Transmit and receive activity
LNK Solid Green Ethernet link OK
Table 11.A. Back panel LED Status message descriptions
Description
