13.3.3 Proxy Menu

You can create proxy connections to reach-through to the craft port, modem port or any of the other eight serial
ports from the P)roxy menu. You'll be able to monitor and control additional devices via proxy connection to the
NetGuardian-16S. Data presented and handshaking will be specified by the connected device.
To cancel the proxy connection wait a half second, then quickly type @@@ and press ENTER.

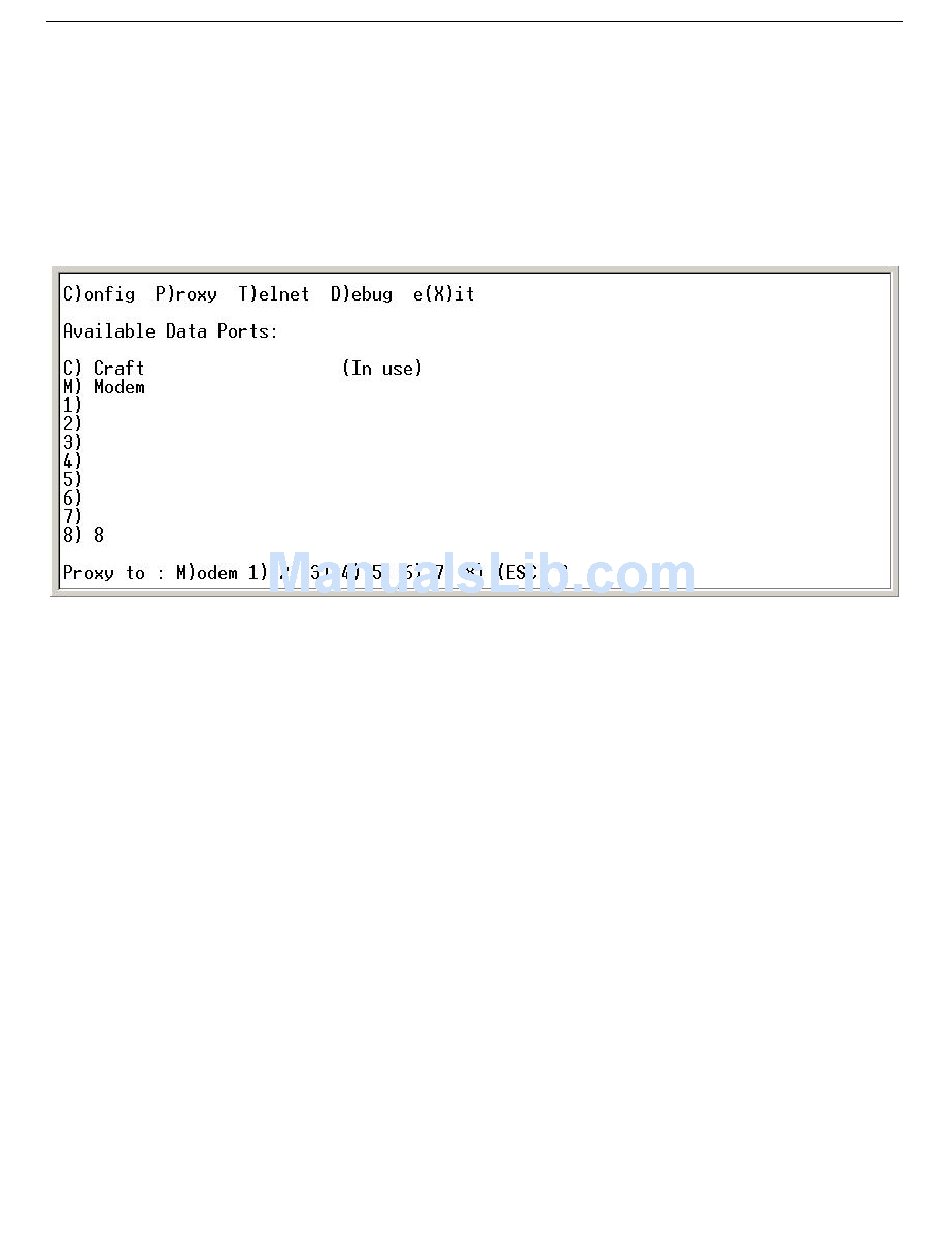

Fig. 13.3.3.1. Access devices connected to the eight data ports on the back panel through M)onitor menu >
P)roxy option
Note: An issue has been identified when you attempt to access a IPM's PTMC (and modify PTMC parameters)
via the NetGuardian-16S which prevents these PTMC parameters from being changed. To avoid this from
happening, the terminal program must be configured to send CR+LF for "new-lines". Depending on the terminal
software in use, the actual configuration steps may vary but the steps identified for Tera Term Pro are:
Under "Setup" select "Terminal" and set "New-line", "Transmit:" to "CR+LF".
Please make a note of this when accessing PTMC configurations via the NetGuardian-16S (newer installations).
Also note that this configuration change should only be used when accessing the PTMC console function. When
accessing other console ports, keep the standard CR only configuration.
