14.5.7 Port Transmit and Port Receive

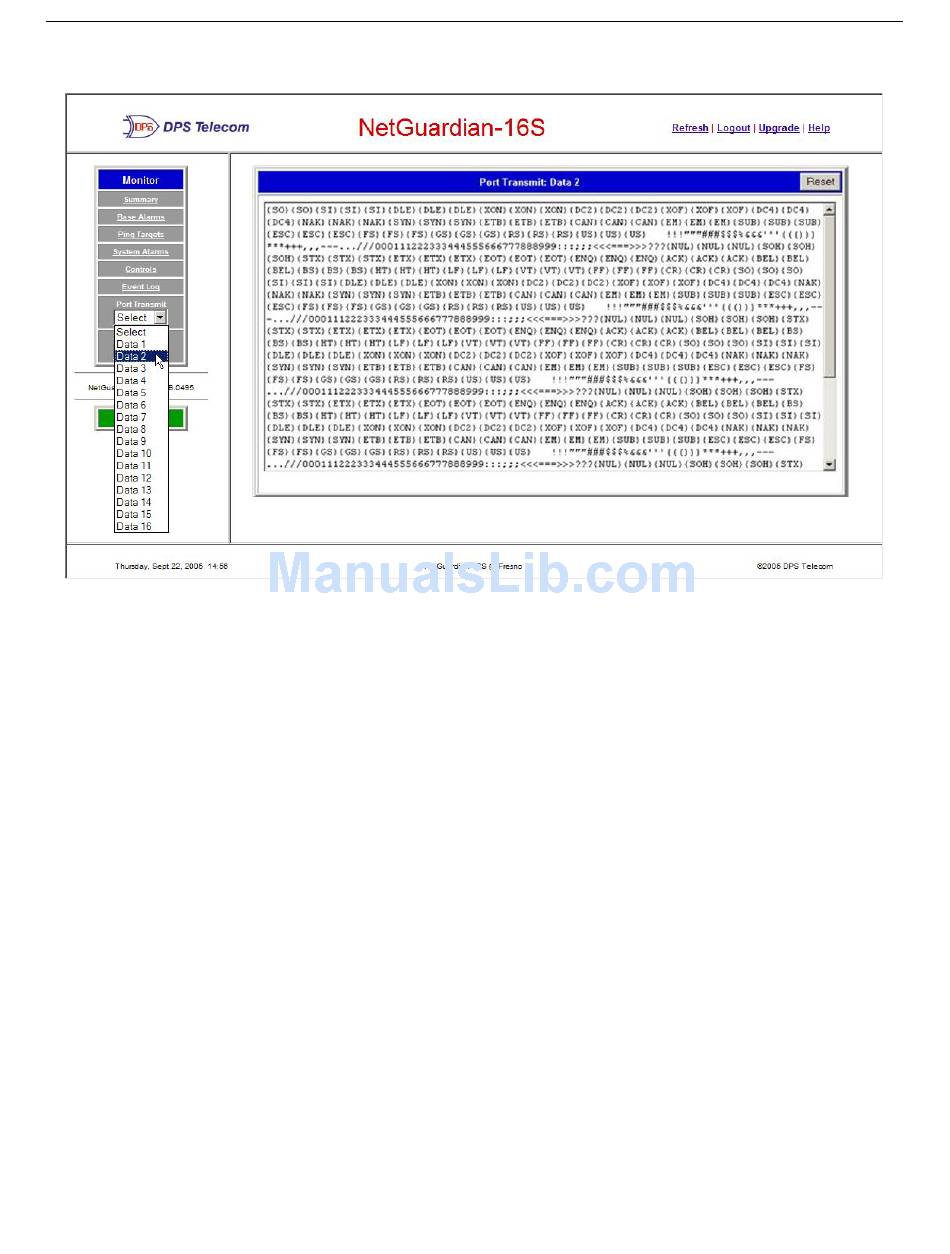

Fig. 14.5.7.1. Port Transmit page
The Port Transmit and Port Receive pages display live data being transmitted or received over the
NetGuardian-16S's 16 data ports. The port data traffic is displayed in ASCII symbols.
To view transmit or receive port traffic, select the data port you want to see from either the Port Transmit or
Port Receive drop-down menus in the Monitor menu. (See Figure 12.5.7.1, above.)
To clear and reset the display, click the Reset button in the top right corner of the page.
For a descriptions of the ASCII symbols, see Section 13.6, "ASCII Symbol Descriptions," in the Reference
section.
