Front Panel LEDs

The NetGuardian-16S's front panel LEDs indicate communication and alarm reporting status. LED status
messages are described below in Table 10.A.
LED
Craft 1
Exp
Private
Public
Data Ports 1–16
Craft 2
ICom
Modem
Config
Alarm
BSU SM
DTMF
Voice

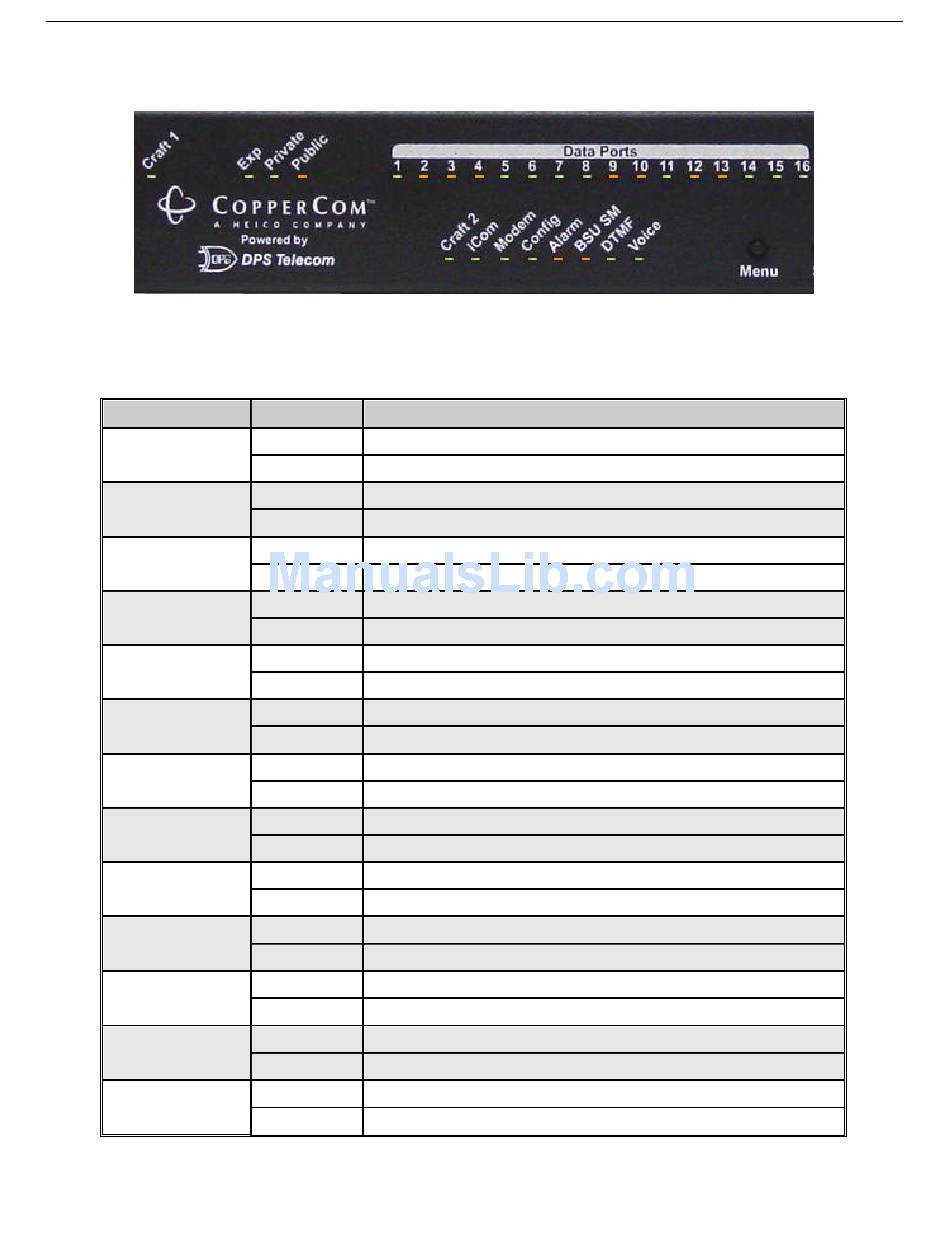

Fig. 10.1. Front panel LEDs
Status
Blink Green Transmit over upper craft port
Blink Red Receive over upper craft port
Blink Green Transmit to NetGuardian-16S Expansion
Blink Red Receive from NetGuardian-16S Expansion
Blink Green Transmit over Private Ethernet connection
Blink Red Receive over Private Ethernet connection
Blink Green Transmit over Public Ethernet connection
Blink Red Receive over Public Ethernet connection
Blink Green Transmit over indicated data port
Blink Red Receive over indicated data port
Blink Green Transmit over lower craft port
Blink Red Receive over lower craft port
Blink Green Lower board transmit to upper board
Blink Red Upper board transmit to lower board
Blink Green Transmit over modem
Blink Red Receive over modem
Blink Green Valid configuration
Blink Red Invalid configuration
Blink Red New COS alarm
Solid Red One or more standing alarms
Solid Red BSU Standalone Mode active
Off BSU Standalone Mode disabled
Blink Green DTMF tone transmit for Voice Call Out
Blink Red Receiving DTMF tones from Voice Call Out user's phone
Solid Green Voice Call Out voice playback active
Off Voice Call Out voice playback off
Table 10.A. Front panel LED Status message descriptions
Description
