31

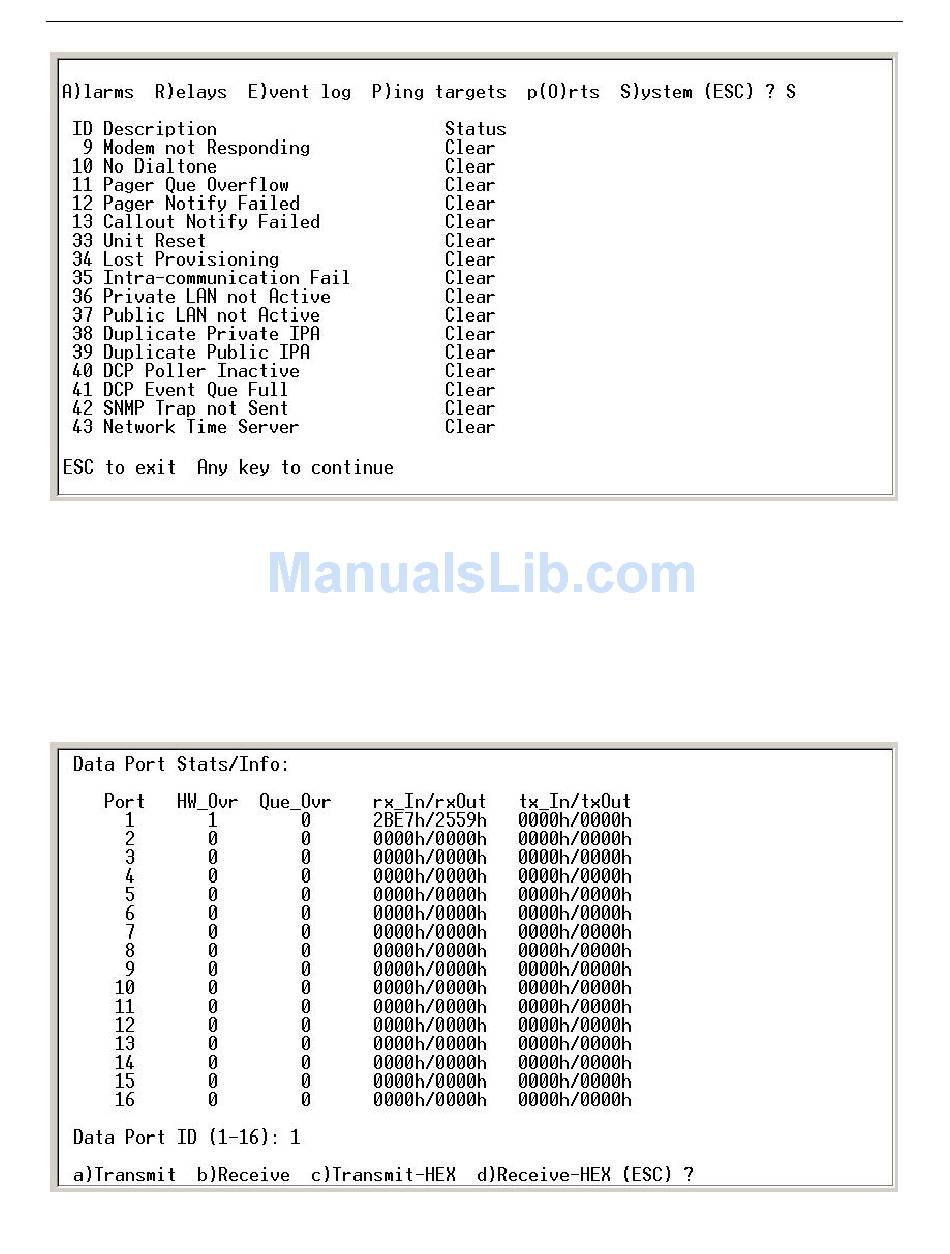

Fig. 13.3.1.5.1. System Alarms can be viewed from the M)onitor menu > S)ystem option

13.3.1.5 Monitoring Data Port Activity

View the status of the NetGuardian-16S's 16 data ports from the M)onitor menu > p(O)rts option. Enter the
number of the port you wish to view and press Enter.
The NetGuardian-16S provides an ASCII description under Transmit and Receive Choose a) Transmit to
.
view data transmitted to another device. Choose b) Receive to view data received from another device. See
Appendix, "ASCII Conversion," for specific ASCII symbol conversion.
