Alarm and Control Relay Connections

The NetGuardian-16S's discrete alarm inputs and control relay outputs are connected through the two 50-pin
connectors labeled "Discretes 1–24" and "Discretes 25–32/Relays 1–8" on the back panel. (See Figure 5.6.1.)

5.6.1 Alarm and Control Relay Connector Pinout Table

Discretes 1–25
RTN ALM
ALM 1 1 26
ALM 2 2 27
ALM 3 3 28
ALM 4 4 29
ALM 5 5 30
ALM 6 6 31
ALM 7
7 32
ALM 8
8 33
ALM 9
9 34
ALM 10
10 35
ALM 11
11 36
ALM 12 12 37
Table 5.6.1.A, above, shows the pinouts for the 50-pin connectors "Discretes 1–24" and "Discretes 25–32/Relays
1–8."
Note that the NetGuardian-16S's control relays can be set for either Normally Open or Normally Closed
operation. By factory default, all control relays are set to Normally Open. You can reset all relays for Normally
Closed operation at the hardware level by resetting a jumper on the NetGuardian-16S circuit board.
For instructions on resetting control relays for Normally Closed operation, see Section 5.10, "Jumper Options —
Switch Control Relays from Normally Open to Normally Closed."

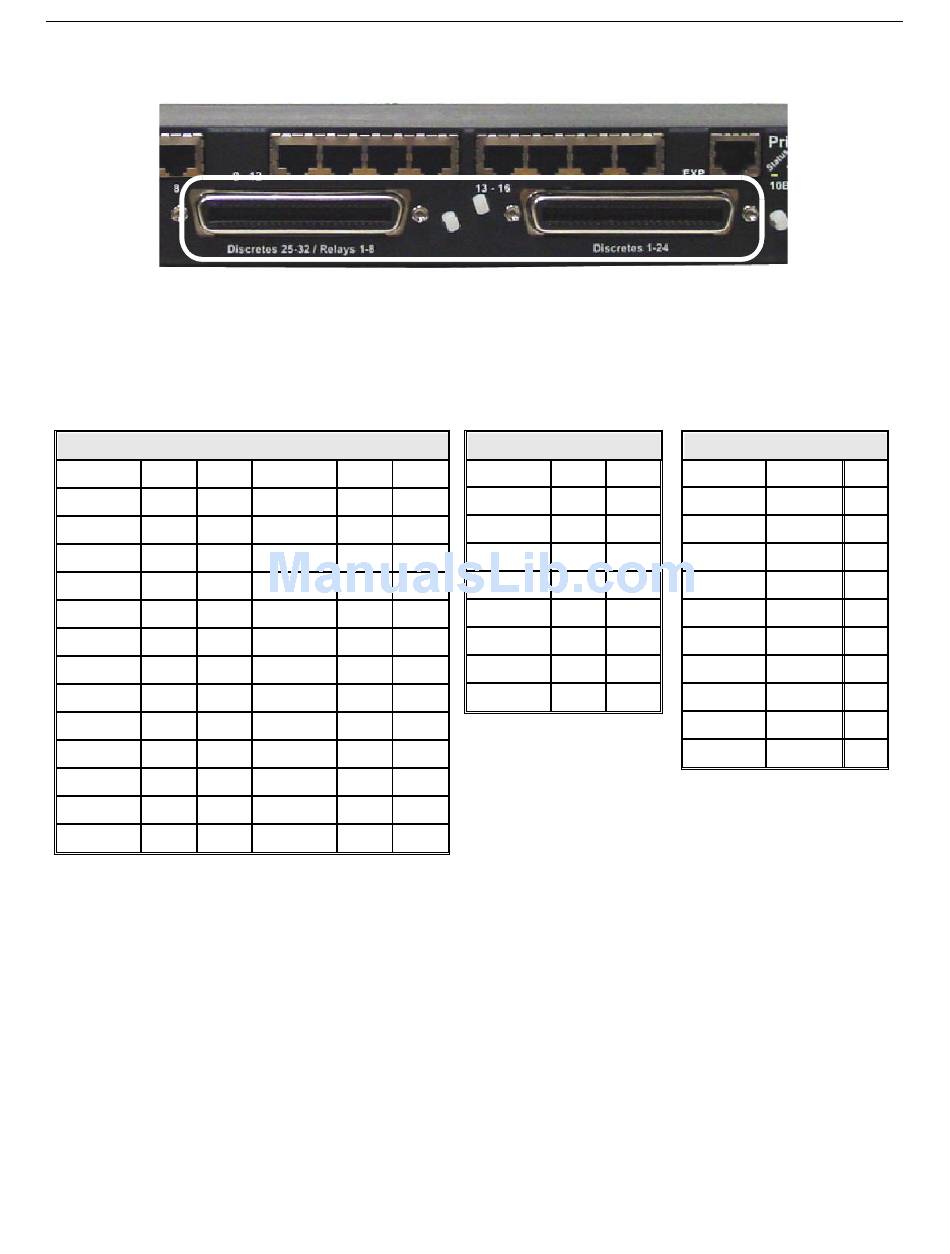

Fig. 5.6.1. Alarm and control relay connectors
RTN ALM
ALM 13 13 38
ALM 14 14 39
ALM 15 15 40
ALM 16 16 41
ALM 17 17 42
ALM 18 18 43
ALM 19
19 44
ALM 20
20 45
ALM 21
21 46
ALM 22
22 47
ALM 23
23 48
ALM 24 24 49
GND 25 50
Table 5.6.1.A. Alarm and control relay connector pinout
Discretes 25–32
RTN ALM
ALM 25 1 26
ALM 26 2 27
ALM 27 3 28
ALM 28 4 29
ALM 29 5 30
ALM 30 6 31
ALM 31 7 32
ALM 32 8 33
Control Relays 1–8
NO/NC CO
CTRL 1 9 34
CTRL 2 10 35
CTRL 3 11 36
CTRL 4 12 37
CTRL 5 13 38
CTRL 6 14 39
CTRL 7 15 40
CTRL 8 16 41
FUSE 17 42
GND 25 50
