5.7

Data Ports

The NetGuardian-16S's 16 data ports provide reach-through terminal server functionality for connecting multiple
simultaneous users to external equipment via Telnet over LAN. Each port can function as a proxy connection to
an external device, a craft port, a channel port, a TCP or UDP reach-through port. The NetGuardian-16S can
support simultaneous proxy connections for up to five users.
The pinout for Data Ports 1–16 is shown in Figure 5.7.2, above.
5.8

NetGuardian Expansion Port

The EXP port (see Figure 5.8.1) connects the NetGuardian-16S to a NetGuardian-16S DX Expansion Unit. Up to
three NetGuardian-16S DX Expansion Units can be daisy-chained from the NetGuardian-16S. Each
NetGuardian-16S DX adds 48 discrete alarm points, or 48 discrete alarms and 8 control relays, to the
NetGuardian-16S, for configurations of:
·
1 NetGuardian-16S DX Expansion Unit: 80 discrete alarms and (optional) 16 control relays
· 2 NetGuardian-16S DX Expansion Units: 128 discrete alarms and (optional) 24 control relays
· 3 NetGuardian-16S DX Expansion Units: 176 discrete alarms and (optional) 32 control relays
To order NetGuardian-16S DX Expansion units, call DPS Telecom at 1-800-622-3314.

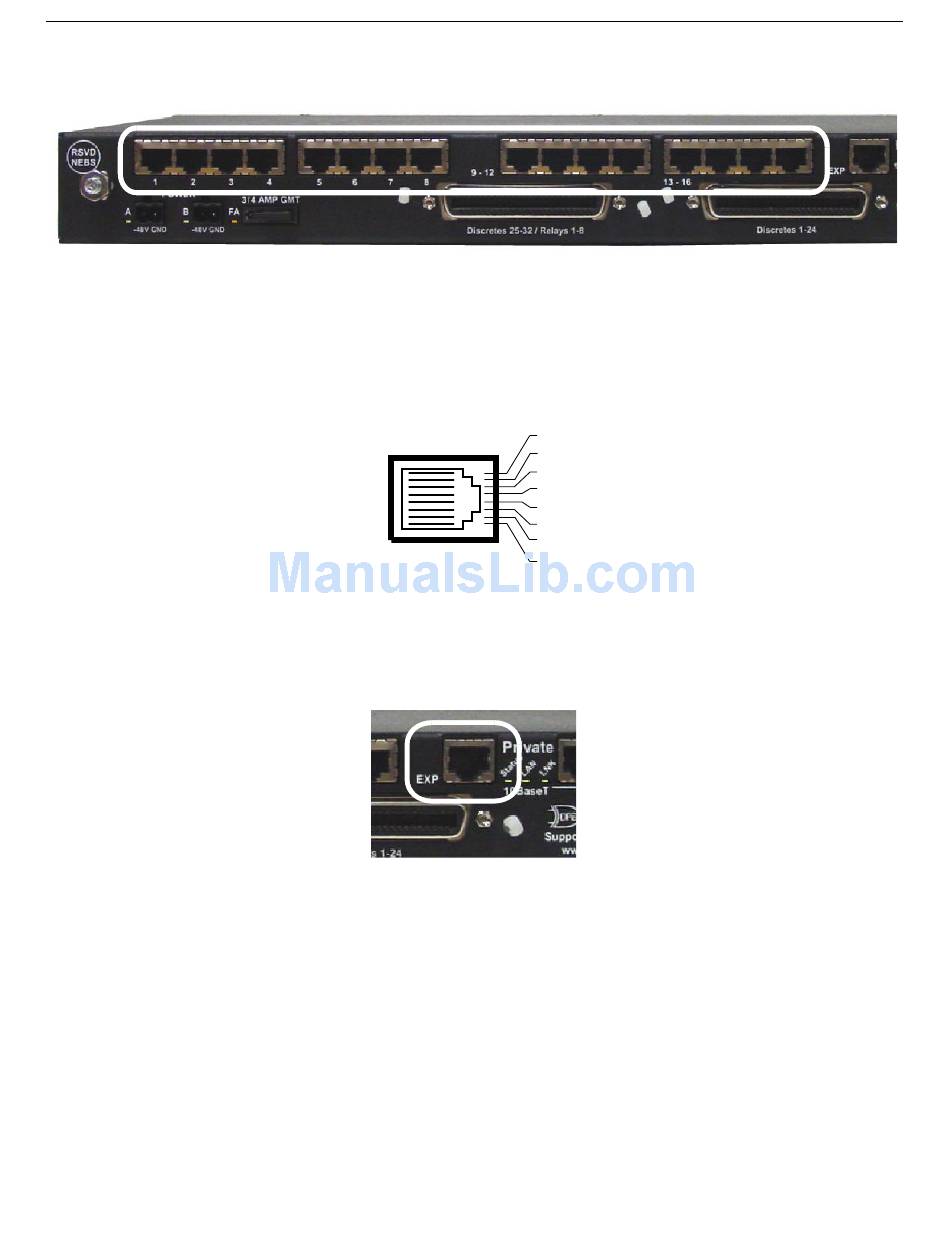

Fig. 5.7.1. Data ports 1–16
RJ45 RS-232 Serial Port
Fig. 5.7.2 Data port pinout
Fig. 5.8.1. NetGuardian-16S Expansion port
8 RTS
7
6 TXD
5 GND
4 GND
3 RXD
2
1 CTS
