14.5.5 Controls

Clicking the Controls link in the Monitor menu opens the Controls page (see Figure 12.5.5.1, above),. From this
page you can operate the NetGuardian-16S's eight control relays.
The Controls page lists each control relay by its ID number and the description configured by the system
administrator.
To operate a control relay:
1. Choose an operation from the relay's drop-down menu in the State column. For each relay, the choices
are:
· Opr (operate):
· Rls (release):
· Mom (momentary):Latch the relay for 600 msec
2. Click the Submit Data button to issue the control.
Caution: Relays are normally controlled by the Coppercom Controller.

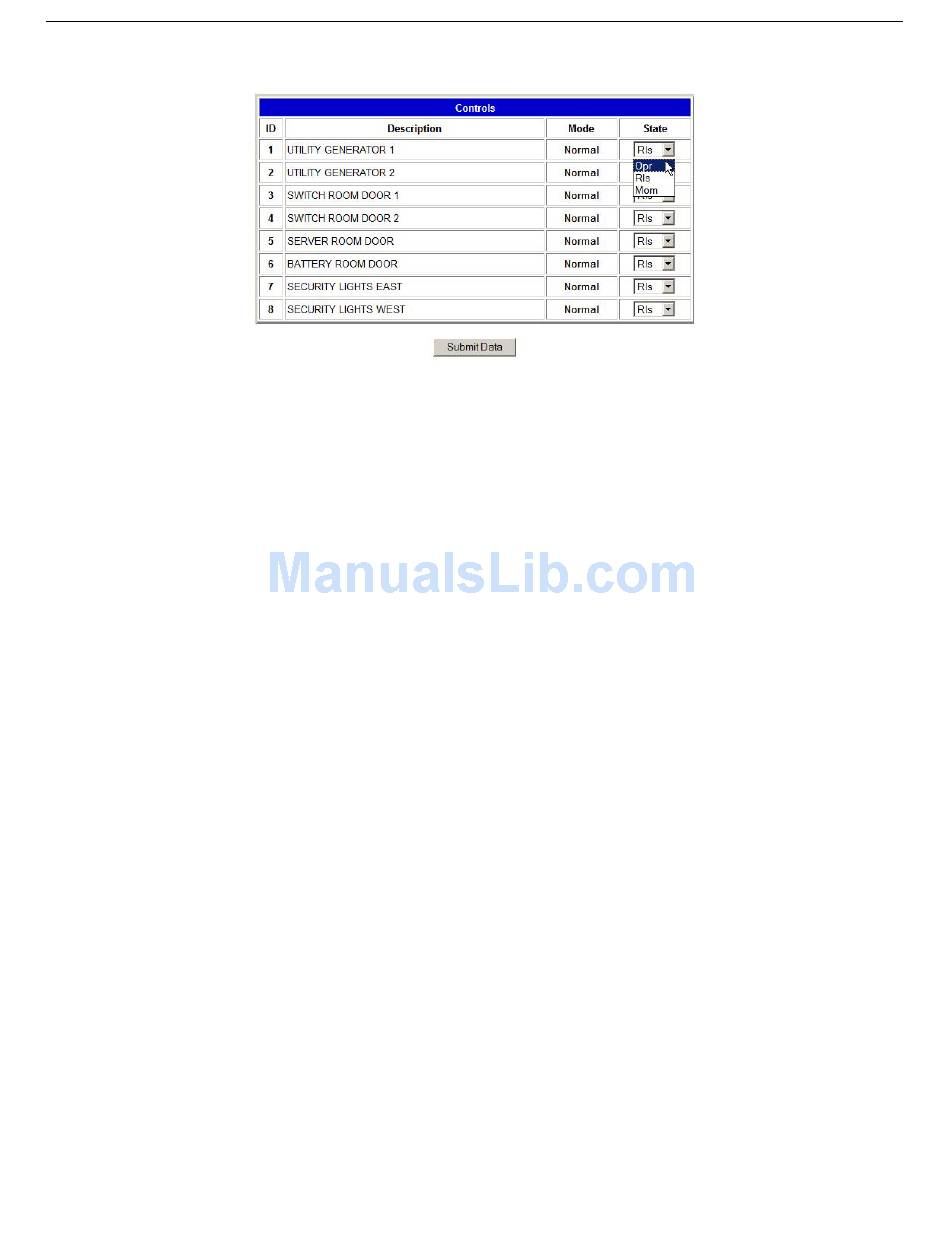

Fig. 14.5.5.1. Controls page
Latch the relay
Unlatch the relay
