10
5.6.3 Discretes 25–32/Relays 1–8 Connector Pinout Diagram

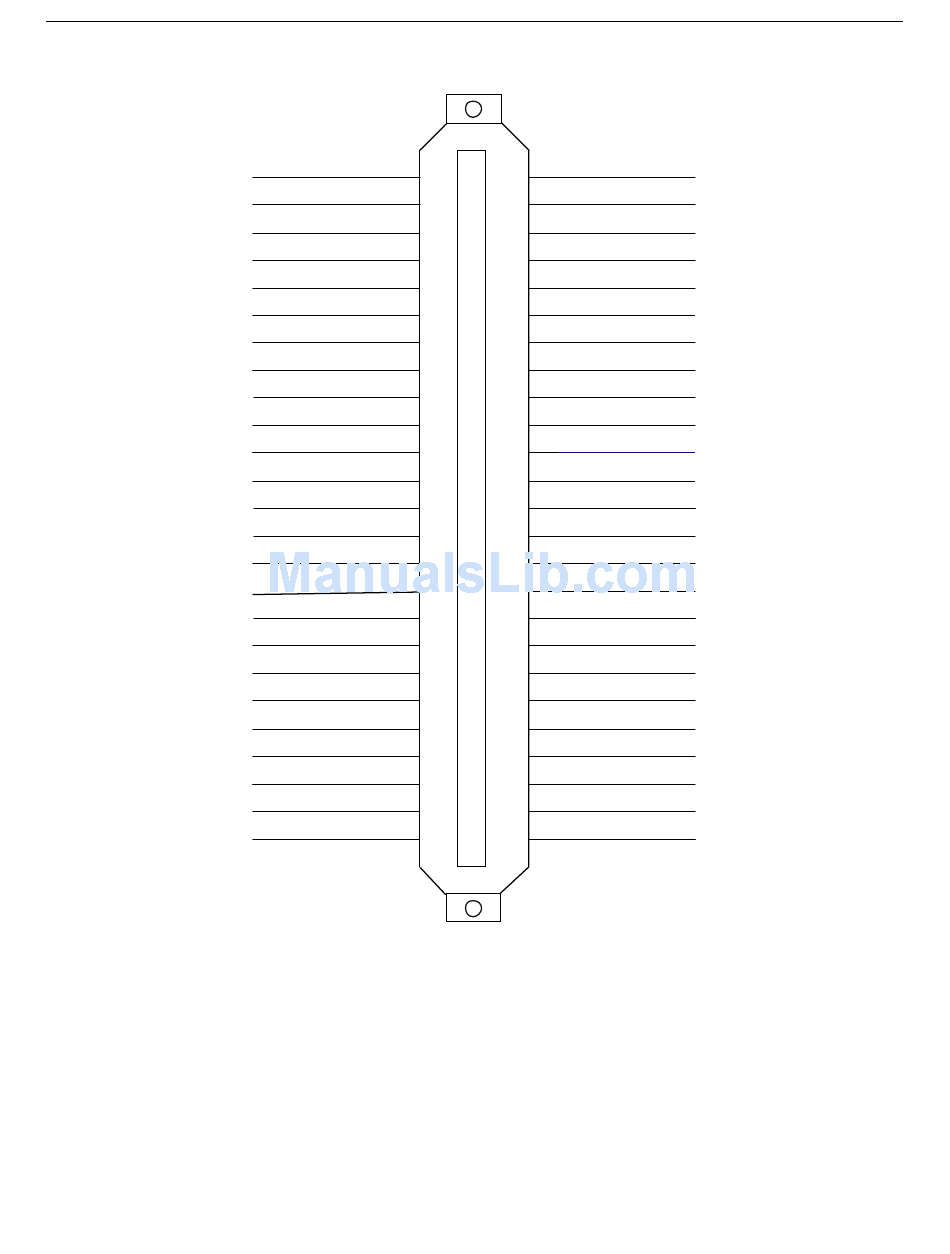

Fig. 4.6.3.1. Pinout Diagram for Discretes 25–32/Relays 1–8 connector
RTN 25
1
RTN 26
2
RTN 27
3
RTN 28
4
RTN 29
5
RTN 30
6
RTN 31
7
RTN 32
8
CTRL 1 NO
9
CTRL 2 NO
10
CTRL 3 NO
11
CTRL 4 NO
12
CTRL 5 NO
13
CTRL 6 NO
14
CTRL 7 NO
15
CTRL 8 NO
16
FUSE NO
17
Unused
18
19
Unused
Unused
20
Unused
21
Unused
22
Unused
23
24
Unused
GND
25
26
ALM 25
27
ALM 26
28
ALM 27
29
ALM 28
30
ALM 29
31
ALM 30
32
ALM 31
33
ALM 32
34
CTRL 1 CO
35
CTRL 2 CO
36
CTRL 3 CO
CTRL 4 CO
37
38
CTRL 5 CO
CTRL 6 CO
39
40
CTRL 7 CO
41
CTRL 8 CO
42
FUSE CO
43
Unused
44
Unused
45
Unused
46
Unused
47
Unused
48
Unused
49
Unused
50
GND
