Installation
5.1
Tools Needed
To install the NetGuardian-16S, you'll need the following tools:
Phillips No. 2 Screwdriver
PC with Edit16S software
5.2
Mounting
The NetGuardian-16S mounts in a 19" rack or a 23" rack using the provided rack ears for each size. Two rack ear
locations are provided. Attach the appropriate rack ears in the flush-mount or rear-mount locations shown in
Figure 5.2.1.
Note: Rack ears can be rotated 90° for wall mounting or 180º for other mounting options (not shown).

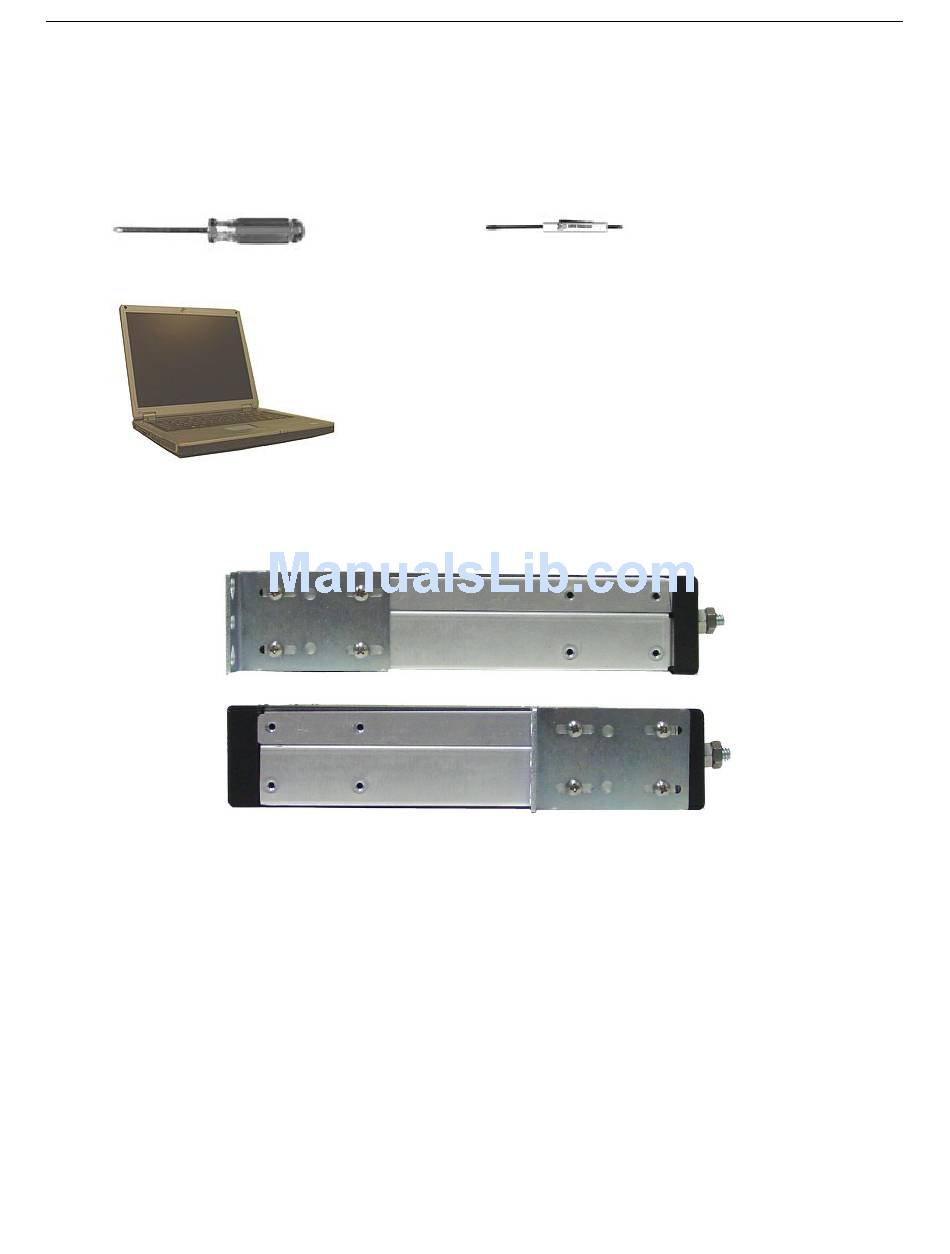

Fig. 5.2.1. The NetGuardian-16S can be flush or rear-mounted
Small Standard No. 2 Screwdriver
