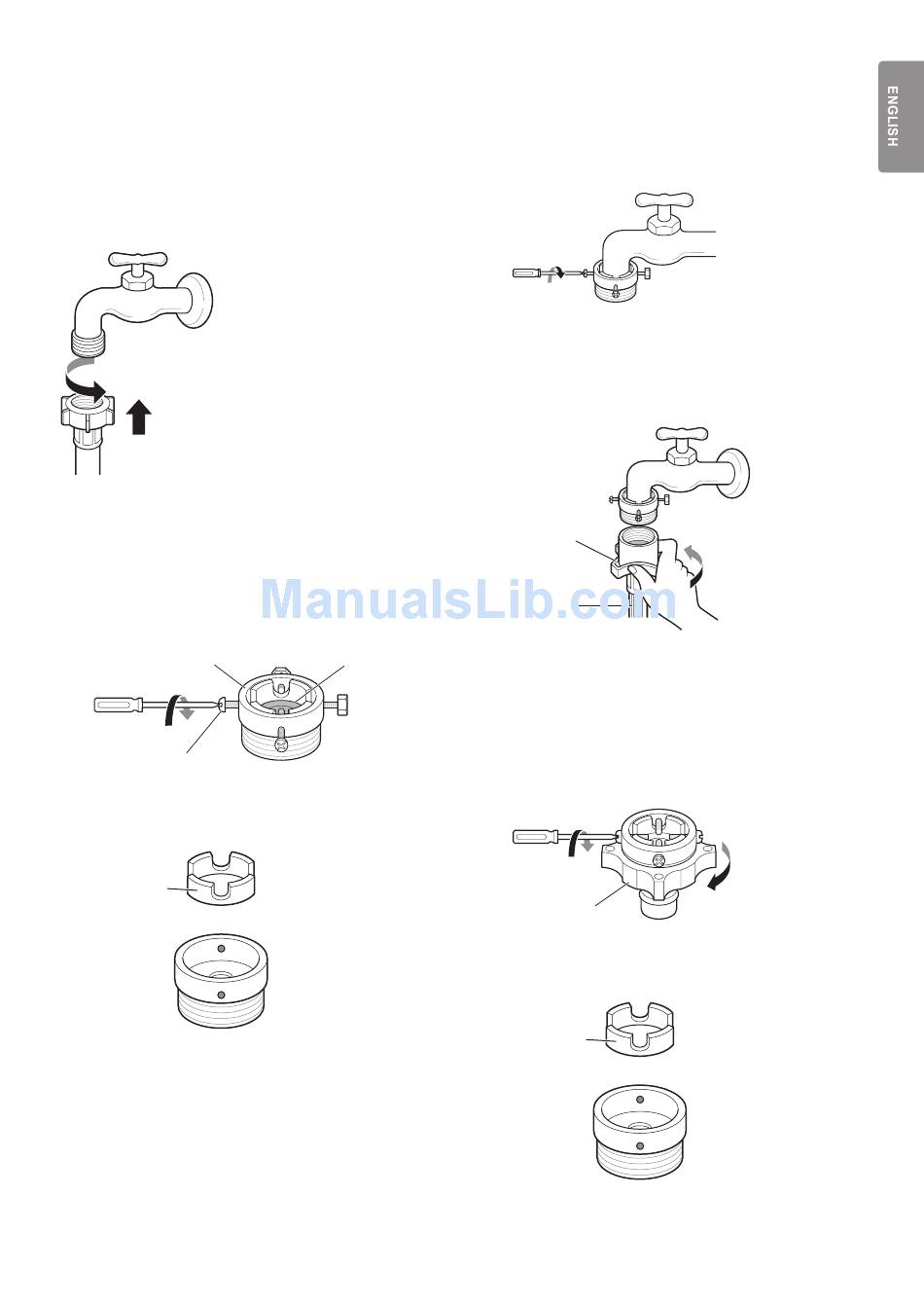

Connecting Hose to Water Tap
Connecting Screw-Type Hose to Tap with
Thread
Screw the hose connector onto the water supply tap.
Connecting Screw-Type Hose to Tap Without
Thread
1
Loose the four fixing screws.
Upper
connector
Fixing screw
2
Remove the guide plate if the tap is too large to fit
the adapter.
Guide plate
3
Push the adapter onto the end of the tap so that
the rubber seal forms a watertight connection.
Tighten the four fixing screws.
4
Push the inlet hose vertically upwards so that the
rubber seal within the hose can adhere completely
to the tap and then tighten it by screwing it to the
right.
Rubber
seal
Connecting One Touch Type Hose to Tap
Without Thread
1
Unscrew the adapter ring plate and loose the four
fixing screws.
2
Remove the guide plate if the tap is too large to fit
the adapter.
Plate
Inlet hose
Ring plate
Guide plate
13
