If the inverter is not connected to the distribution grid, when you attempt to
perform one of these tests the following message will appear:
5.5.6.10

Alarm

The inverter is equipped with an alarm system which allows for the switchover of a
relay contact (available both as a contact normally set open - N.O. - and as a
contact normally set closed– N.C.). The relay contacts are accessible from the front
cover as shown in Fig
acoustic or visual alarm. In any case, the contact voltage/current rating of 230V/1A
must not be exceeded.
This function can activate different modes of alarm. By pressing the ENTER key,
you can access the following submenu.
The selected entry will be highlighted by an arrow on the left-hand side of the
display. Change the selection by using the UP / DOWN keys and press ENTER to
confirm it.
PRODUCTION: the relay is switched over only activated when the
inverter is connected to the grid.
Inv.not tied
Test impossible!
.

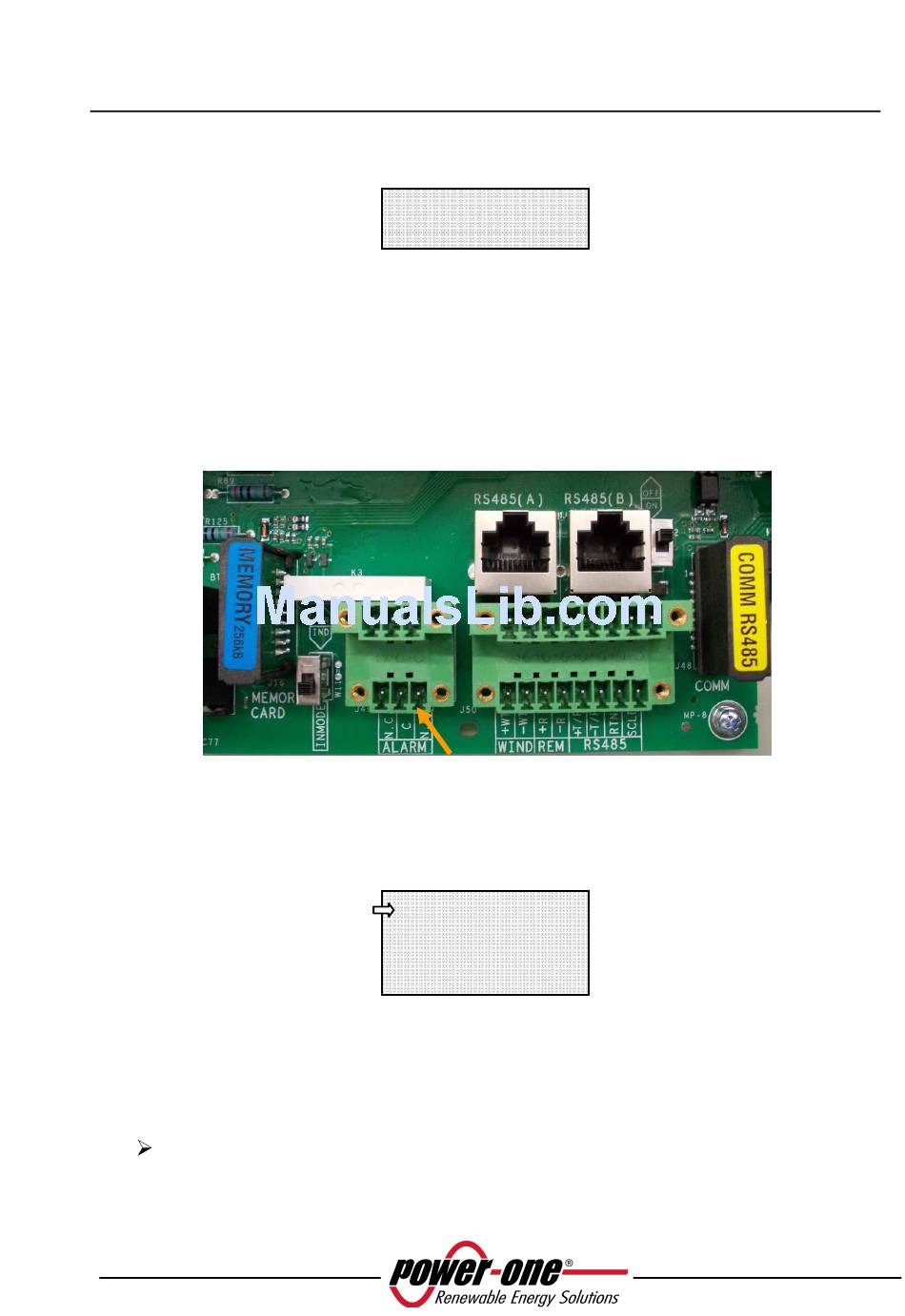

22. This contact can be used, for example, to activate an
Fig. 22 - Alarm contact terminal block
Production
Alarm
Alarm (conf.)
Twilight
