Procedure For Accessing The Internal Terminal Blocks By Removing The - Power One Aurora PVI-10.0-I-OUTD-S-400 Installation And Operating Manual

Use and installation manual
(PVI-10.0/12.0-I-OUTD(-S)-400 Rev:1.3)
WARNING: To avoid the risk of electric shock, wait for at least 5
minutes after disconnecting the AC and DC switches before opening the
inverter front panel.
WARNING: When selecting cables, several factors have to be
considered, as they must be in compliance with the national regulations:
nominal voltage, isolation rating, maximum operating temperature,
current rating, and flammability rating.
When selecting cable cross-section, refer to paragraph 3.4.3.
3.4.2 Procedure for accessing the internal terminal blocks by
removing the front cover
WARNING: before removing the front cover, ensure that AURORA has
been disconnected from both the AC and DC sides for at least 5 minutes,
in order to allow for the internal capacitors to discharge, and thus to
avoid the risk of electrocution.

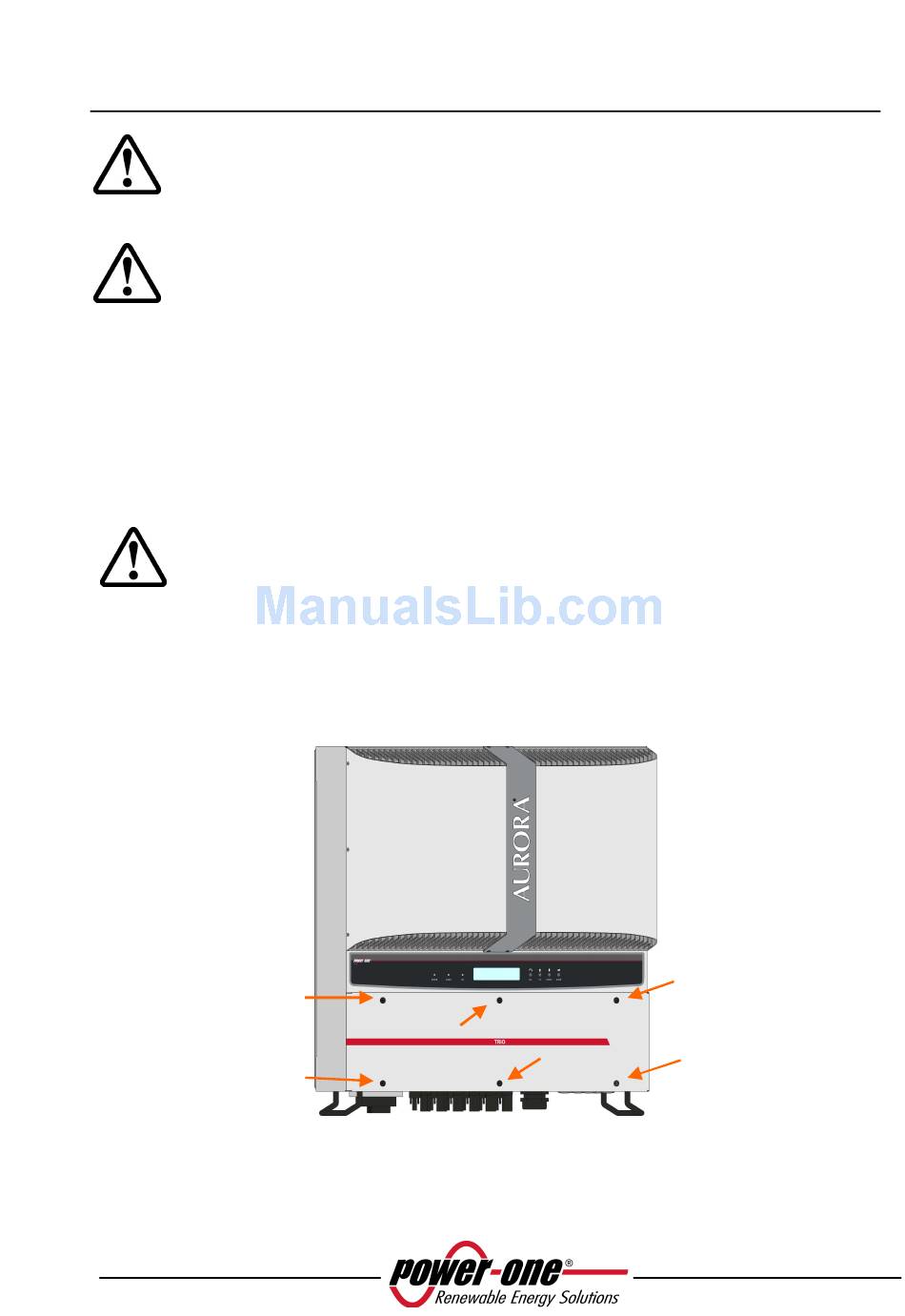

To remove the front cover, loosen the 6 screws shown in Fig. 9, using the Torx
screwdriver provided.
1
2
6
Fig. 9 - Front panel of the inverter
Page
3
