Use and installation manual
(PVI-10.0/12.0-I-OUTD(-S)-400 Rev:1.3)

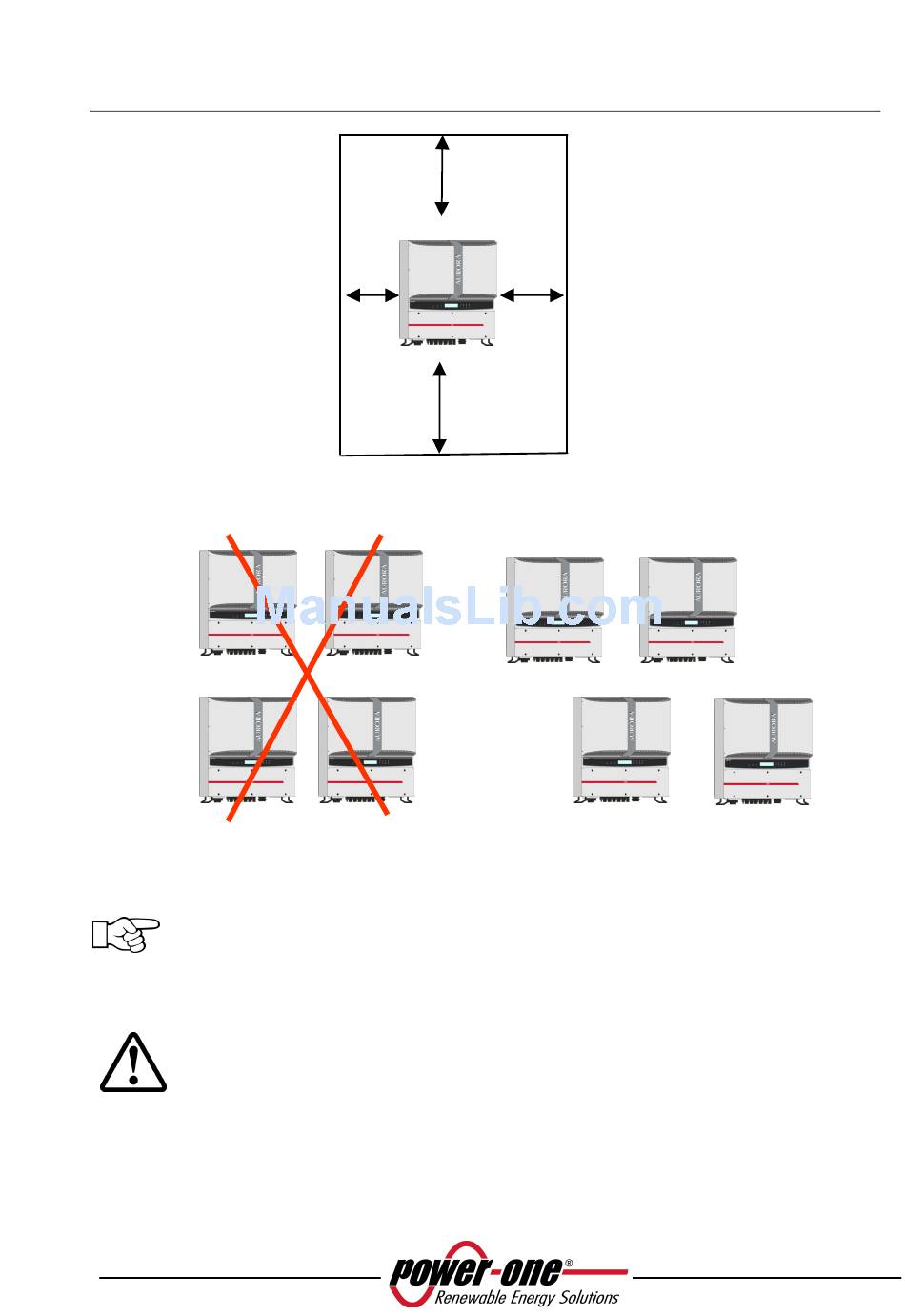

Fig. 4 - Installation location - Minimum clearances around AURORA
Fig. 5 - Recommended installation of AURORA inverters
NOTE:
that this may reduce performance (Derating), due to a reduction in heat
dissipation.
WARNING: During operation, the unit surface may become very hot.
To avoid burns, DO NOT touch the surface.
150mm (6")
50mm
(2")
Although titled mounting is possible (see Fig. 6), please note
150mm
.(6")
200mm (8")
RECOMMENDED POSITIONING
21
97
