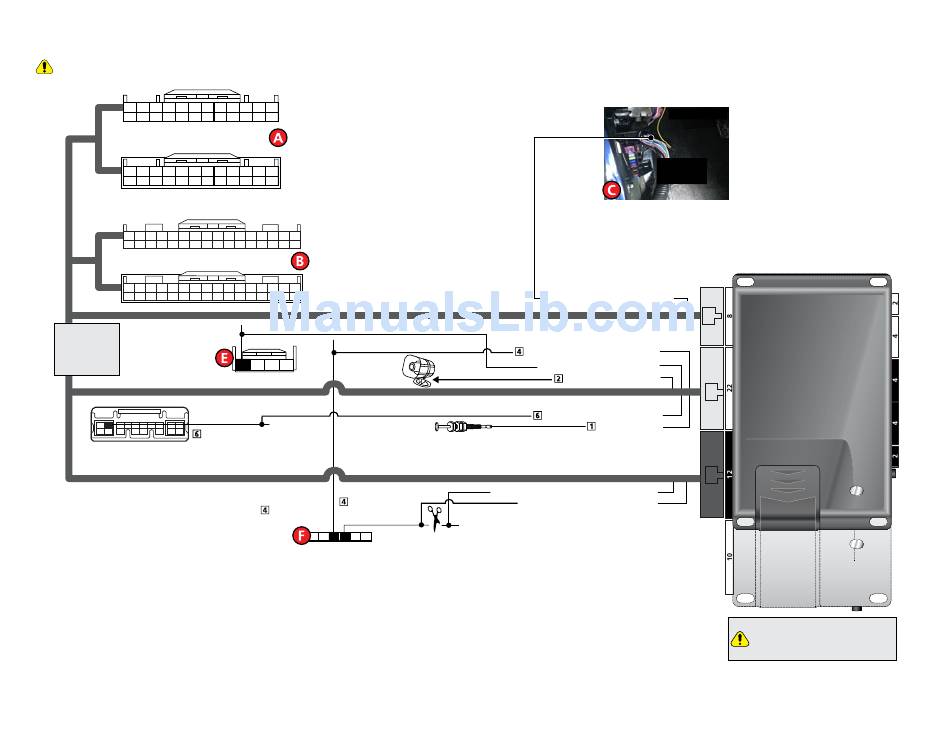

Type 2 - with THMAN1 T-Harness

Refer to "Pre-installation and application warnings" on page 4 and "Vehicle wiring reference chart" on page 13 for important information on this installation.
Start/Stop Unit
(White conn. at steering column)
Start/Stop Unit
(White conn. at steering column)
T-Harness (-) Trunk Release:
Green/Red, pin 1
Relays
(White conn. in driver dash)
1 2 3 4 5 6 7 8 9 10
1112 13 14 15 16 17 18
(+) Trunk Release Actuator:
Green or Brown, pin 2
Trunk Release Actuator conn.
(Blue conn. at left rear quarter panel)
11
THMAN1
(optional T-Harness)
1 2 3 4
Trunk Release Switch
Siren
Parking Lights
(-) Parking Lights: Interrupt:
Yellow, pin 3 Green, pin 4
1 2 3 4 5 6
Parking Light
Switch Assembly
(MUX) Door Lock Output: Violet/Brown
(-) Parking Lights Output: Lt.Green/Black
(-) Trunk Release Output: Red/White
(+) Siren Output: Brown/Red
(+) Trunk Shunt Input: Orange/Black
Hood Pin
Parking Light Interrupt (vehicle side): Blue/White
Parking Light Interrupt (conn. side): Blue
Cut
Driver Kick Panel
Factory Alarm/
Door Lock:
White/Green
(-) Hood Input: Gray
It is important to check that the
fuses are positioned correctly. See
Fuse selection on the next page for
more information.
DS4
DS4+
DS4+ MA3
