Type 3 - With Thman1 T-Harness - Directed DS4+ Installation Manual

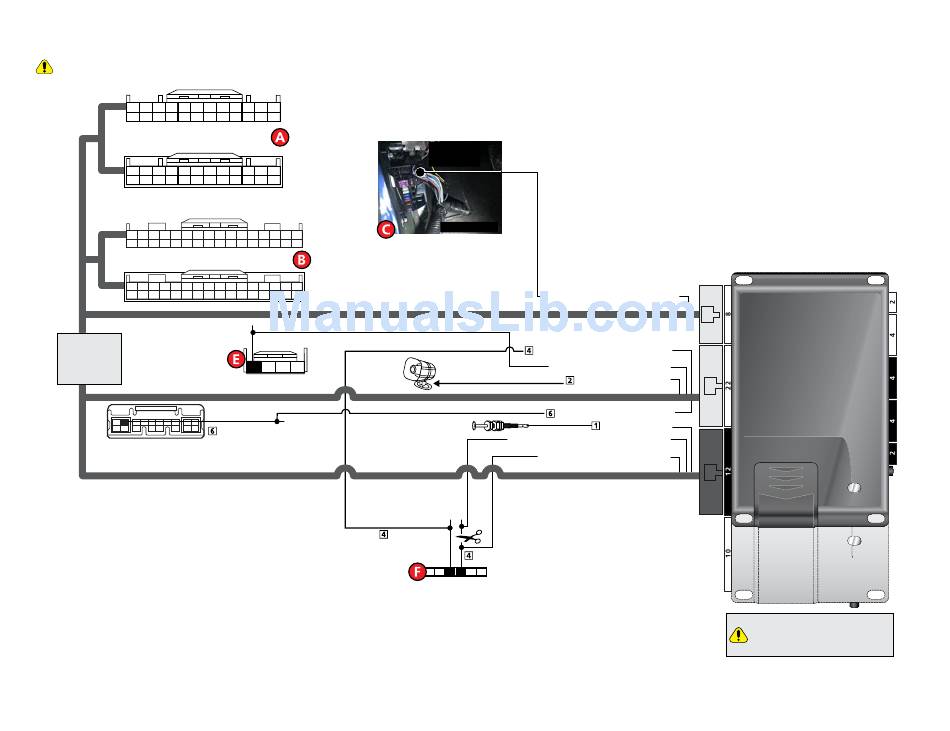

Type 3 - with THMAN1 T-Harness

Refer to "Pre-installation and application warnings" on page 4 and "Vehicle wiring reference chart" on page 16 for important information on this installation.
Start/Stop Unit
(White conn. at steering column)
Start/Stop Unit
(White conn. at steering column)
T-Harness
Relays
2
1 3 4 5 6 7 8 9 10
1112 13 14 15 16 17 18
Trunk Release Actuator conn.
(Blue conn. at left rear quarter panel)
14
THMAN1
(optional T-Harness)
(-) Trunk Release: White, pin 1
1 2 3 4
Trunk Release Switch
Siren
(White conn. in driver dash)
(+) Trunk Release Actuator:
Blue, pin 2
(-) Parking Lights:
Factory Alarm/
Door Lock:
Lt.Blue
Driver Kick Panel
(MUX) Door Lock Output: Violet/Brown
(-) Parking Lights Output: Lt. Green/Black
(-) Trunk Release Output: Red/White
(+) Siren Output: Brown/Red
(+) Trunk Shunt Input: Orange/Black
Hood Pin
Parking Light Interrupt (vehicle side): Blue/White
Parking Light Interupt (conn. side): Blue
Yellow, pin 3
Parking Lights Interrupt:
Green, pin 4
1 2 3 4 5 6
Parking Light
Switch Assembly
(-) Hood Input: Gray
It is important to check that the
fuses are positioned correctly. See
Fuse selection on the next page for
more information.
