Chapter 1: Product Introduction

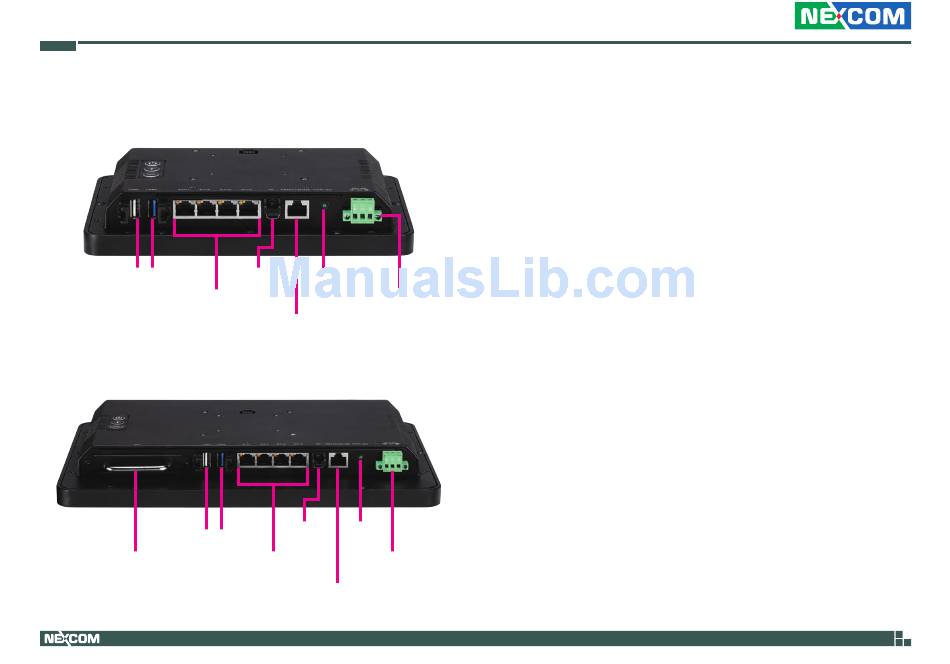

Rear Bottom

(M)PPC-080T-BT-01
USB 2.0 USB 3.0
LAN 1 to LAN 4
Ports

(M)PPC-120T-BT-01/02

USB 2.0 USB 3.0
2.5" Storage
Drive Tray
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
MiniDP
Power
LED
24V
DC Input
RJ45 Type Console
Serial Port
MiniDP Power
LED
LAN 1 to LAN 4 24V
Ports
DC Input
RJ45 Type Console
Serial Port
2.5" Storage Drive Tray [For (M)PPC-120T-BT-01/02]
Removable storage drive tray used to install a 2.5" HDD/SSD.
USB 2.0
Used to connect the system with USB 2.0/1.1 devices.
USB 3.0
Used to connect the system with USB 3.0/2.0 devices.
LAN 1 to LAN 4 Ports
Used to connect the system to a local area network.
Mini DisplayPort
Used to connect a Mini DisplayPort interface monitor.
RJ45 Type Console Serial Port
Used to connect console devices with RJ45 type connection.
Power LED
Indicates the power status of the system.
24V DC Input
Used to plug a DC power cord.
6
(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual
