Chapter 2: Jumpers and Connectors

Jumpers and DIP Switch Settings

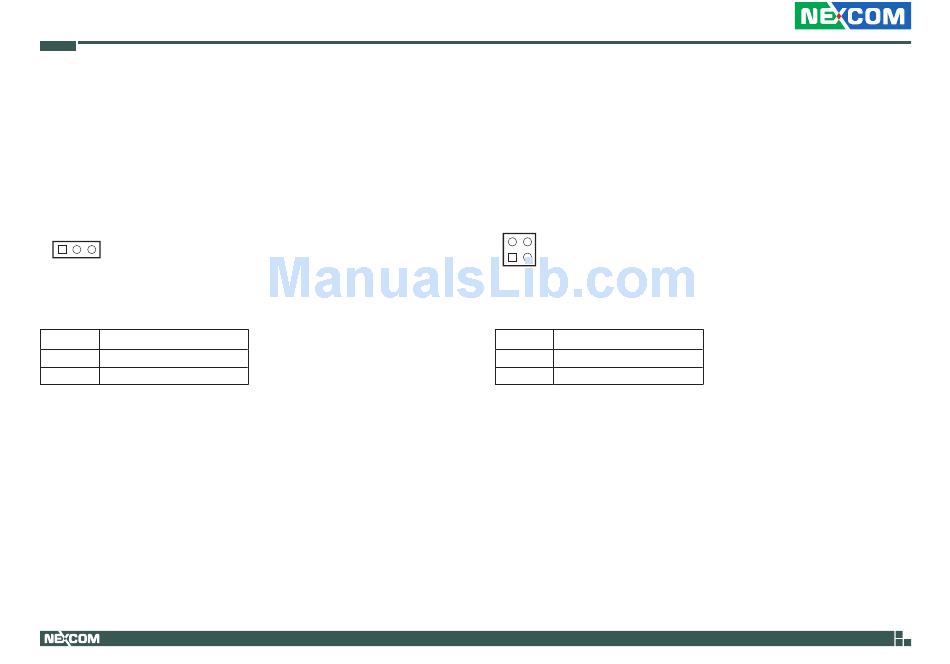

RTC Clear Select

Connector type: 1x3 3-pin header, 2.0mm pitch
Connector location: JP4
1 3
Pin Settings
1-2 On Normal
2-3 On RTC Clear
1-2 On: default
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.

PWN Mode Power Select

Connector type: 2x2 4-pin header, 2.0mm pitch
Connector location: JP3
3 4
1 2
Pin Settings
1-2 On VCC3
3-4 On VCC5
1-2 On: default
13
(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual
