Chapter 3: System Setup

VESA Mounting

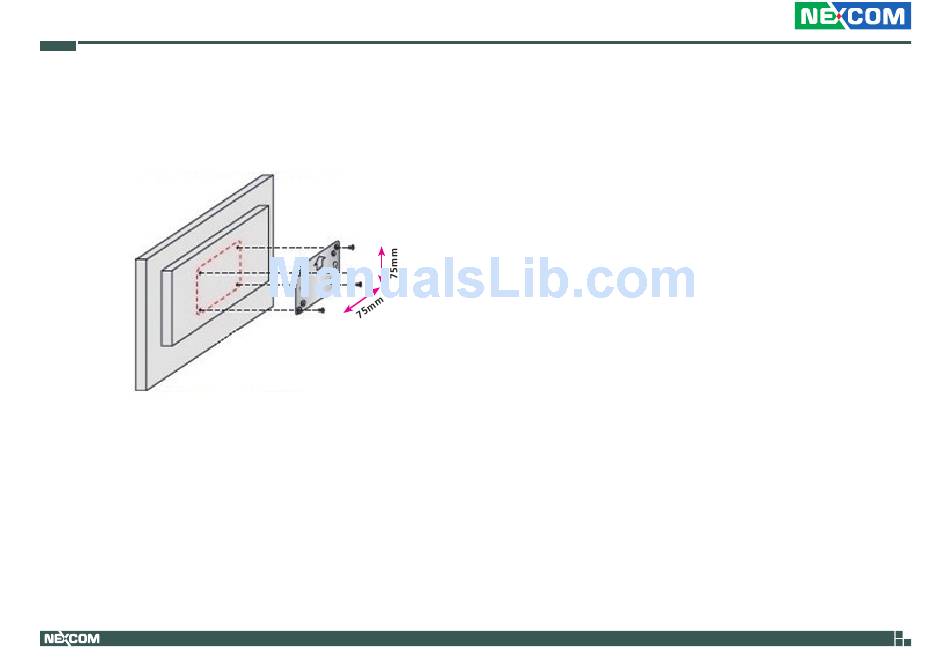

1. The VESA mounting measurements are shown as below.
(M)PPC-080T-BT-01: 75mm x 75mm
(M)PPC-120T-BT-01/02: 75mm x 75mm
42
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
(M)PPC-080T-BT-01 and (M)PPC-120T-BT-01/02 User Manual
