Chapter 2: Jumpers and Connectors

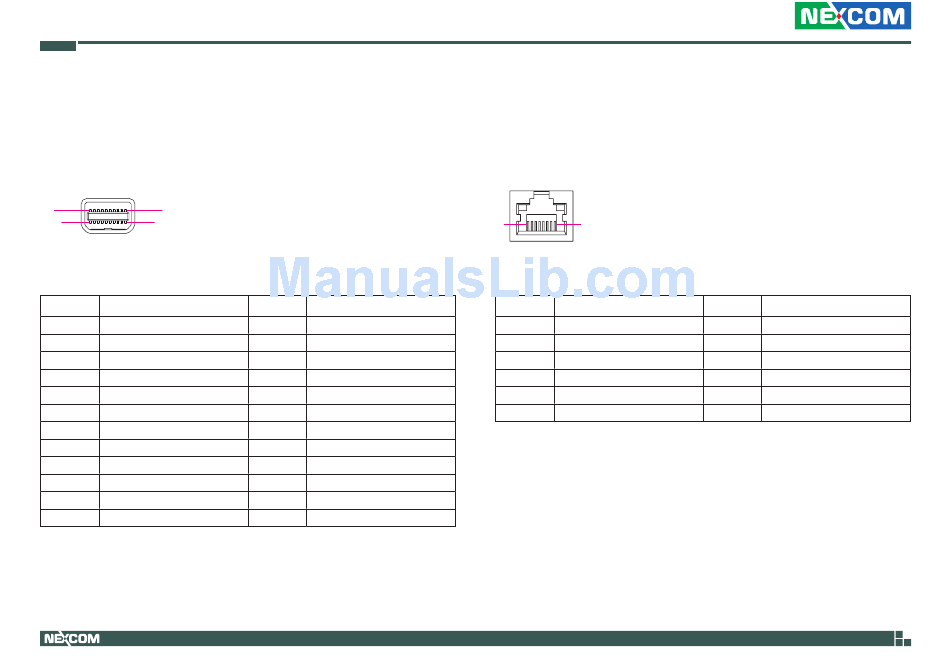

Mini DisplayPort

Connector type: Mini DisplayPort
Connector location: CN7
19 1
20 2
Pin Definition
1 GND
3 M_DDI1TX0P
5 M_DDI1TX0N
7 GND
9 M_DDI1TX1P
11 M_DDI1TX1N
13 GND
15 M_DDI1TX2P
17 M_DDI1TX2N
19 DP_RETURN
MH1 CHASSIS_GND
MH3 CHASSIS_GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 DP_HPD
4 DP_CONFIG1
6 DP_CONFIG2
8 GND
10 M_DDI1TX3P
12 M_DDI1TX3N
14 GND
16 AUX_SW_P
18 AUX_SW_N
20 3.3V
MH2 CHASSIS_GND
MH4 CHASSIS_GND

Serial Console Port

Connector type: RJ45 port
Connector location: CN8
8 1
Pin Definition
1 NC
3 SP1_DSR
5 SP1_RTS
7 SP1_CTS
9 GND
MH1 GND
18
Pin Definition
2 SP1_DCD
4 SP1_RXD
6 SP1_TXD
8 SP1_DTR
10 SP1_RI
MH2 GND
