Chapter 2: Jumpers and Connectors

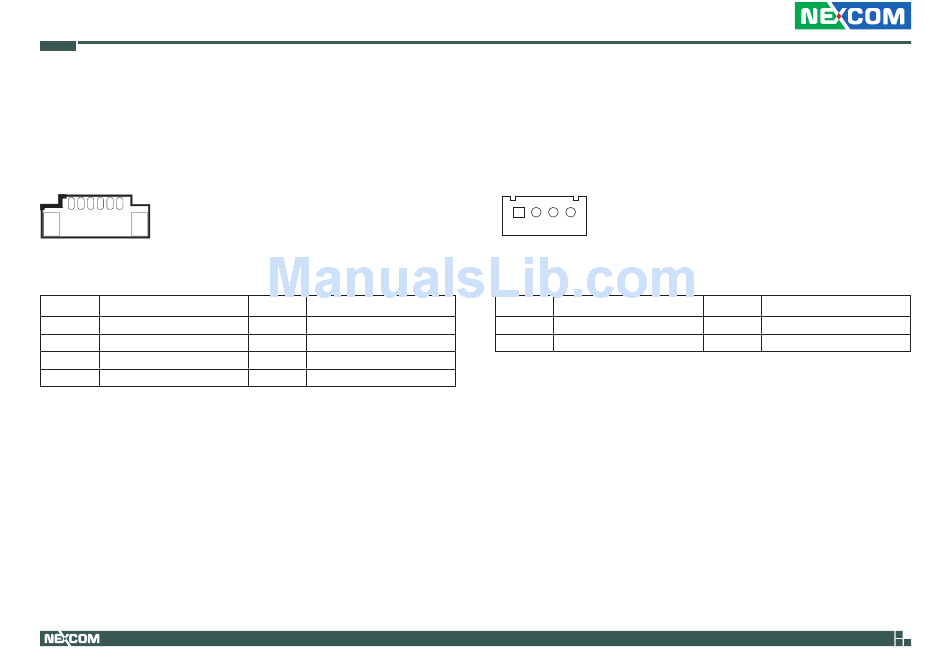

Light Sensor Connector

Connector type: 1x6 6-pin header, 1.25mm pitch
Connector location: J6
1 6
Pin Definition
1 NC
3 GND
5 EC_I2C_CLK
MH1 GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 3VSB
4 EC_I2C_DATA
6 INT
MH2 GND

Power In Connector

Connector type: 1x4 4-pin header, 2.5mm pitch
Connector location: CN1
1 4
1 4
Pin Definition
1 GND
3 12VSB
22
Pin Definition
2 GND
4 12VSB
