Chapter 4: BIOS Setup

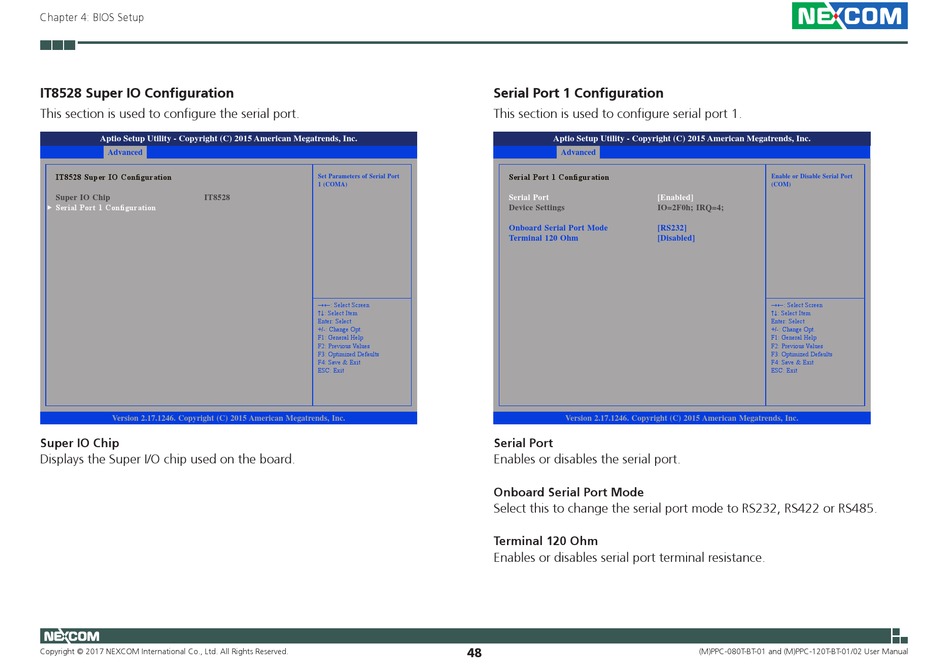

IT8528 Super IO Configuration
This section is used to configure the serial port.
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
Advanced
IT8528 Super IO Configuration
Super IO Chip IT8528
Serial Port 1 Configuration

Version 2.17.1246. Copyright (C) 2015 American Megatrends, Inc.
Super IO Chip
Displays the Super I/O chip used on the board.
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Serial Port 1 Configuration
This section is used to configure serial port 1.
Set Parameters of Serial Port
1 (COMA)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Serial Port
Enables or disables the serial port.
Onboard Serial Port Mode
Select this to change the serial port mode to RS232, RS422 or RS485.
Terminal 120 Ohm
Enables or disables serial port terminal resistance.
48
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
Advanced
Serial Port 1 Configuration
Serial Port [Enabled]
Device Settings IO=2F0h; IRQ=4;
Onboard Serial Port Mode [RS232]
Terminal 120 Ohm [Disabled]
Version 2.17.1246. Copyright (C) 2015 American Megatrends, Inc.
Enable or Disable Serial Port
(COM)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
