Chapter 2: Jumpers and Connectors

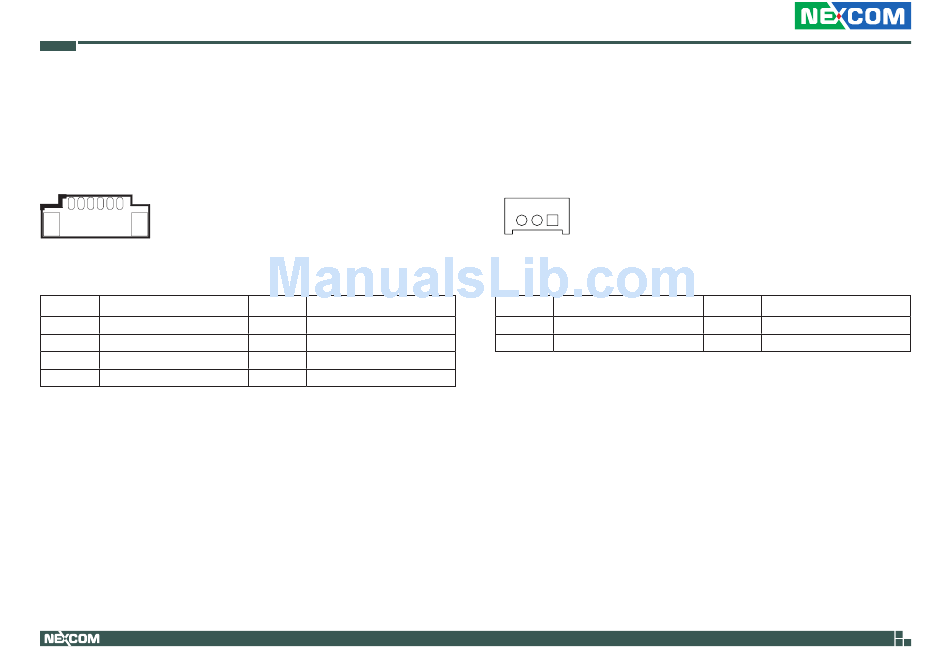

PWRBT/RESET/Dimming Control Connector

Connector type: 1x6 6-pin header, 1.25mm pitch
Connector location: J8
1 6
Pin Definition
1 ATXBT#
3 EC_BLUP
5 RSTBTN#
MH1 GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 EC_BLDN
6 GND
MH2 GND

FAN Connector

Connector type: 1x3 3-pin header, 1.0mm pitch
Connector location: J1
3 1
Pin Definition
1 GND
3 FAN_12V_FB
23
Pin Definition
2 FAN_12V
