Chapter 2: Jumpers and Connectors

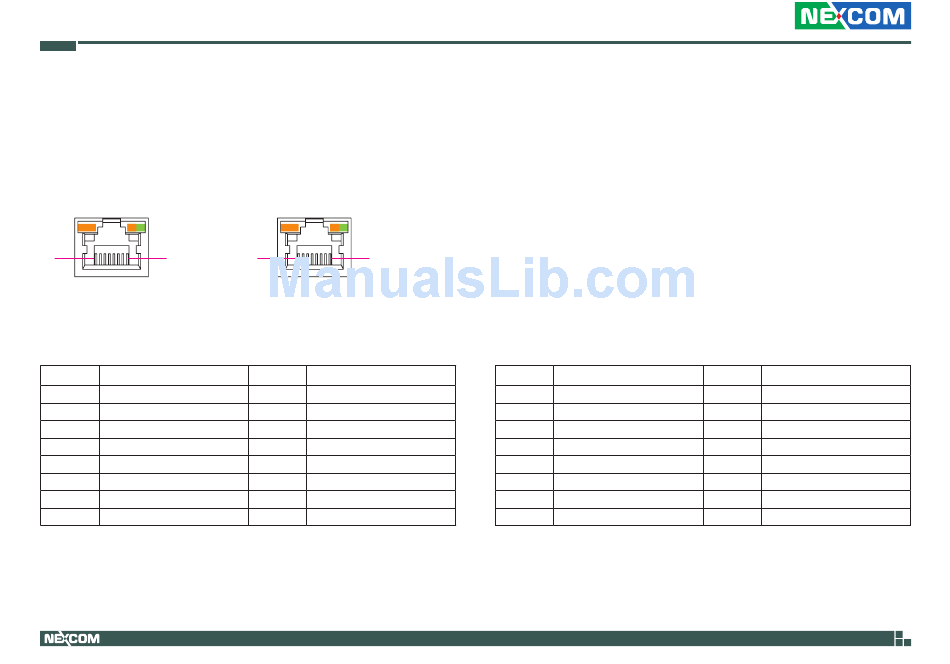

LAN3 to LAN4 Ports

Connector type: RJ45 port with LEDs
Connector location: LAN1
ACT LINK
C8 C1
LAN3
LAN3
Pin Definition
C1 LAN3_MDI0P
C3 LAN3_MDI1P
C5 LAN3_TCTG
C7 LAN3_MDI2P
C9 LAN3_MDI3P
C11 LAN3_LEDACT#
C13 LAN3_LINK1G#
MH3 CHASSIS_GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
ACT LINK
D8 D1
LAN4
Pin Definition
C2 LAN3_MDI0N
C4 LAN3_MDI1N
C6 LAN3_TCT
C8 LAN3_MDI2N
C10 LAN3_MDI3N
C12 3VSB
C14 LAN3_LINK100#
LAN4
Pin Definition
D1 LAN4_MDI0P
D3 LAN4_MDI1P
D5 LAN4_TCTG
D7 LAN4_MDI2P
D9 LAN4_MDI3P
D11 LAN4_LEDACT#
D13 LAN4_LINK1G#
MH4 CHASSIS_GND
17
Pin Definition
D2 LAN4_MDI0N
D4 LAN4_MDI1N
D6 LAN4_TCT
D8 LAN4_MDI2N
D10 LAN4_MDI3N
D12 3VSB
D14 LAN4_LINK100#
MH5 CHASSIS_GND
