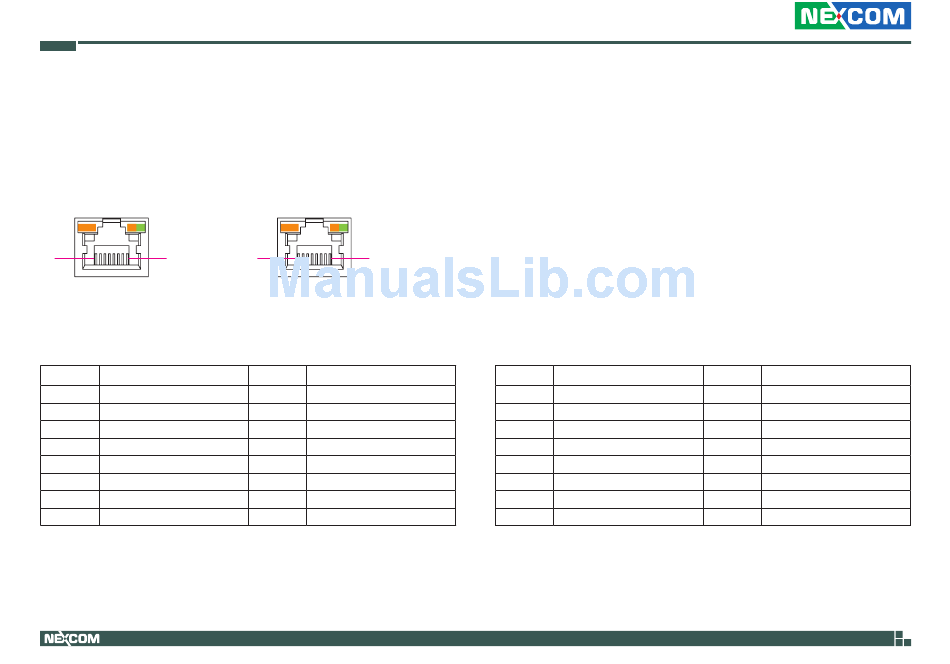

LAN1 to LAN2 Ports

Connector type: RJ45 port with LEDs
Connector location: LAN1
ACT LINK
A8 A1
LAN1
LAN1
Pin Definition
A1 LAN1_MDI0P
A3 LAN1_MDI1P
A5 LAN1_TCTG
A7 LAN1_MDI2P
A9 LAN1_MDI3P
A11 LAN1_LEDACT#
A13 LAN1_LINK1G#
MH1 CHASSIS_GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
ACT LINK
B8 B1
LAN2
Pin Definition
A2 LAN1_MDI0N
A4 LAN1_MDI1N
A6 LAN1_TCT
A8 LAN1_MDI2N
A10 LAN1_MDI3N
A12 3VSB
A14 LAN1_LINK100#
NH1 CHASSIS_GND
LAN2
Pin Definition
B1 LAN2_MDI0P
B3 LAN2_MDI1P
B5 LAN2_TCTG
B7 LAN2_MDI2P
B9 LAN2_MDI3P
B11 LAN2_LEDACT#
B13 LAN2_LINK1G#
MH2 CHASSIS_GND
16
Pin Definition
B2 LAN2_MDI0N
B4 LAN2_MDI1N
B6 LAN2_TCT
B8 LAN2_MDI2N
B10 LAN2_MDI3N
B12 3VSB
B14 LAN2_LINK100#
NH2 CHASSIS_GND
