PDC 2000/3000 Repair Manual Testing&Adjustment
Neutral Density
Macbeth Color
Diorama
Filter
Checker Chart
Bench
Auxiliary
Resolution
Strobe
Chart
Camera Power
Supply
Power Computing
Power PC
PDC 2000/3000
Camera
Diorama
Camera
Camera Nest
SCSI Cable

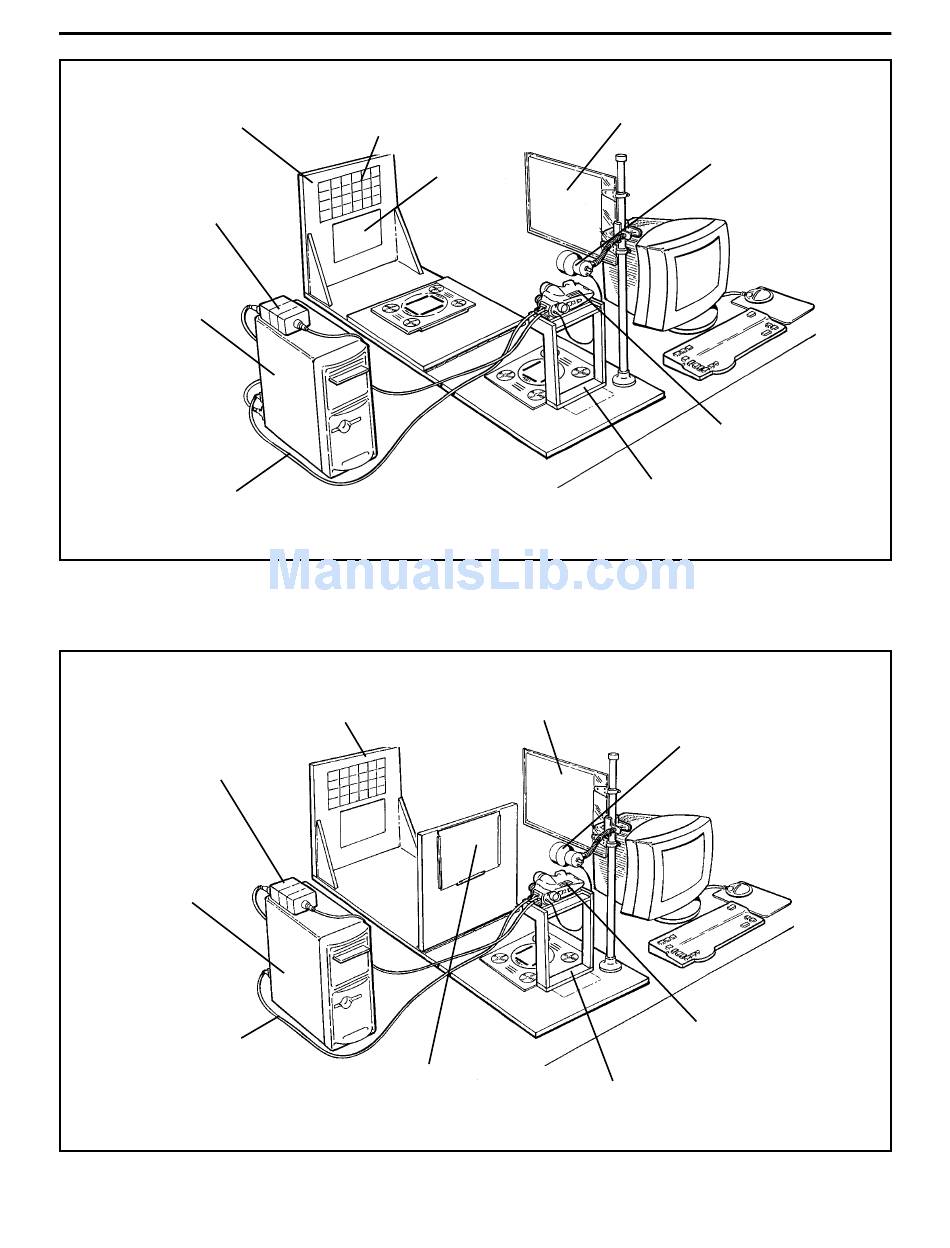

Figure 3-4. Color and focus test ( )
macbeth color checker chart
Diorama
Neutral Density
Bench
Filter
Auxiliary
Strobe
Camera Power
Supply
Power Computing
Power PC
PDC 2000/3000
Camera
Camera
SCSI Cable
Checker/Resolution
Diorama
Target
Camera Nest
Figure 3-5. Color and focus test (checker/resolution target in front of camera)
