5. IP Network Interfaces
5.4.1. Configuring IP Address Source and ProxyARP for Non-switched
Interfaces
IP addresses on routable ports are static by default. To change the IP address of the port to dynamic,
follow the procedure below. ProxyARP can also be enabled using this form.

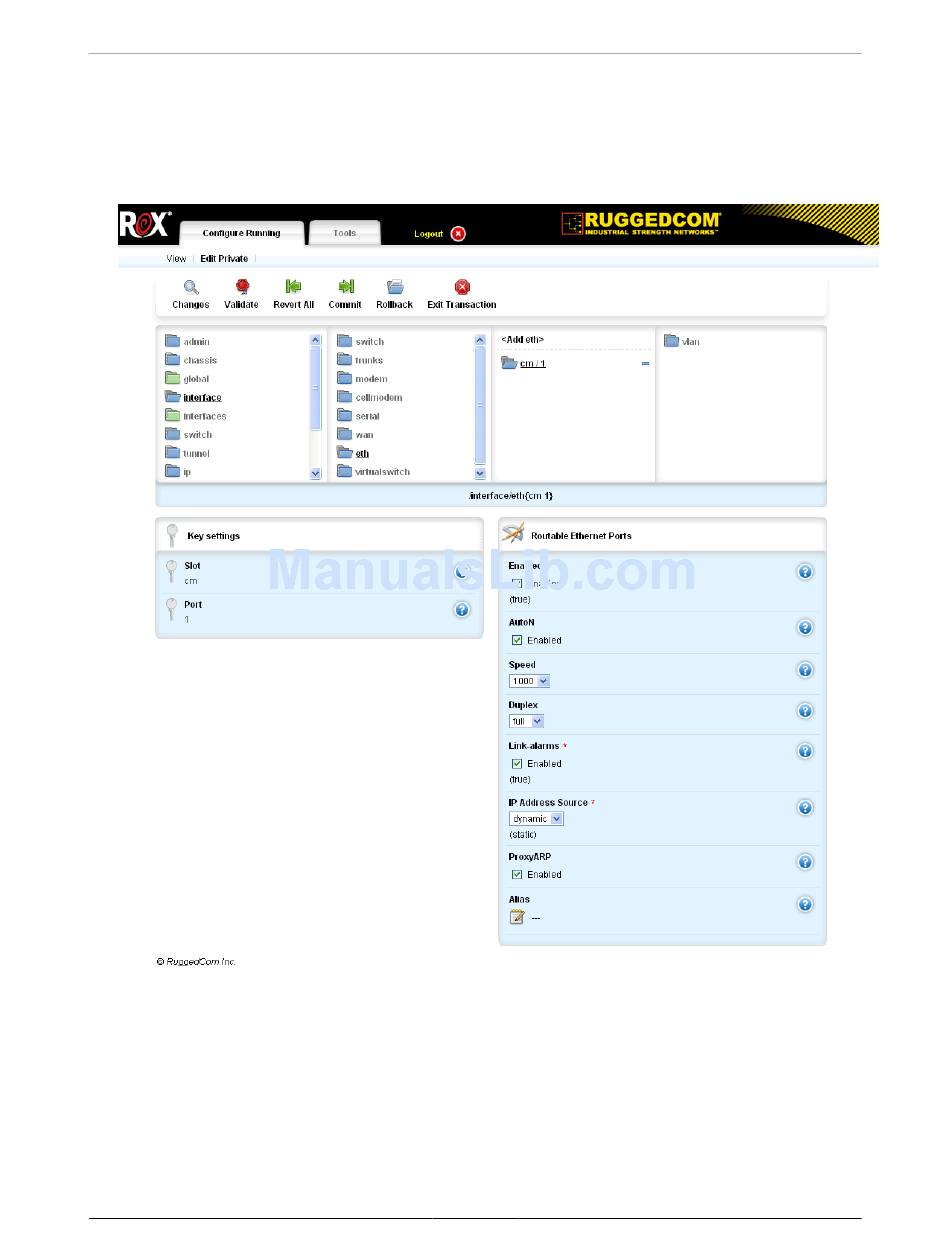

Figure 5.10. Configuring Dynamic Address Source and ProxyARP
Procedure 5.8. Configuring IP Address Source and ProxyARP for Non-switched Interfaces
1. Go into Edit Private mode.
2. Go to interface/eth/(port}. The Routable Ethernet Ports form appears.
3. In the IP Address Source field, select dynamic if you want the interface to get an IP address from
a DHCP server. For information on configuring RX1500 as a DHCP server, see
Server. To assign a static IP address to an interface, see
ROX™ v2.2 User Guide
Chapter 4, Basic Network
87
Chapter 15, DHCP
Configuration.
RuggedBackbone™ RX1500
