22. Serial Protocols
turnaround
Synopsis: integer
Default:
The amount of delay (if any) to insert between the transmissions of individual messages out the
serial port
call-direction
Synopsis: string - one of the following keywords { both, out, in }
Default: out
Whether to accept an incoming connection, place an outgoing connection or do both
max-connection
Synopsis: integer
Default: 1
The maximum number of incoming connections to permit when the call direction is incoming.
remote-ip
Synopsis: IPv4 address in dotted-decimal notation
The IP address used when placing an outgoing connection.
remote-port
Synopsis: integer
The TCP destination port used in outgoing connections
local-port
Synopsis: integer
The local TCP port to use to accept incoming connections.

22.2.3. Setting TcpModbus

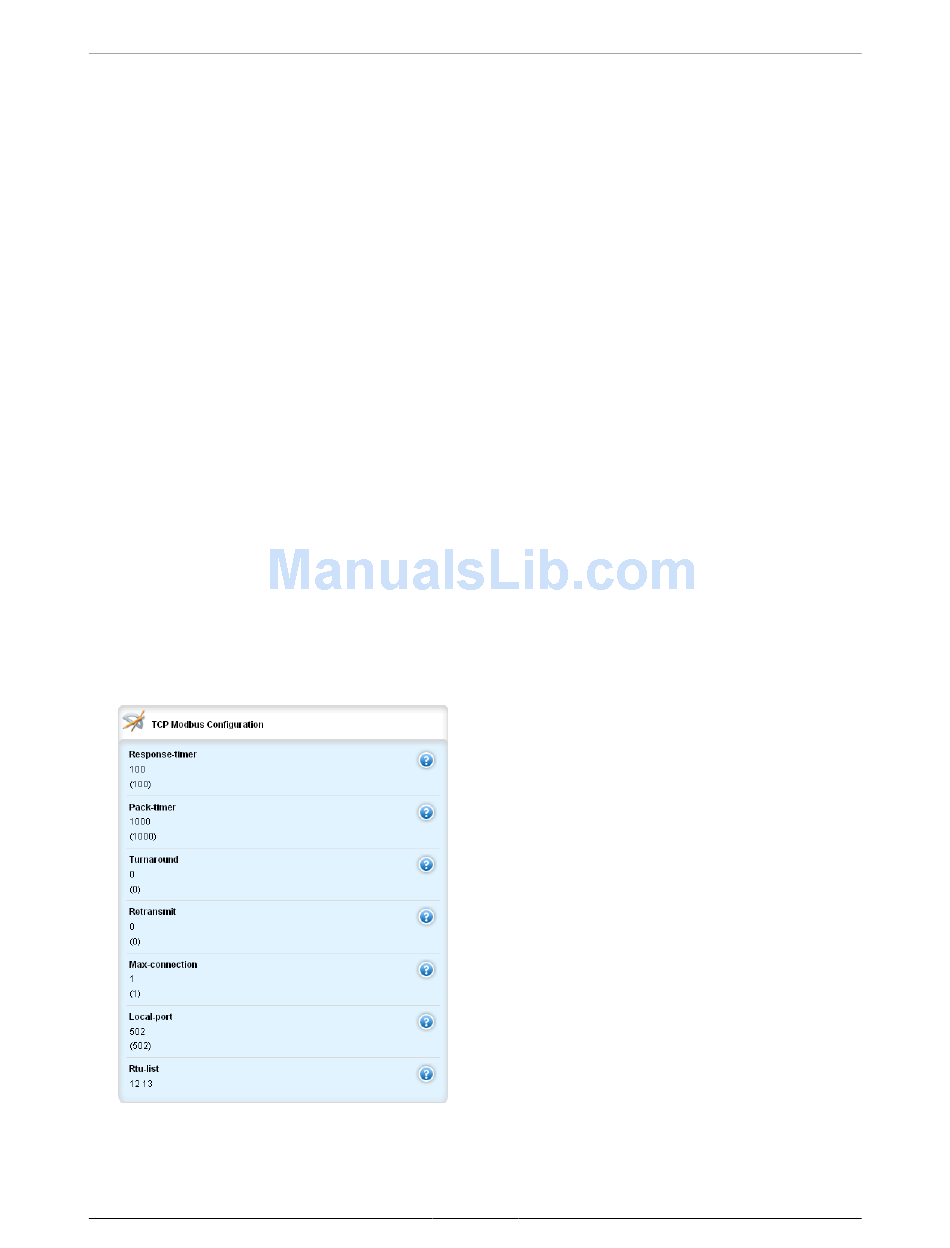

Figure 22.10. TCP Modbus Configuration form
ROX™ v2.2 User Guide 229 RuggedBackbone™ RX1500
