24. Port Security
24.1.2.1. RADIUS

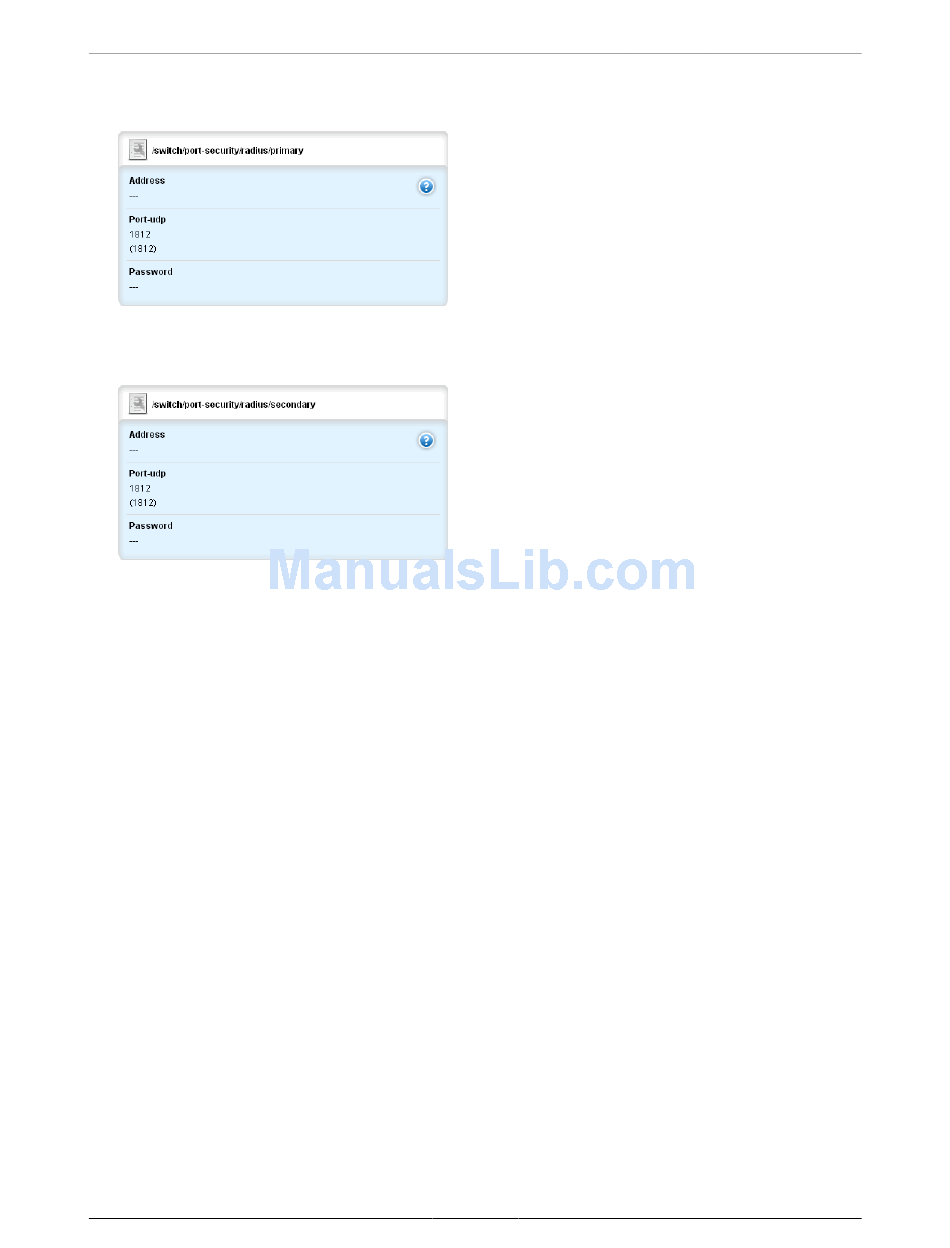

Figure 24.3. Port Security RADIUS Primary form
The path to the Port Security RADIUS Primary form is switch/port-security/radius.
Figure 24.4. Port Security RADIUS Secondary form
The path to the Port Security RADIUS Secondary form is switch/port-security/radius.
address
Synopsis: IPv4 address in dotted-decimal notation
The IPv4 address of the server
UDP Port
Synopsis: integer
Default: 1812
The IPv4 port of the server
password
Synopsis: "AES CFB128"-encrypted string
The password of the server
RADIUS servers can be configured for port security. For more information on RADIUS, please see
Section 10.1, "RADIUS"

24.2. Port Security Configuration

To display the Port Security menu, Port Security form, and 802.1x Parameters form, navigate to
interface/switch/{line module}/port-security.
ROX™ v2.2 User Guide 270 RuggedBackbone™ RX1500
