Configured Forward Delay
Synopsis: integer
The configured Forward Delay time from the Bridge RSTP Parameters menu.
Learned Forward Delay
Synopsis: integer
The actual Forward Delay time provided by the root bridge as learned in configuration messages.
This time is used in designated bridges.
Configured Max Age
Synopsis: integer
The configured Maximum Age time from the Bridge RSTP Parameters menu.
Learned Max Age
Synopsis: integer
The actual Maximum Age time provided by the root bridge as learned in configuration messages.
This time is used in designated bridges.
Total Topology Changes
Synopsis: unsigned integer
A count of topology changes in the network, as detected on this bridge through link failures or as
signaled from other bridges. Excessively high or rapidly increasing counts signal network problems.

28.5.2. Port RSTP Statistics

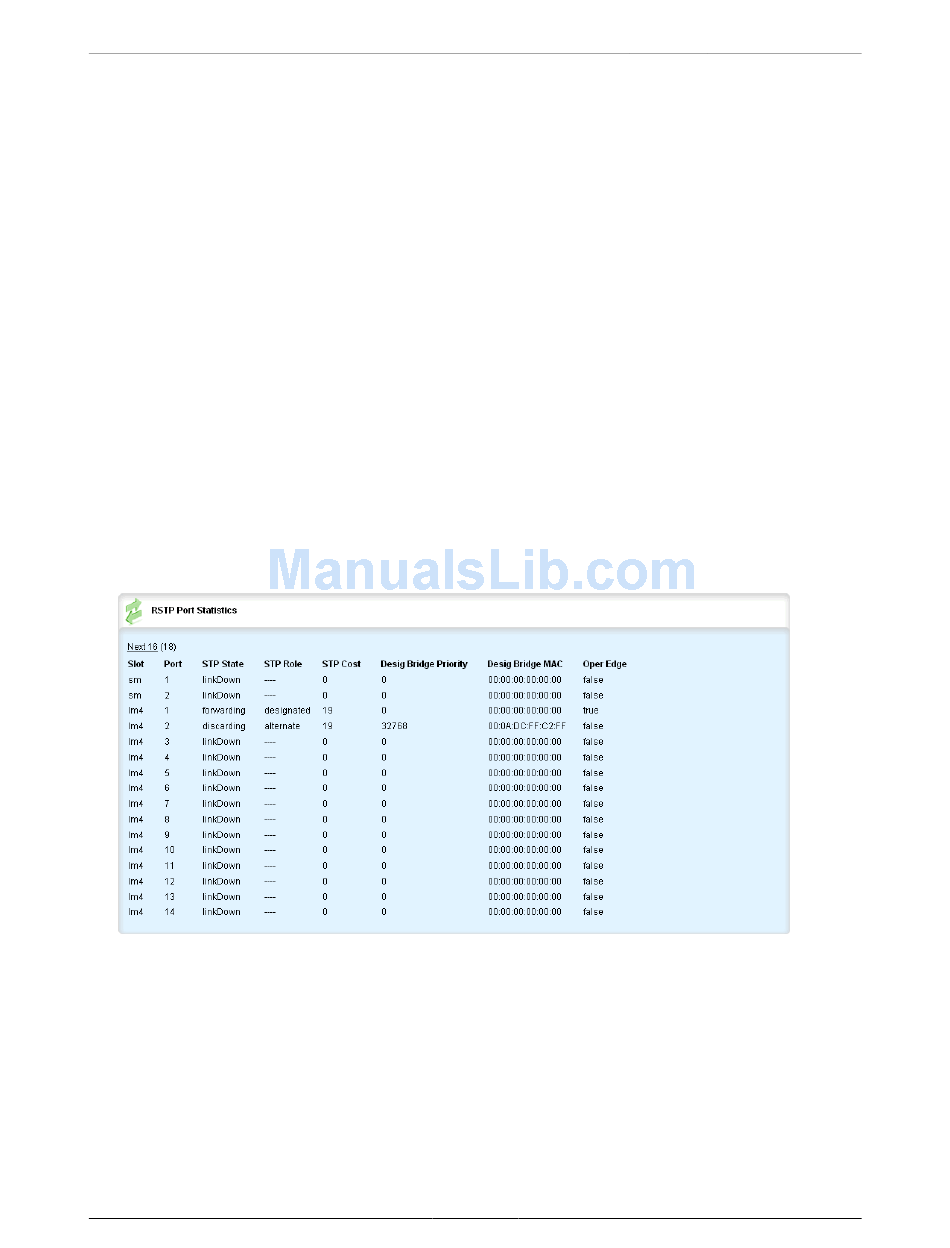

Figure 28.19. RSTP Port Statistics table
To display the RSTP Port Statistics table, navigate to switch/spanning-tree/port-rstp-stats.
