the format of the data signal. The CSU part of the DSU/CSU manages electrical levels and isolation, and
provides loopback to the TELCO. A RuggedCom DDS port provides an integrated DTE, DSU, and CSU.
23.4.1. DDS Configuration
To configure DDS, you must first enable the WAN interface supporting DDS. See
"Enabling the DDS WAN
Under /interface/wan{wan slot and port}/dds you can configure the following:
• set the DDS parameters. See
• set the DDS PPP connection parameters. See
Parameters".
• set the DDS frame relay and DLCI parameters. See
Parameters".
Under interfaces/wan, you can also:
• view and clear DDS statistics. See
• perform a DDS loopback test. See
23.4.1.1. Enabling the DDS WAN Interface
Before setting DDS parameters, you must first enable the WAN interface supporting DDS.
To enable the WAN DDS interface:
• In edit mode, navigate to /interface/wan{wan slot and port}.
• On the Enable Wan Interface form, select Enabled.

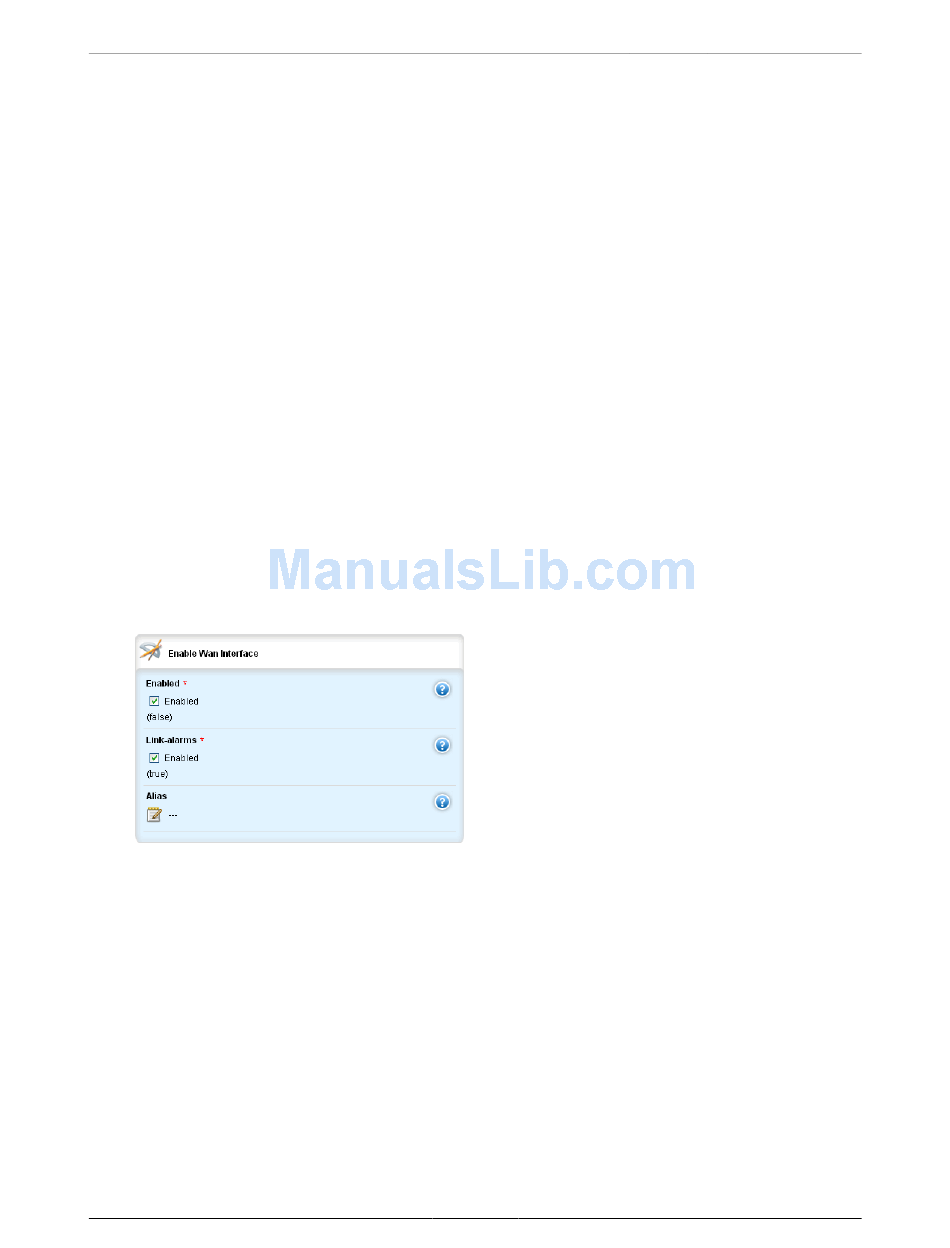

Figure 23.37. Enable Wan Interface form
• Commit the changes.
23.4.1.2. Setting DDS Parameters
To set DDS parameters, enter edit mode and navigate to /interface/wan{wan slot and port}/dds/
ddsparams.
ROX™ v2.2 User Guide
Interface".
Section 23.4.1.2, "Setting DDS
Section 23.4.2, "Viewing and Clearing DDS
Section 23.4.1.5, "Performing a DDS Loopback
262
Parameters".
Section 23.4.1.3, "Setting DDS PPP Connection
Section 23.4.1.4, "Setting DDS Frame Relay
RuggedBackbone™ RX1500
Section 23.4.1.1,
Statistics".
Test".
