35. Static Routing
The path to the Static Route Using Gateway form is routing/static/ipv4/{route}/via/{address}.
Gateway Address
Synopsis: IPv4 address in dotted-decimal notation
The gateway for the static route.
Distance (optional)
Synopsis: unsigned integer
The distance for the static route.

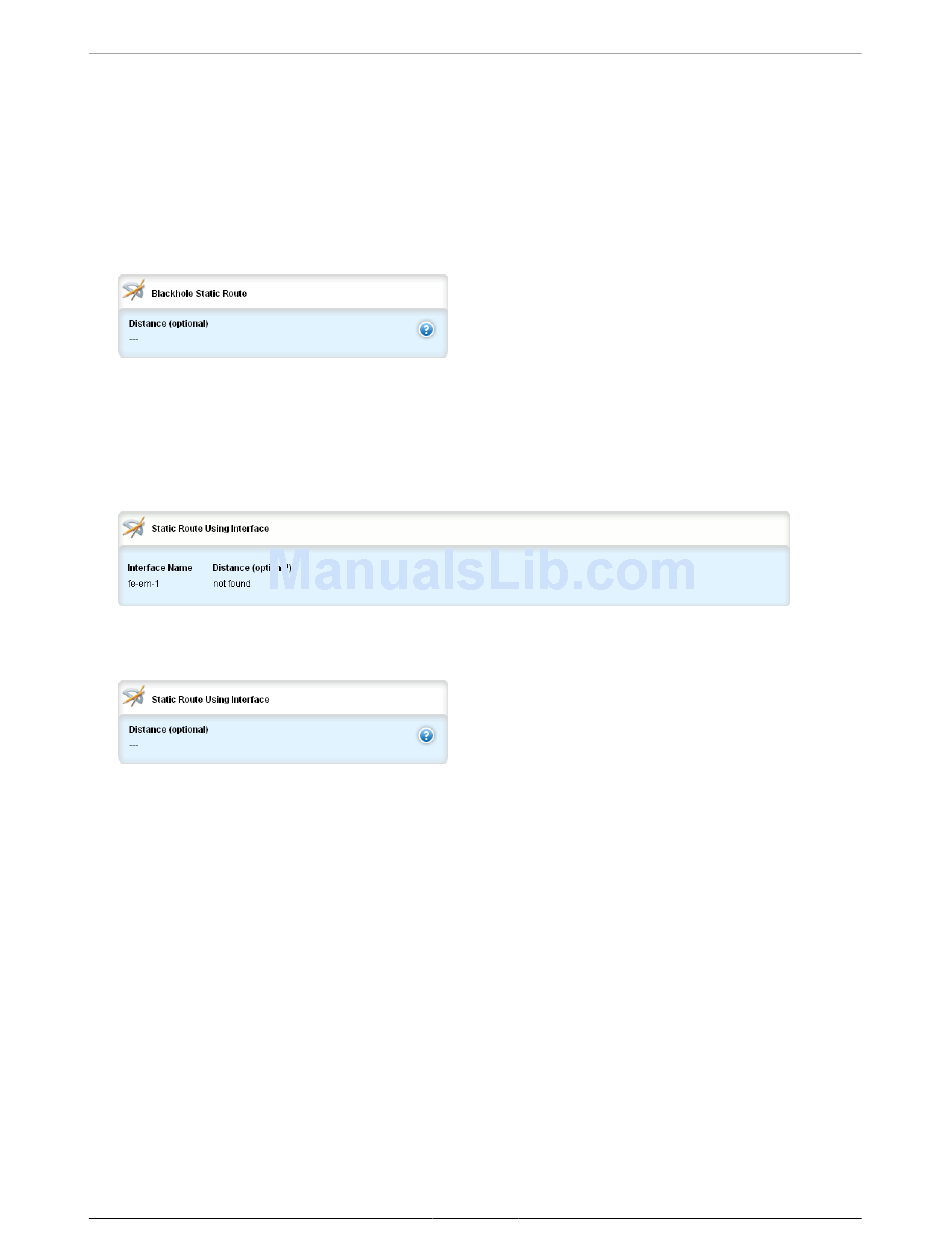

Figure 35.6. Blackhole Static Route form
The path to the Blackhole Static Route form is routing/static/ipv4/{route}/blackhole.
Distance (optional)
Synopsis: unsigned integer
The distance for the static route.
Figure 35.7. Static Route Using Interface table
The path to the Static Route Using Interface table is routing/static/ipv4/{route}/dev.
Figure 35.8. Static Route Using Interface form
The path to the Static Route Using Interface form is routing/static/ipv4/{route}/dev/{interface}.
Interface Name
Synopsis: A string
The interface for the static route.
Distance (optional)
Synopsis: unsigned integer
The distance for the static route.
ROX™ v2.2 User Guide 421 RuggedBackbone™ RX1500
