10. Authentication

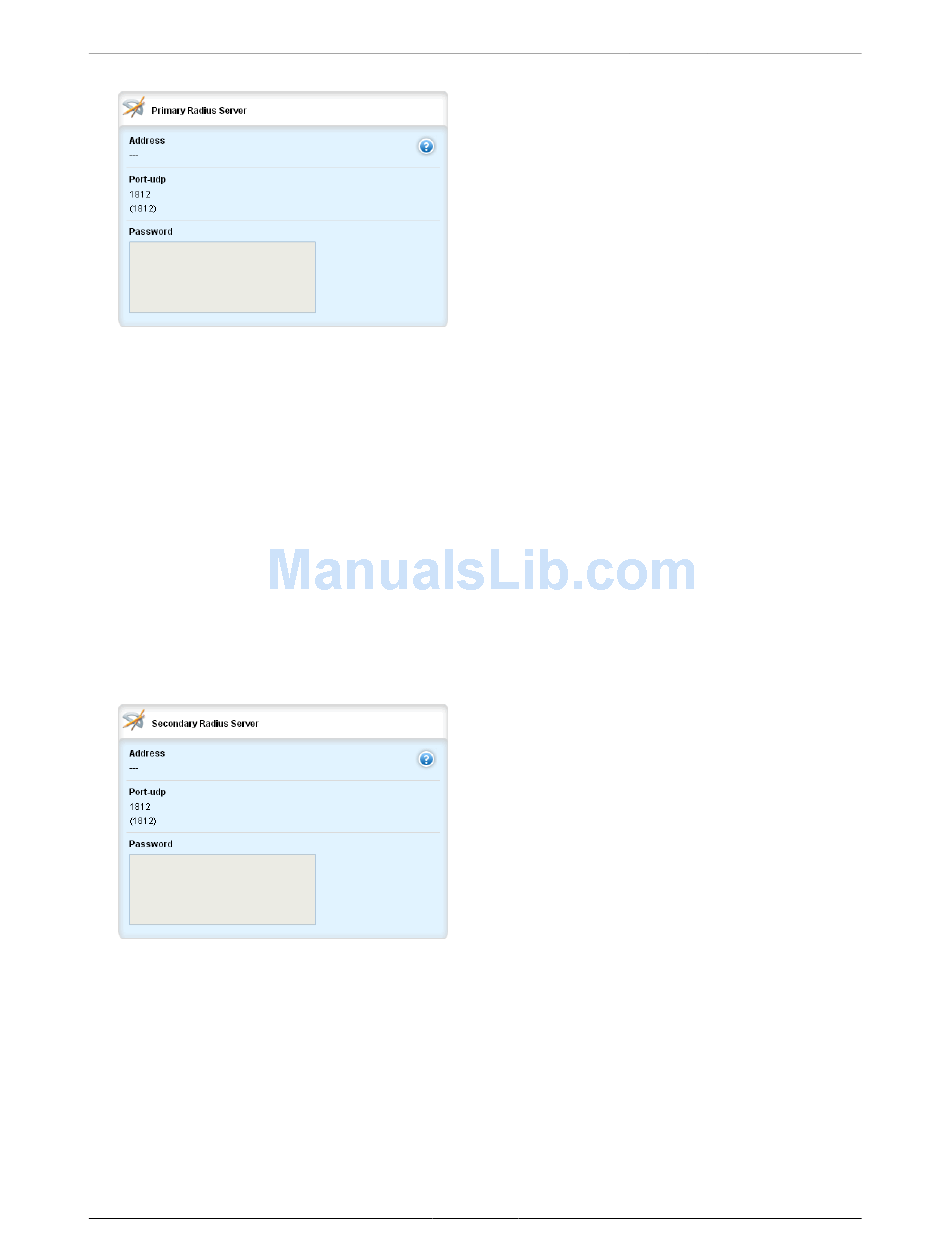

Figure 10.2. Primary RADIUS Server form
The Primary and Secondary RADIUS Server forms are accessible from the radius menu, which is a sub
menu of the authentication menu. The path to this menu is admin/authentication/radius. These forms
are also accessible from global/ppp/radius.
address
Synopsis: IPv4 address in dotted-decimal notation
The IPv4 address of the server
port-udp
Synopsis: integer
Default: 1812
The network port of the server
password
Synopsis: "AES CFB128"-encrypted string
The password of the RADIUS server
Figure 10.3. Secondary RADIUS Server form
address
Synopsis: IPv4 address in dotted-decimal notation
The IPv4 address of the server
port-udp
Synopsis: integer
Default: 1812
The network port of the server
ROX™ v2.2 User Guide 119 RuggedBackbone™ RX1500
