25. Multicast Filtering
The VLAN Identifier of the VLAN upon which the multicast group operates.
MAC Address
Synopsis: Ethernet MAC address in colon-separated hexadecimal notation
The multicast group MAC address.
25.3.2.2. Viewing IP Multicast Groups

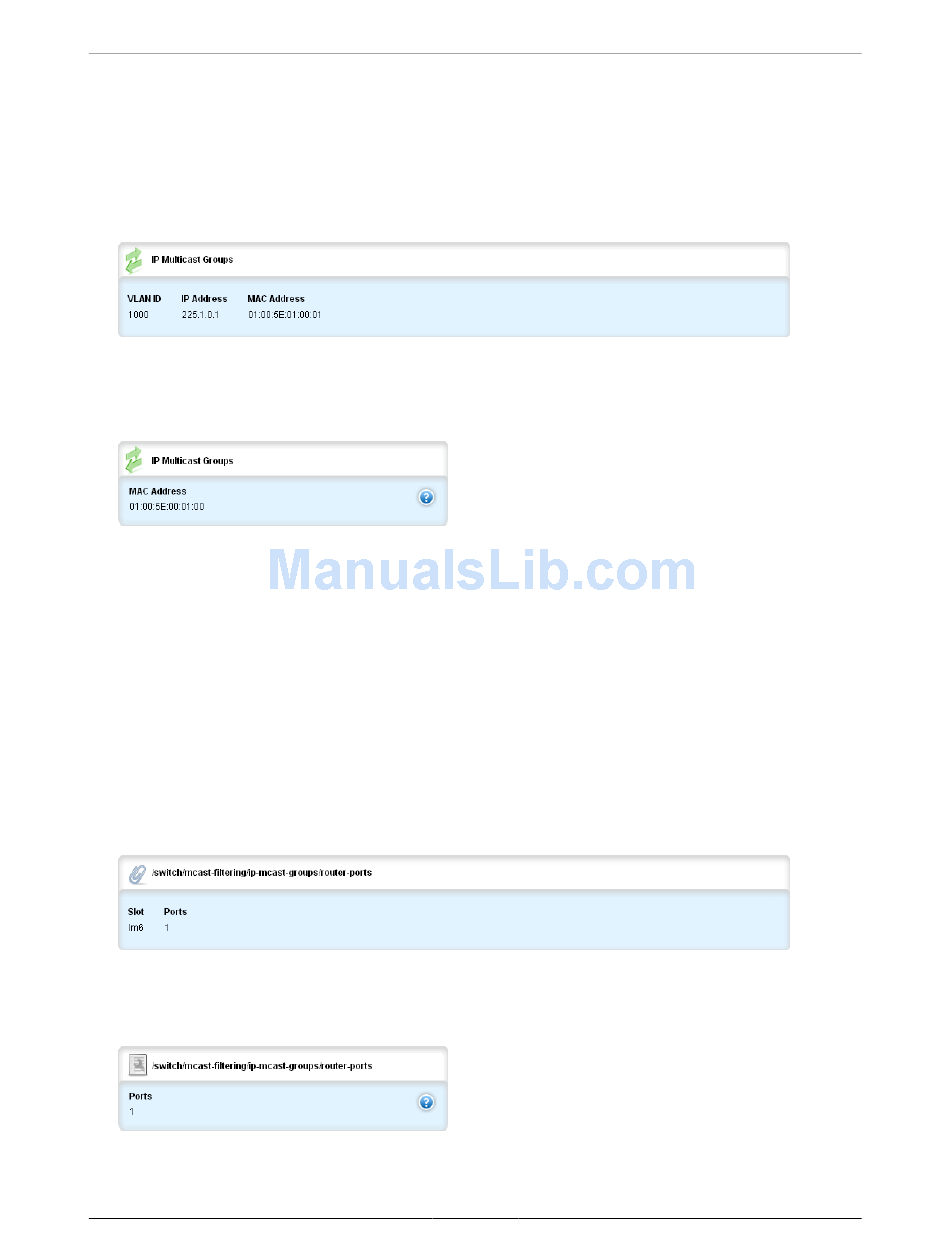

Figure 25.13. IP Multicast Groups table
The IP Multicast Groups table allows you to view IP Multicast Groups.
The path to this table is switch/mcast-filtering/ip-mcast-groups.
Figure 25.14. IP Multicast Groups form
The path to this form is switch/mcast-filtering/ip-mcast-groups and then clicking on one of the linked
submenus that follow.
VLAN ID
Synopsis: integer
The VLAN Identifier of the VLAN upon which the multicast group operates.
IP Address
Synopsis: IPv4 address in dotted-decimal notation
The multicast group IP address
MAC Address
Synopsis: Ethernet MAC address in colon-separated hexadecimal notation
The multicast MAC address corresponding to the group multicast IP address.
Figure 25.15. Router-Ports table
The path to this table is switch/mcast-filtering/ip-mcast-groups, then clicking on one of the linked
submenus that follow, and then clicking on router-ports.
Figure 25.16. Router-Ports form
ROX™ v2.2 User Guide
284
RuggedBackbone™ RX1500
