17. Ethernet Statistics
Distance, Long Distance or Very Long Distance with connectors like LC, SC, ST, MTRJ etc. For
the modules with SFP/GBICs, the media description is displayed per the SFF-8472 specification,
if the transceiver is plugged into the module. E.g. 10/100/1000TX RJ45, 100FX SM SC, 10FX MM
ST,1000SX SFP LC S SL M5.
Speed
Synopsis: string - one of the following keywords { 1000, 100, 10 }
Link speed (in Megabits-per-second or Gigabits-per-second)
Duplex
Synopsis: string - one of the following keywords { full, half }
Link duplex status.
MTU
Synopsis: integer
MTU (Maximum Transmission Unit) value on the port.
MAC
Synopsis: Ethernet MAC address in colon-separated hexadecimal notation
The MAC address of the port.
Link State
Synopsis: string - one of the following keywords { lowerLayerDown, notPresent, dormant,
unknown, testing, down, up }
Link status.

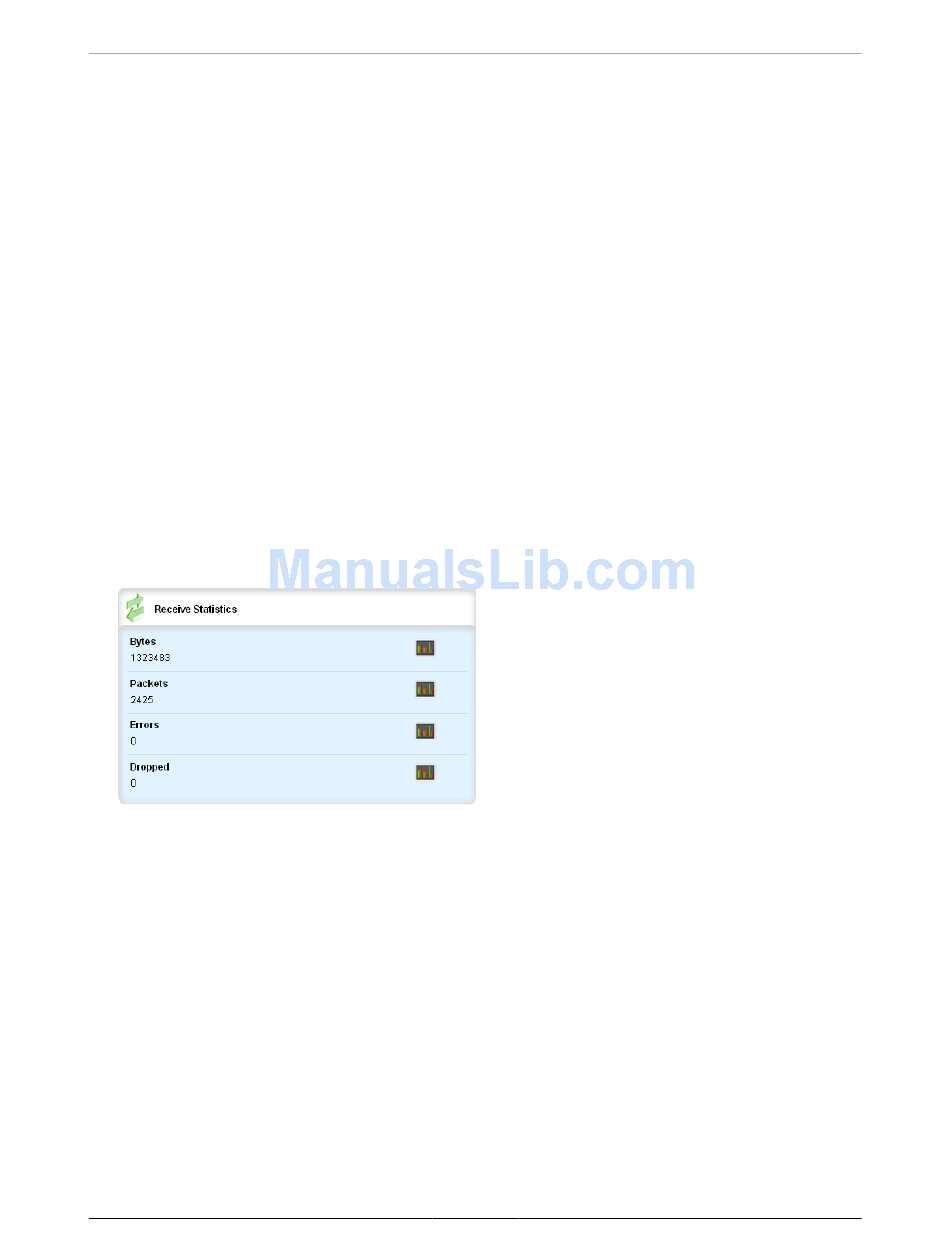

Figure 17.6. Receive Statistics Form
Bytes
Synopsis: unsigned long integer
Number of bytes received.
Packets
Synopsis: unsigned long integer
Number of packets received.
Errors
Synopsis: unsigned integer
Number of error packets received.
Dropped
Synopsis: unsigned integer
Number of dropped packets by the receive device.
ROX™ v2.2 User Guide 180 RuggedBackbone™ RX1500
