32. Layer 3 Switching

32.2. Configuring Layer 3 Switching

To display the Layer 3 Switching menu, navigate to switch/layer3-switching.

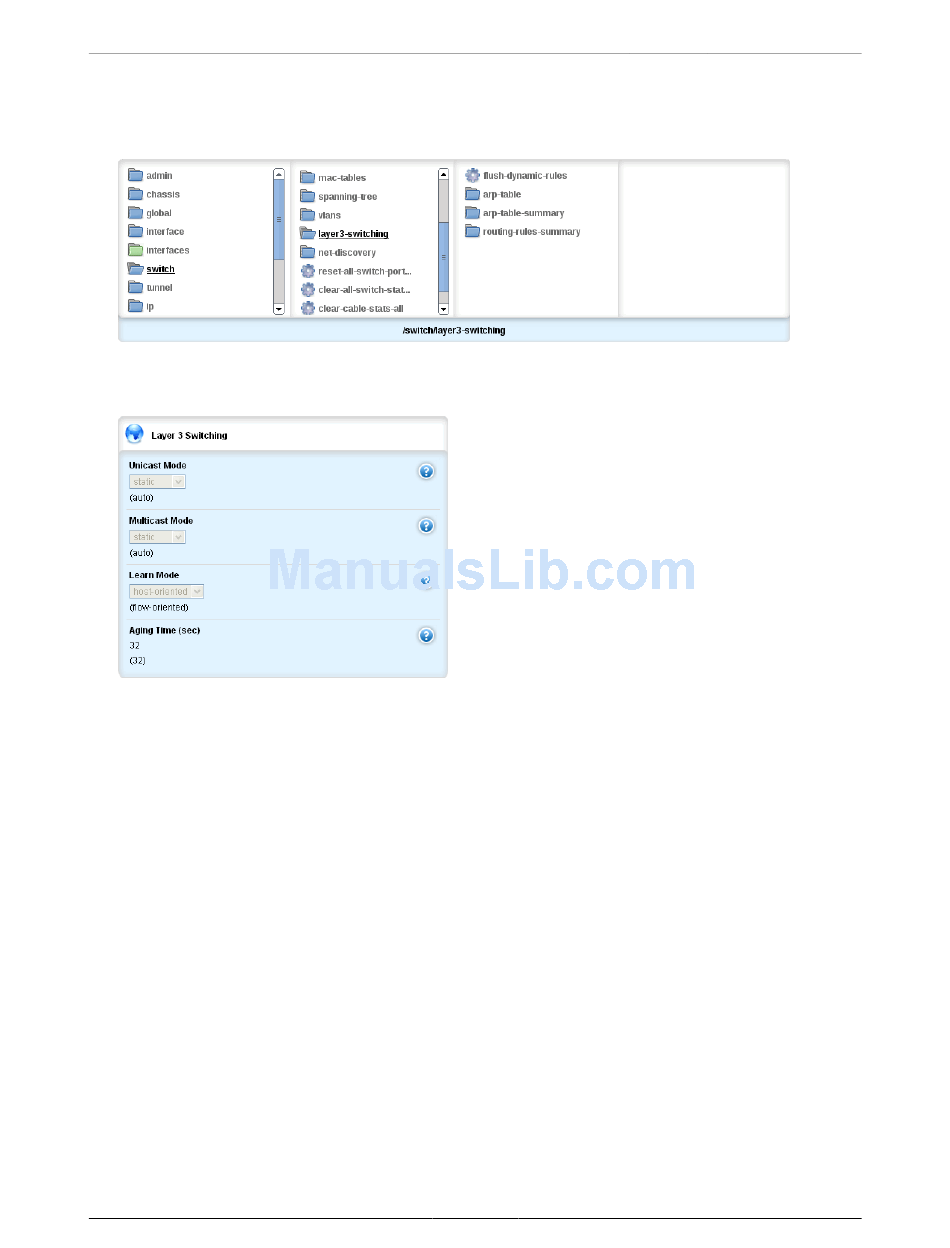

Figure 32.5. Layer 3 Switching menu
The Layer 3 Switching form on the menu page displays the configured Layer 3 switching settings.
Figure 32.6. Layer 3 Switching form
To configure Layer 3 switching, do the following:
• set the Layer 3 switching settings. See
• create static ARP table entries. See
After configuring Layer 3 switching, you can do the following:
• view static and dynamic ARP table entries. See
Table Entries".
• view the routing rules summary. See
• flush dynamic hardware routing rules. See
Rules".
ROX™ v2.2 User Guide
Section 32.2.1, "Configuring Layer 3 Switching
Section 32.2.2, "Creating Static ARP Table
Section 32.2.3, "Viewing Static and Dynamic ARP
Section 32.2.4, "Viewing Routing
Section 32.2.5, "Flushing Dynamic Hardware Routing
362
Settings".
Entries".
Rules".
